CHAPTER 2 DIAGNOSTICS
Main Menu
Diagnostic Menu, continued

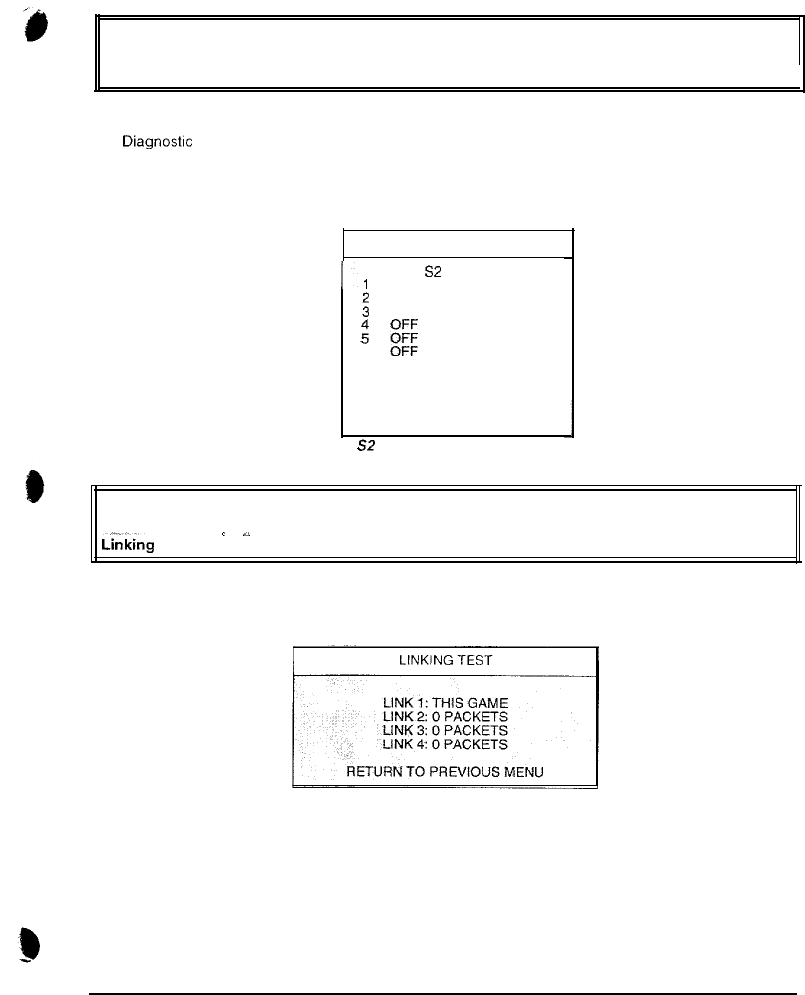

DIP Switch Test
DIP SWITCH TEST
To verify proper DIP switch setting use the Volume Up or Volume Down button to select DIP Switch Test at
the Diagnostic Menu, then press the Test button.
The current settings will appear on-screen. The default switch position for switch one through 8 is OFF for
standard operation. For information about DIP Switch settings refer to Chapter 5: Wiring.
I
DIP SWITCH TEST
I1 s2 OFF
z
OFF
OFF
iz ;g
6
7 OFF
8 OFF
BOOT GAME
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
PRESS ENTER TO EXIT
52 DIP SWITCH SCREEN
Main Menu
Diagnostic Menu, continued
Linking Test i “.
LINKING TEST
To verify communications between a game machine and others linked to it use the Volume Up or Volume
Down button to select Linking Test at the Diagnostic Menu. then press the Test button.
This diagnostic runs automatically and will display results on-screen
To return to the submenu, select Return to Previous Menu and press the Test button; to return to the Main
Menu scroll to Back To Previous Menu and cress the Test button.
ARCTIC THUNDER
15
