E-Panels Explained

The Magnum Energy 240VAC E-Panel for MS and RD series
This is our flagship E-Panel. It encompasses every suggestion and update we are aware of. It also accommodates the
new Magnum Energy MS4448-AE and MS4024-AE inverters. These inverters are a true 120/240 input and output.
Unlike the regular Magnum MS and RD series that have a second 120VAC pass through leg, these inverters are like
having a stacked pair of inverters. It will charge from either a 120VAC source or a 240VAC source. The output is
120/240 just like the utility grid. Compare this system with a stacked pair of inverters (from any company) and you will
realize thousands of dollars of savings!
Features:
White steel chassis to match the MS series
Black and red AC input terminal busbars
Black and red AC output terminal busbars
Red terminal bus bars for PV+ and Bat+
Six additional din rail slots
500A shunt
Ground Busbar
Remote bracket
Wall mounting brackets
Inverter cables
Charge control mounting bracket
120/240 AC bypass switch pre-wired
120/240 AC input disconnect pre-wired
Model numbers:
MNE175STM-L-240 (for MS4448-AE)
MNE250STM-L-240 (for MS4024-AE)
Change –L to –R for right hand hinge.
Price $799.00
The Lite Series
Generic E-Panels for SW, DR or what have you? These
do not include inverter cables or charge control brackets.
All Lite’s come with left hand doors only, but can have the breakers
exit either side. Special Lite’s can be made using the wide Magnum
sized chassis also. Call for models and pricing.
Model numbers
Specify –L or –R for breaker placement
MNE125LT $419
MNE175LT $459
MNE250LT $459
MNE125ALT $459
MNE175ALT $499
MNE250ALT $499
Apollo kit 240 $69

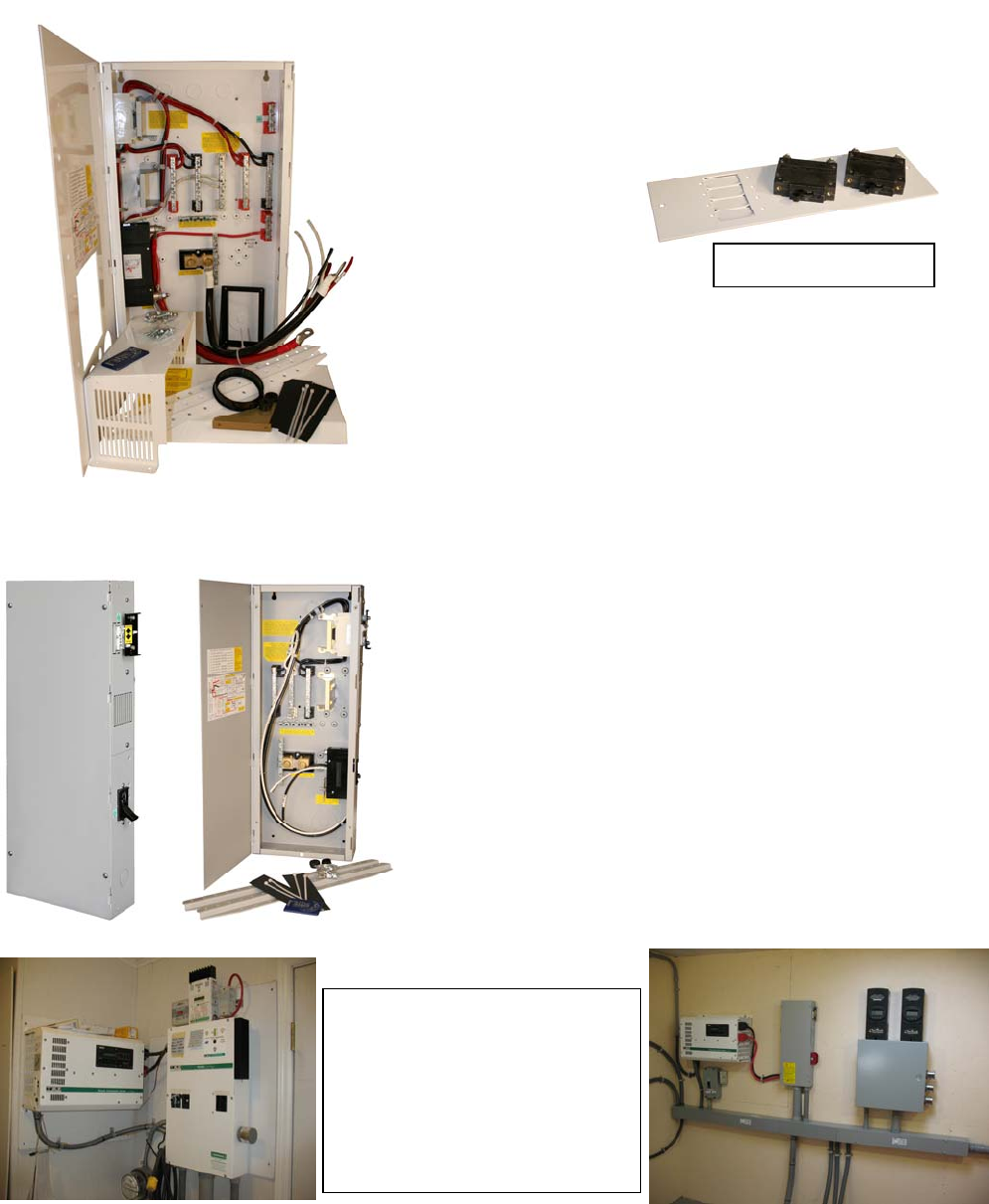

(Left) A BLM installation
from the 1990’s.
(Right) The same installation
redone in 2007 by John
Raynes using the MidNite
Lite.
