User Manual

 A suitable Main Gas Pressure Regulator should be installed as shown in Figures 1 or 2

Choose a regulator(s) to adjust the available gas pressure to the pressure shown in SPECI-

FICATIONS, page 2.

CAUTION: The regulated gas pressures must not exceed 14"W.C. or Main

Automatic Gas Valve and Ignitor Regulator will be damaged. If excessive gas pressure

is prevalent, the regulator must be a tight shut-off type to prevent high pressures from

developing during stand-by.

Part 1 Installation

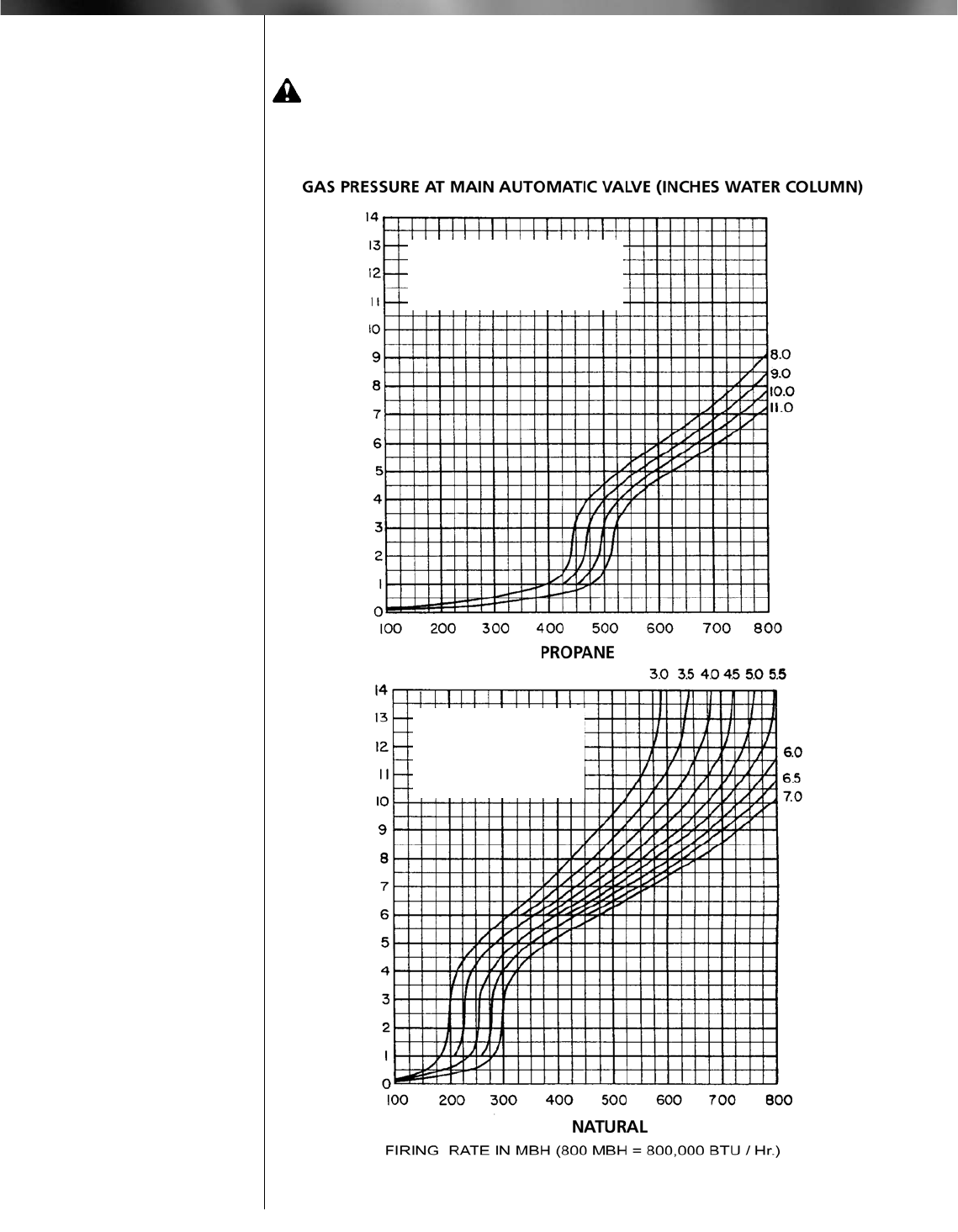

Table 2: Firing Rate Curves

V Piping Continued

PROPANE Gas

2,500 BTU / Cu. Ft.

(with 5/8" Main Gas Port)

NATURAL Gas

1,000 BTU / Cu. Ft.

(with Main Gas Tube

only, no Gas Port)

Manifold Gas Pressure in Inches W. C.

Input in MBH

Input Adjuster Setting in Number of Turns From Full Closed

Manifold Gas Pressure in Inches W. C.
