User Guide

The following list of features is based upon the thirty-two channel frame size console.
24 mono input channels
8 stereo input channels
8 Auxiliary Outputs
1 through 6 with Global Pre/Post Fader selection and selectable Pre/Post EQ
7 & 8 with Channel selectable Pre/Post Fader selection and jumper selectable Pre/Post EQ
For jumper selection configurations, contact you local Midas service agent.
8 Group Outputs
With Aux/Group Changeover option for dual purpose FOH/Monitor applications
4 Band Equaliser
Mono Channels: 4 Swept Frequency Bands (Treble, Hi Mid, Lo Mid, Bass)
Stereo Channels: 2 Shelving Bands (Bass, Treble), 2 Swept Frequency Bands (hi mid, lo mid)
48 volt phantom power independantly switchable on each channel (always on talk mic)
Hi-Pass filter on all inputs (Mono Channels: Variable 20Hz to 400Hz, Stereo Channels: Fixed 80Hz)
Signal Generator
32 Channel Inserts (jumper selectable pre/post insert and eq)
Microphone XLR(f) 1k5 ohm Yes Variable (+21dBu) 32
Direct Input 1/4” TRS Jack 10k ohm Yes Variable (+26dBu) 4
Direct Out 1/4” TRS Jack 100 ohm Impedance Bal. 0dBu (
Auxiliary XLR(m) 50 ohm Yes 8
Matrix XLR(m) 50 ohm Yes 4
Talk Out XLR(m) 50 ohm Yes 1
Master Out XLR(m) 50 ohm Yes 3 (LCR)
Monitor Out XLR(m) 50 ohm Yes 2 (LR)
PFL Out XLR(m) 50 ohm Yes 1 (M)
Tape Out RCA Phono 600 ohm No -1 2
Headphones 1/4” TRS Jack To drive headphones > 100 ohm +1 1
Input 1/4” TRS Jack 50/10k ohm (s/r) No 32
Group
Master
The thirty-two channel Verona features:
Type Connector Impedance Balanced No.
Inputs
Out
Inserts
Level Nom (max)
puts
M Ch Line Input 1/4” TRS Jack 10k ohm Yes Variable (+36dBu w/pad) 24
MF Ch Line Input 1/4” TRS Jack 10k ohm Yes Variable (+26dBu) 16
Tape Input RCA Phono 47k ohm No -10dBu (+26dBu) 2
Talk Mic XLR(f) 1k5 ohm Yes Variable (+6dBu) 1
Talk Input XLR(f) 10k ohm Yes 0dBu (+26dBu) 1
+21dBu) 24
Groups XLR(m) 50 ohm Yes 0dBu (+21dBu) 8
0dBu (+21dBu)
0dBu (+21dBu)
0dBu (+21dBu)
0dBu (+21dBu)
0dBu (+21dBu)
0dBu (+21dBu)
0dBu (+11dBu)
0dBu (+21dBu)
0dBu (+21dBu) (send/ret)
1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 8
1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 3
Total XLR input count 34
Total Jack input count 44
Total RCA Phono input count 2
Total XLR output count 27
Total Jack output count 25
Total RCA Phono output count 2
Total insert count 43

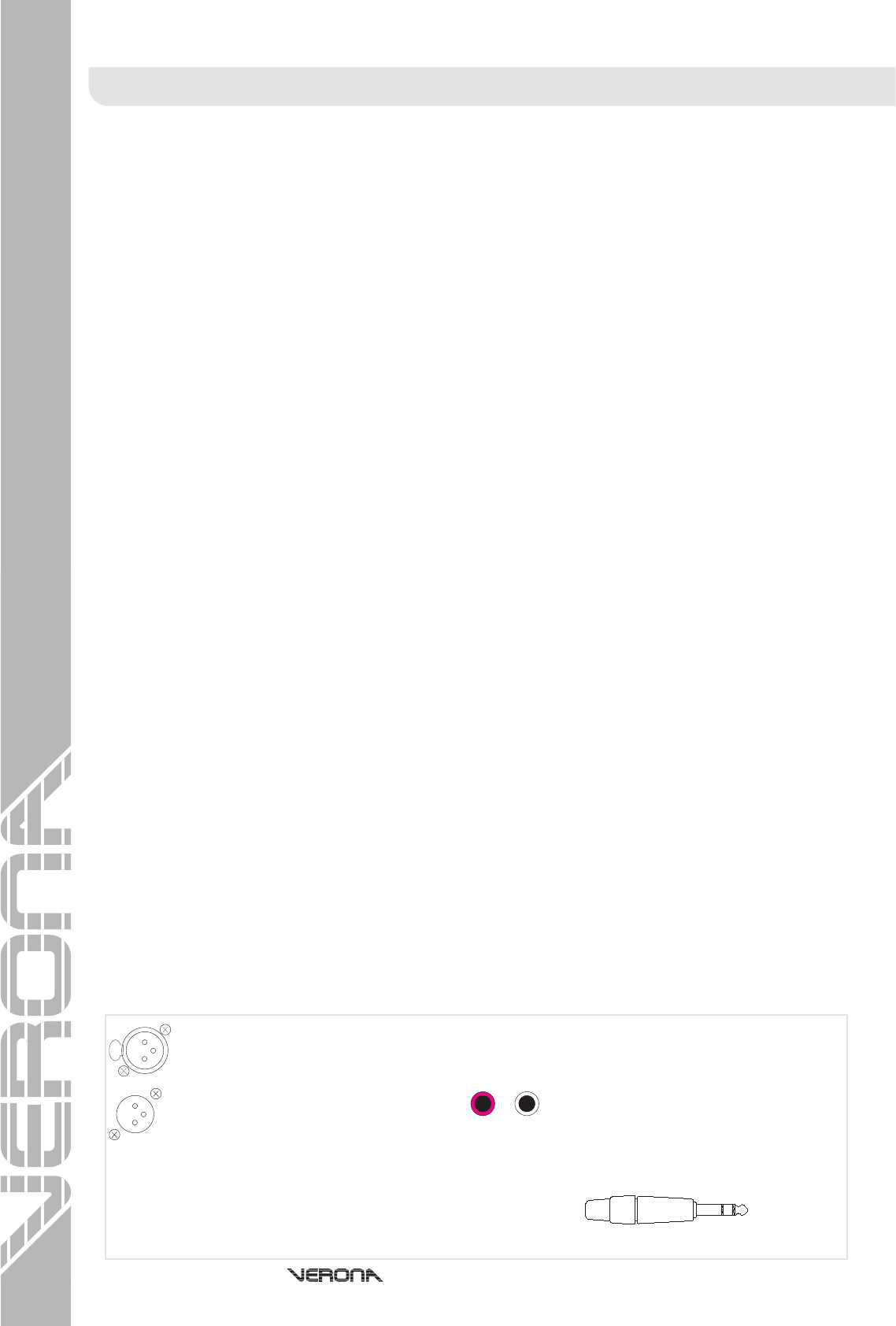

Quarter Inch Jack
TRS Signal TRS Insert TRS Headphone
Sleeve Screen/Ground Screen/Ground Screen/Ground
Ring Cold Signal Insert Return Right
Tip Hot Signal Insert Send Left
Verona FeaturesVerona Features
RCA (Tape In/Out)
Centre (Tip) - Signal
Surround (Sleeve) - Screen
XLR
Pin 1 - Screen/Ground
Pin 2 - Hot Signal
Pin 3 - Cold Signal
Note: Sockets are viewed from the front
face.
1
1
2
2
3
3
Operators Manual - Page 44
