The Verona provides eight independent auxiliary outputs
which are controlled in this section.
- The group auxiliary
changeover is described at the beginning of
this section. When depressed, group signals
will be controlled in this section and hence aux
should be mentally interchanged with ‘group’.
- The auxiliary pre switch is the global control which determines whether the auxiliary is taken from the
input channel pre fader or post fader. This switch can be found on each of the auxiliaries 1 through 6. On aux 7 and
8 these are assignable individually pre/post on the channel modules.
Group Aux C/O
Aux Pre
Pre-Fade
Post-Fade
Application Pre/Post Fade Reason
.
Auxiliary Master Level
Auxiliary Mute
Auxiliary Solo
auxiliary (aux) sends are sourced after the channel Insert, Mute and EQ but before the channel fader
(and EQ on 1-6 if the Aux Pre EQ switch is depressed). As a result, the actual level sent to the aux buss is
proportional to the aux send control only.
aux sends are sourced after the channel Insert, Mute, EQ and channel Fader. As a result, the actual
level sent to the aux buss is proportional to the aux send control AND the channel fader.
Typical uses of auxiliaries are:
Stage Monitors Pre (Post-EQ) The level in the monitor stays constant so that
the engineer can change the FOH level without
affecting the performer.
Effects Sends Post The level sent to the effects is proportional to
the level on the fader so the balance between
wet (processed) and dry (un-processed) sound
stays the same even when the channel level is
changed
Multi Track Recording Pre (Pre-EQ) The recording is made at constant level without
or Monitors from FOH any equalisation so that changes in the mix level
and EQ can be set in post-production. (You can
also use the Direct Out for this but the output
will be at unity).
Mixed Recording Post (Post-EQ) If the aux is set to unity, the FOH mix is
(for the artist) replicated on the aux output including EQ but
excluding PAN
- The output level of the auxiliary is continuously variable from off (-
inf) to +10dB.
- When depressed, the auxiliary signal is muted at every point after the master
send level.
- When depressed, the auxiliary signal is sent to the stereo AFL and mono PFL
busses.
Verona Aux OutputsVerona Aux Outputs
aux
aux
c/o
pre
group
Operators Manual - Page 23
Rear Panel
Front Panel
+10
0
aux 1
SOLO
MUTE
aux out aux out aux out aux outaux out aux out aux out aux out
86427531

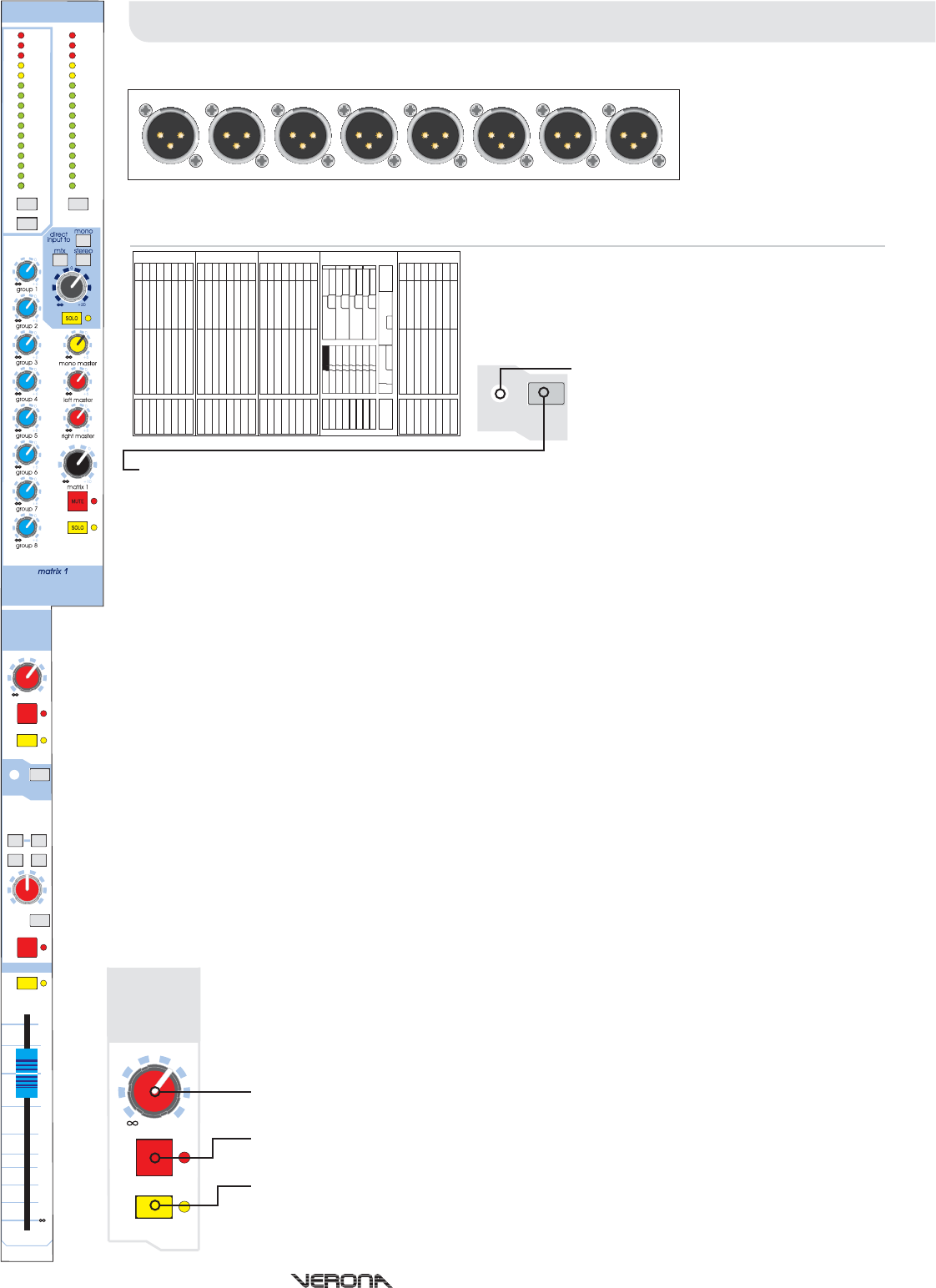

The Verona’s auxiliary
outputs can be found on the
rear of the console.
Eight male XLR sockets are
provided, one for each
auxiliary output.
XLR Wiring
Pin 1 - Shield, Pin 2 - Hot Signal, Pin 3 - Cold Signal
