User Guide

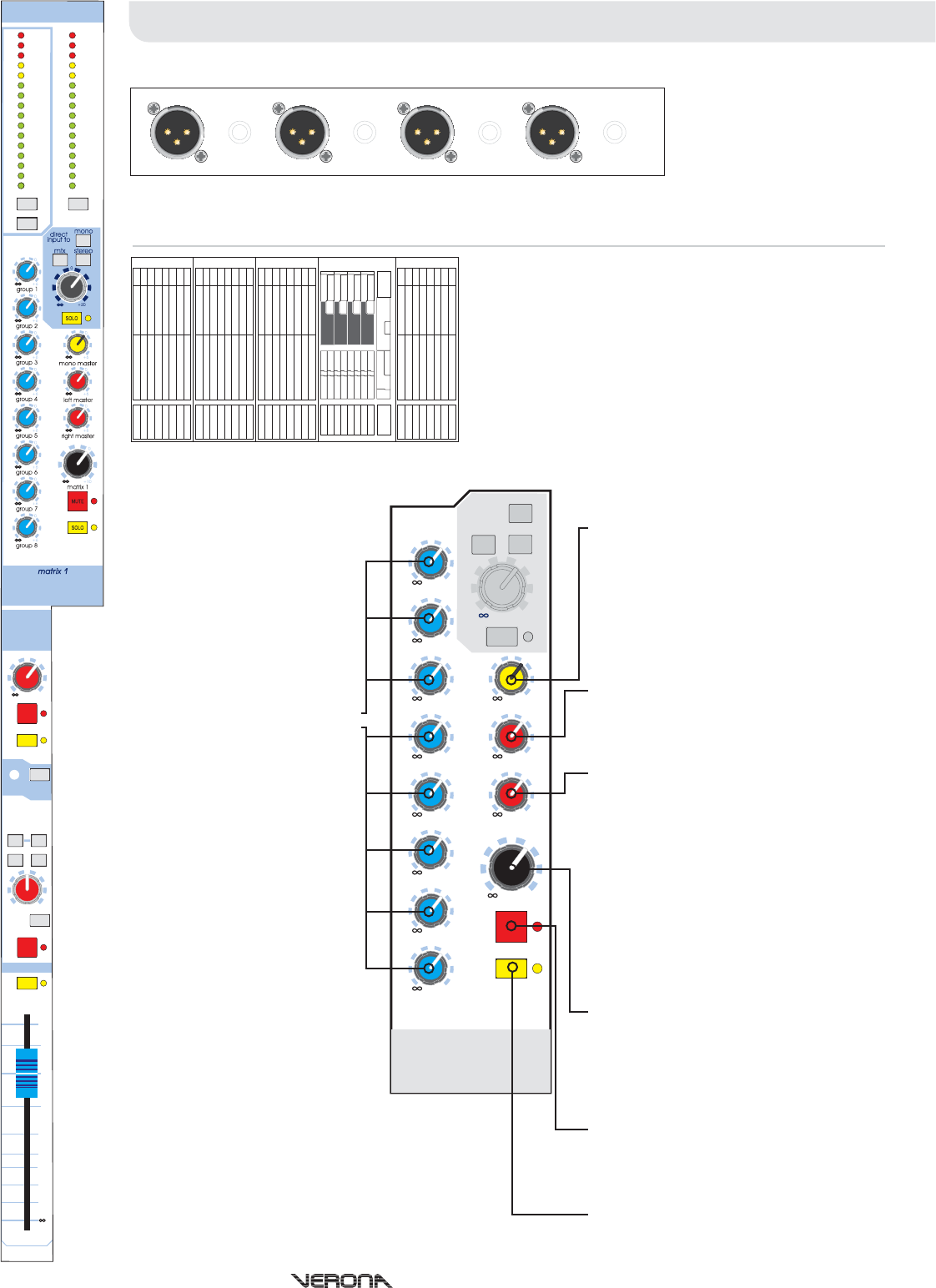

The matrix provides another four outputs from the console
which can be ‘made’ from a combination of the consoles
other outputs.
The matrix signal can be made by combination of the group
buss signals and mono, left and right master signals. They
can be used to drive additional speaker zones or as effects
sends from the groups (like the auxes from inputs)
Verona Matrix OutputsVerona Matrix Outputs
+20
0
matrix 1
group 6
group 7
group 8
group 5
group 4
group 3
group 2
group 1
right master
matrix 1
left master
mono master
direct
input to
mono
stereomtx
+10
0
0
0
0
0
0
0
0
0
0
0
0
+6
+6
+6
+6
+6
+6
+6
+6
+6
+6
+6
SOLO
SOLO
MUTE
Operators Manual - Page 22
Rear Panel
Front Panel
Group (1-8) - The group level
sent to the matrix is continuously
variable from off (-inf) to +6dB.
Unity (0dB) is also marked on the
scale allowing signal to be routed
to the matrix without any
attenuation or gain.
Each of the groups (1-8) has it’s
own individual matrix send level.
Mono Master - The master mono signal
sent to the matrix is continuously variable
from off (-inf) to +6dB. Unity (0dB) is also
marked on the scale allowing signal to be
routed to the matrix without any
attenuation or gain.
- The master left signal sent to
the matrix is continuously variable from off
(-inf) to +6dB. Unity (0dB) is also marked
on the scale allowing signal to be routed to
the matrix without any attenuation or gain.
- The master right signal
sent to the matrix is continuously variable
from off (-inf) to +6dB. Unity (0dB) is also
marked on the scale allowing signal to be
routed to the matrix without any
attenuation or gain.
Alternatively, the auxiliaries can be routed
to the matrix by depressing the group/aux
changeover switch. This is especially useful
for generating additional monitor mixes or
re-routing existing monitor mixes (for
example if artists are moving around to
other parts of the stage).
The overall level of the matrix output is
controlled by the pot (where x is
the number of the matrix 1 through 4) and
is continuously variable from off (-inf) to
+10dB.
- The matrix output can be muted
immediately after the group and master
matrix sends.
- The solo switch routes the matrix
signal to the mono PFL and the stereo AFL
buss.
Left Master
Right Master
Matrix x
Mute
Solo
matrix matrix matrix matrixdirect direct direct direct
4321in 4 in 3 in 2 in 1
The Verona’s matrix outputs can
be found on the rear of the
console.
Four male XLR sockets are
provided, one for each matrix
output.
XLR Wiring
Pin 1 - Shield, Pin 2 - Hot Signal, Pin 3 - Cold Signal
-24
pan
group
fade
pre
mono
stereo
to mtx
c
lr
+10
group 1
0
group 1
aux 1
aux
aux
c/o
pre
group
master
sis
10
10
5
5
0
20
15
30
40
SOLO
SOLO
MUTE
MUTE
aux aux
mtx
+21 +21
+18 +18
+15 +15
+12 +12
+9 +9
+6 +6
+3 +3
00
-3 -3
-6 -6
-9 -9
-12 -12
-15 -15
-18 -18
-21 -21
-24 -24
group meters
direct
mono
