User Guide

The Verona is a dual purpose console. That is, that the Verona is equally as comfortable
as a monitor console as it is as a front of house console.
engineers tend to prefer the output faders on their console to operate the
auxiliary outputs (for monitors) where engineers would rather have
their output faders for groups (either for sub mixes or delay/alternative outputs).
The Verona achieves this flexibility using the (changeover) switch. Each output can be
individually ‘changed over’ so that the group output path becomes that of the aux output and vice versa.
The Verona has been developed with real world sound engineers in mind. The real flexibility of the Verona is
in the speed in which the change over can be made and also the ability to create a console that can
be used for FOH and monitors for the smaller venue where you still need monitors but don’t have space or
money for a monitor engineer or console.
Depressing the group aux changeover switch (using a pointed object such as a pencil) will connect the
auxiliary buss to the group , group , group , group and finally the group
.
The group buss is connected to the auxiliary output and to the auxiliary .
This routing flexibility is available on each group/aux buss.
What does this actually mean?
Monitor
Front of House
group aux c/o
Why not buy a monitor or FOH console?
hybrid
insert mute fader pan output
XLR
pot output XLR
Output Module NotesOutput Module Notes
aux aux
mtx
+21 +21
+18 +18
+15 +15
+12 +12
+9 +9
+6 +6
+3 +3
00
-3 -3
-6 -6
-9 -9
-12 -12
-15 -15
-18 -18
-21 -21
-24 -24
group meters
+20
0
direct
input to
mono
stereomtx
SOLO
Before looking at the function of the output section of the console it is essential that the user is first comfortable with a few of
the consoles features that affect groups, matrixes and auxes. Rather than discuss these features in each section (although
they will be repeated there) an understanding of their function in a more general context is desirable.
Group Aux Changeover
Meter Changeover
Direct Inputs
aux
aux
c/o
pre
group

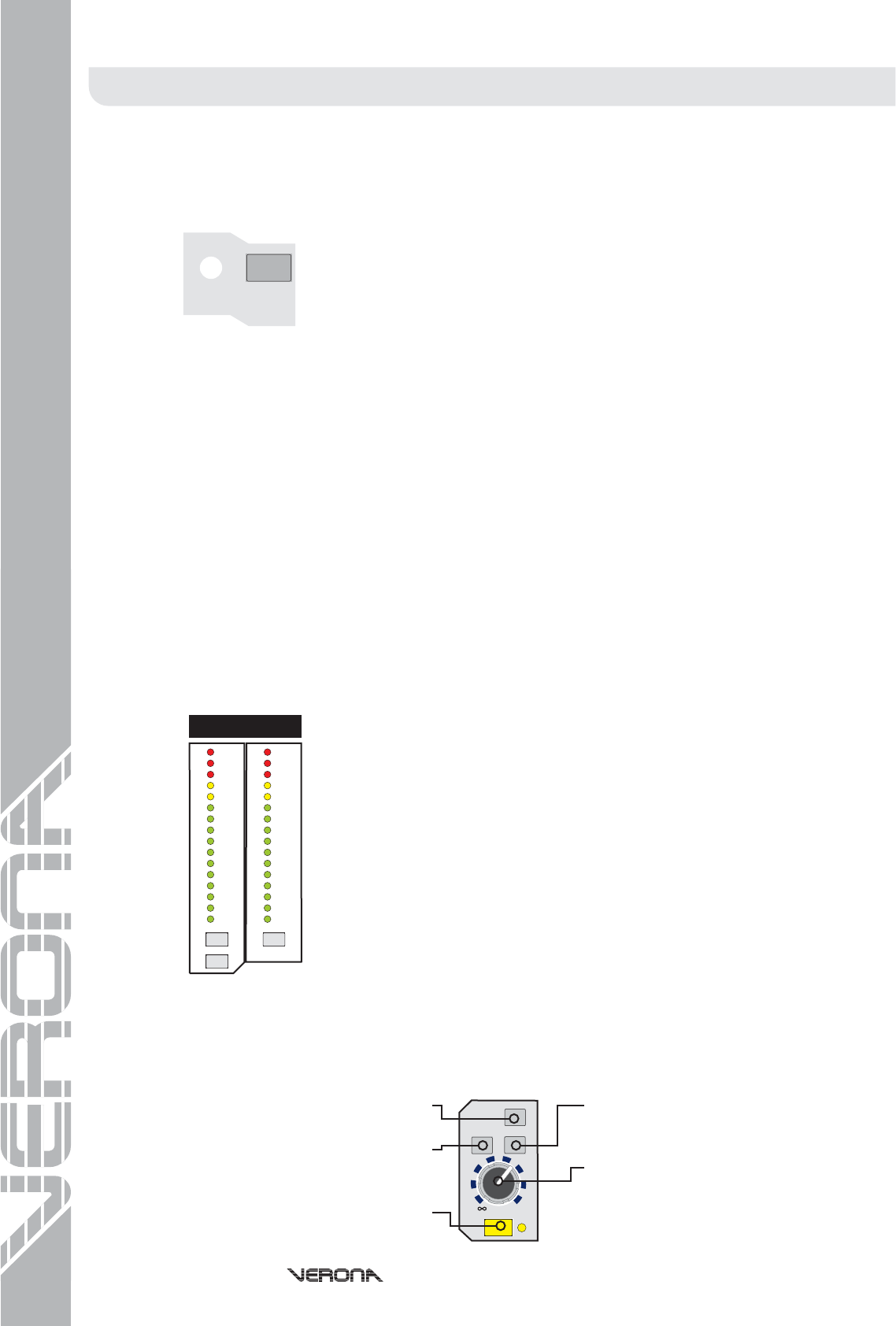

It is possible on the Verona to change the group meters to monitor the aux or matrix
output rather than the group output. For example, if using the matrix outputs to drive
delay speakers, it may be desirable to monitor the output from those outputs.
When depressed, the switch will send the aux signal to the meter array (note that,
if you have used group aux c/o, the aux switch should really read group!).
When depressed, the switch will send the matrix signal to the meter array. This
switch ALWAYS overrides the aux meter select switch and must be released to allow the
aux signal to be sent to the meter array.
Note: Meters are Post Fader and Post Mute
If you wish to understand more about how the Verona routes it’s signals, please refer to
the block diagram section of this manual.
aux
mtx
TIP
Operators Manual - Page 20
The Verona has four (4) direct inputs on balanced TRS quarter-inch jack sockets located next to the
matrix outputs on the rear panel which can be used for console linking or effects returns.
Mono
Mtx
Solo
- Routes the direct input to the
main mono buss.
- Routes the direct input to the
similarly numbered matrix buss (i.e. 1
through 4).
- Routes the direct input to the
mono PFL and stereo AFL buss
Stereo
Level
- Routes the mono direct input
to the main stereo Left and Right
busses equally.
- The direct input level is
continuously variable from off (-inf) to
+20dB.
