User Guide

Channel Equalisation
The Verona’s multifunction channels each have treble and bass
shelving EQ and hi and lo-mid sweep EQ stages for tonal control.
- The treble shelving EQ gain is continuously variable from -15dB to +15dB.
- The Hi-mid gain is continuously variable from -15dB to +15dB.
- The centre frequency of the hi-mid EQ is continuously variable from
600Hz to 8kHz allowing the operator to select the desired centre frequency for the equaliser.
- The bass shelving EQ gain is continuously variable from -15dB to +15dB.
The channel equalisation stages are enabled by depressing the EQ on switch.
Otherwise the settings of the channel EQ will have no effect.
- When depressed, auxiliary sends 1 through 6 will be sourced pre-
equalisation. Otherwise auxiliary sends will be sourced post EQ. The use of this option depends
upon how the auxiliary sends are to be used.

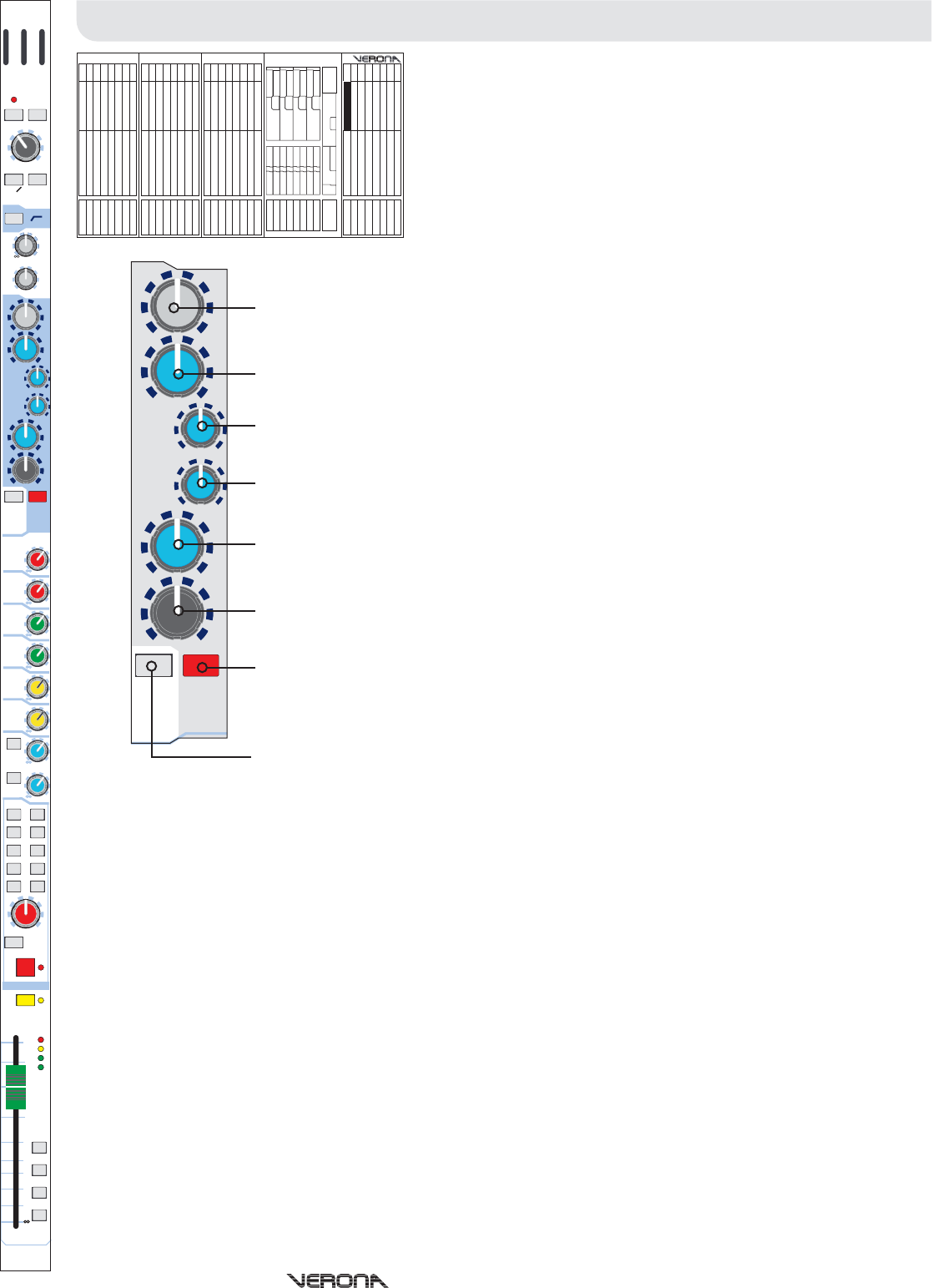

Treble
Hi-Mid Gain
Hi-Mid Frequency
Bass Gain
EQ On -
EQ Off (aux Pre)
Lo-Mid Frequency
Lo-Mid Gain
- The centre frequency of the lo-mid EQ is continuously variable from
100Hz to 1.2kHz allowing the operator to select the desired centre frequency for the equaliser.
- The Lo-mid gain is continuously variable from -15dB to +15dB.
Aux sends 7-8 can be linked to the pre EQ off
switch, as well as 1-6, via an internal jumper (refer to the service manual or contact your
authorised Midas service agent).
