3.8.1 COM1 & 2 Serial Data Statistics Menus
(See Figure 3-30)
Invisible place holder

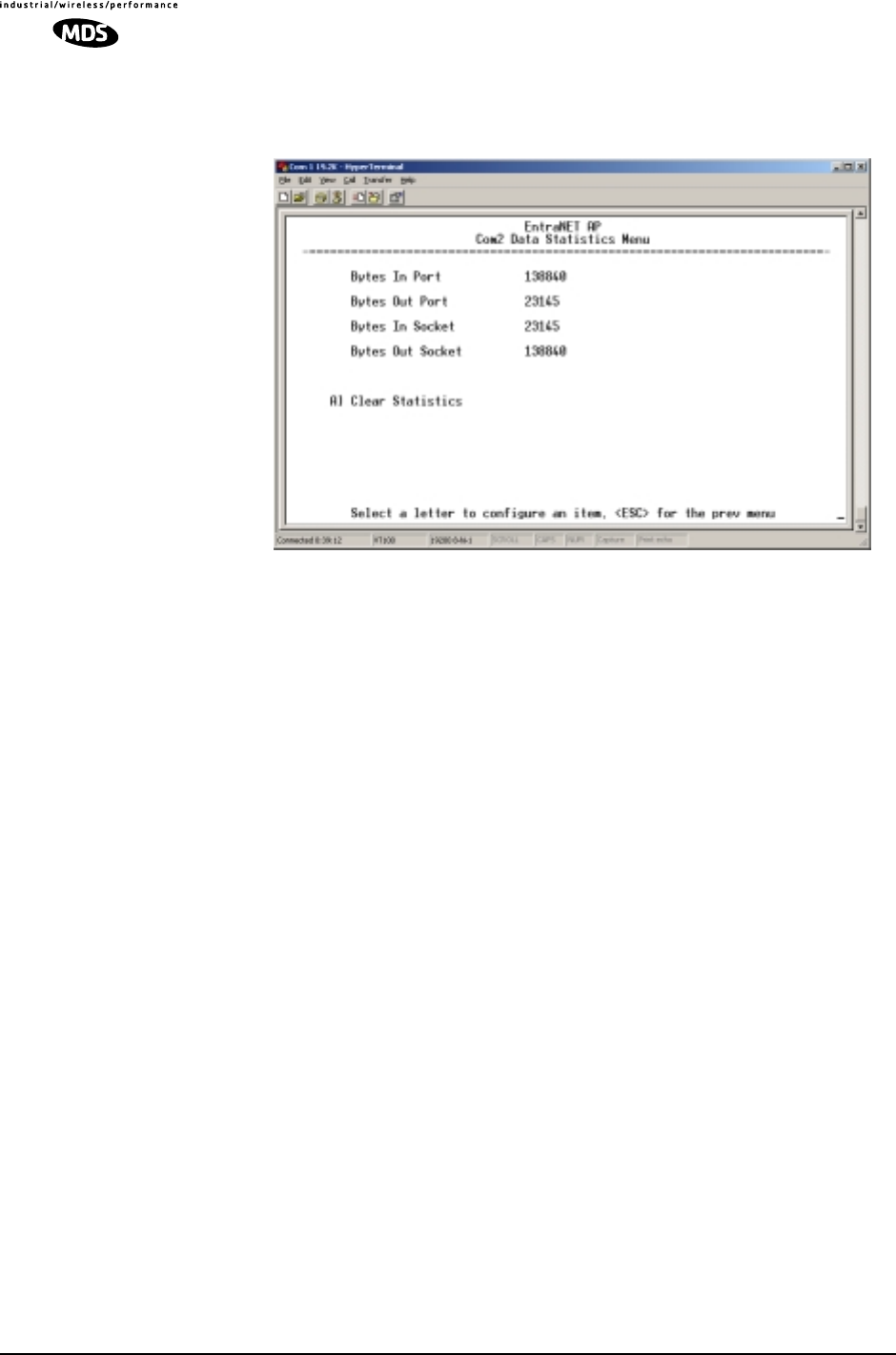

Figure 3-30. Com1/2 Data Statistics Menu
• Bytes in on port—Number of bytes received by the trans-
ceiver through the serial interface
• Bytes out on port—Number of bytes transmitted by the
transceiver through the serial interface
• Bytes in on socket—Number of bytes received by the
transceiver through the IP socket
• Bytes out on socket—Number of bytes transmitted by
the transceiver through the IP socket.
3.8.2 Remote Serial Gateway Statistics Menu
(See Figure 3-31)
This screen provides a summary of port activity for Remote Serial
Gateway entries that have been set up for IP-to-remote serial data. These
values will be reset to zero after a reboot cycle.
