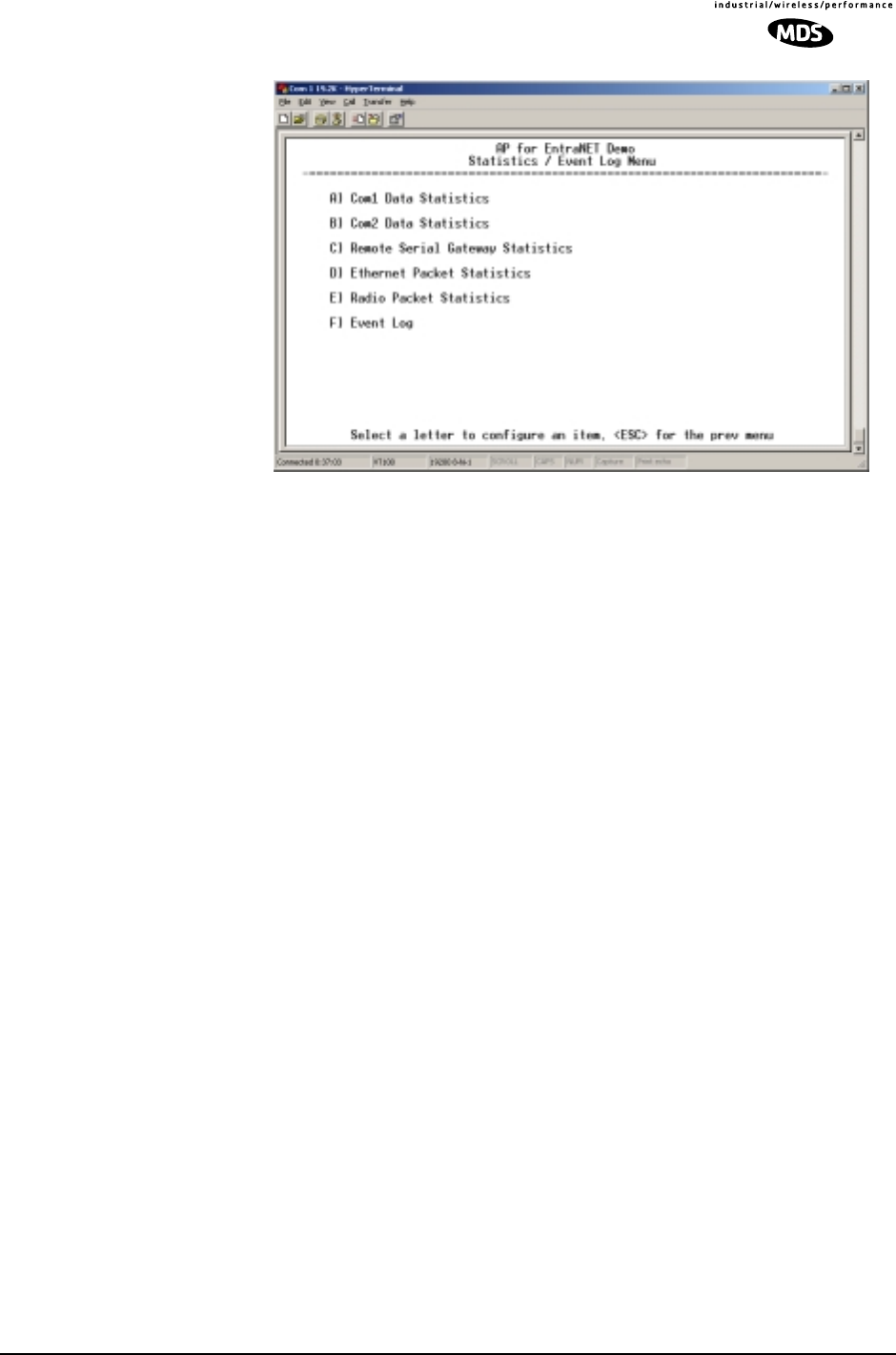

Figure 3-29. Statistics/Event Log Menu (Main Screen)
• COM1/2 Serial Data Statistics—These screens
show bytes in/out for the COM1/2 ports
• Remote Serial Gateway Statistics—Shows Unit
ID, status and throughput data for connected Remotes.
• Ethernet/Wireless Packet Statistics—Shows
vital data on packets and bytes in/out of the radio, errors
detected, and lost Ethernet carriers.
• Radio Packet Statistics—Shows a summary of data
packets sent/received by the radio, including overflows,
good/failed data, retries and timeouts.
• Event Log—Database of past and present Events and Alarms
for the wireless network.
