Specifications

56 MDS entraNET 900 System Guide MDS 05-4055A01, Rev. A
• RxPkts—Over-the-air data packets received by the transceiver.
and passed on to the endpoint device.
Access Point Database Menu
The Access Point Database Menu (Figure 3-28) provides a listing of all
Access Points contained in the wireless network and includes details
about each unit.
Invisible place holder

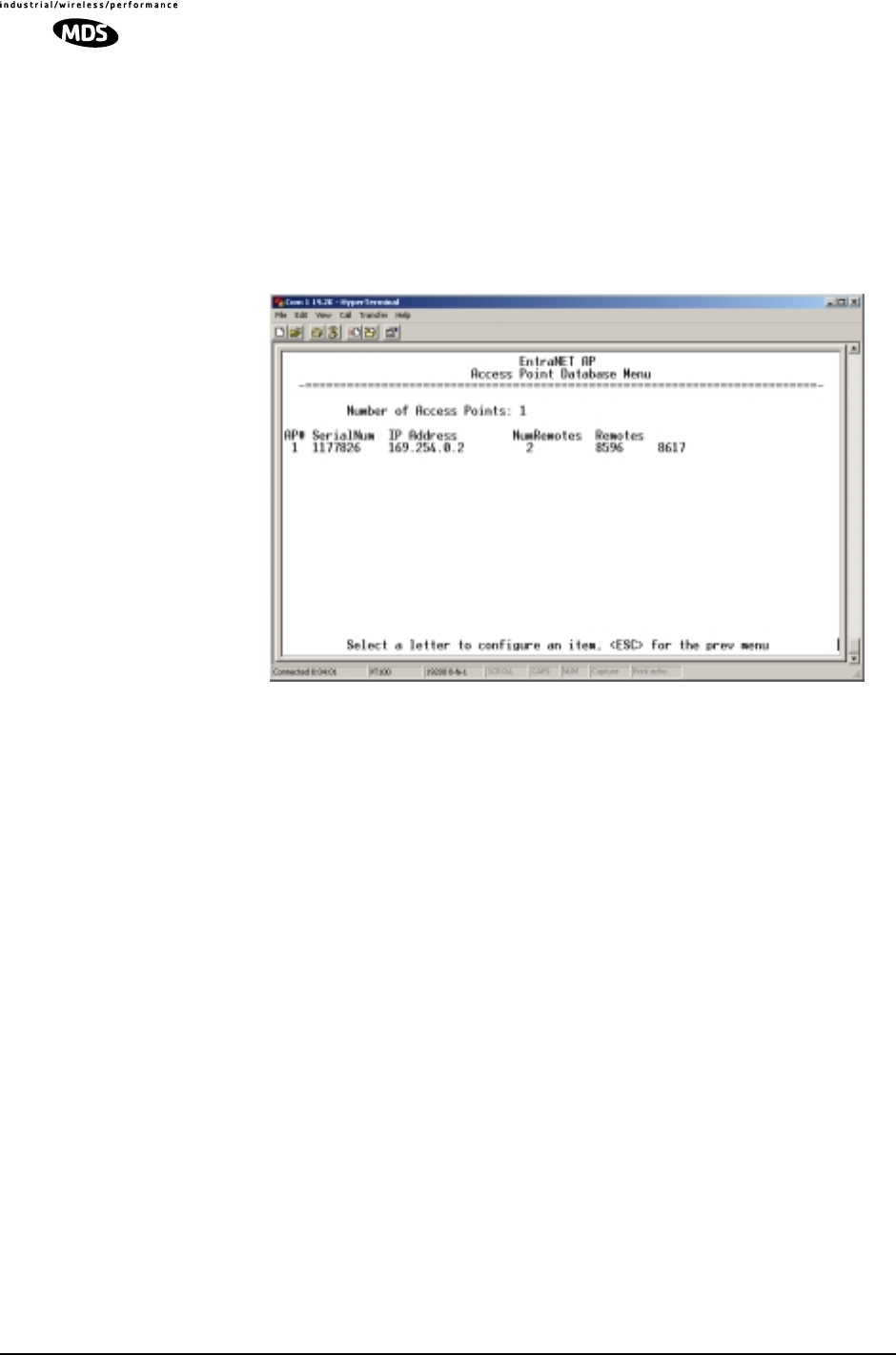

Figure 3-28. Access Point Database
• Serial Number—Factory-assigned serial number for the Access
Point.
• IP Address—IP Address of the Access Point.
• Number of Remotes—Current number of Remotes connected to
the Access Point.
• List of Remotes—Lists all Remotes (by Unit ID number) that
are currently connected to the Access Point.
3.8 STATISTICS/EVENT LOG
The Statistics/Event Log Menu (Figure 3-29) contains a variety of items
related to the health and performance of the wireless network. Data
throughput statistics, as well as past/present Events and Alarms are all
presented and stored in this menu area.
