4.2 UPGRADING REMOTE FIRMWARE
A Remote radio’s firmware may be upgraded using the Windows-based
utility, entraNET Remote Upgrade software (Figure 4-1). A local PC
connection to the radio is required for this upgrade. Follow the prompts
and dialog boxes on the screen to perform the upgrade procedure. A
description of these items appears below.
Invisible place holder

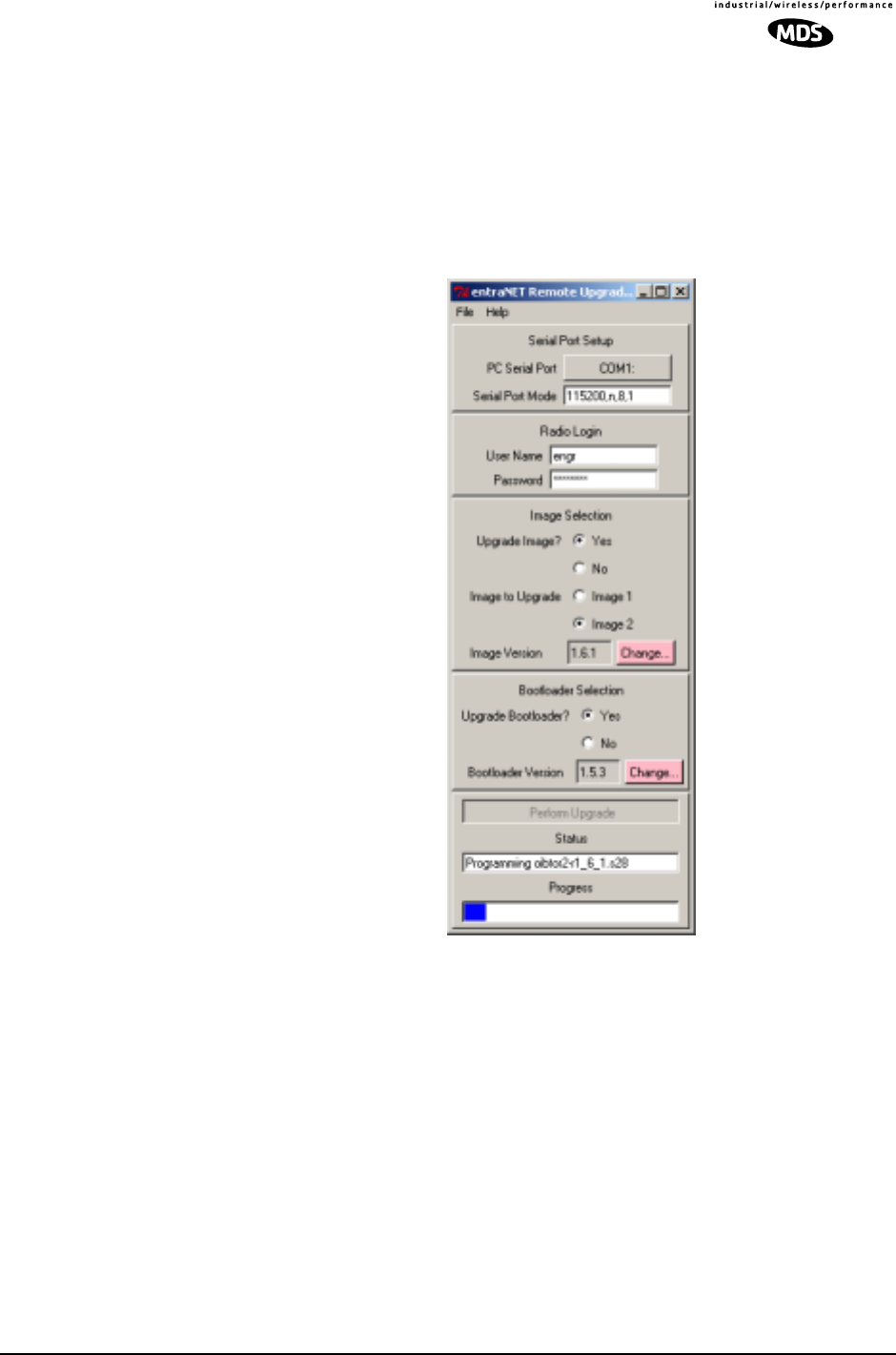

Figure 4-1. Remote Upgrade
• PC Serial Port—Set to the serial port on the PC to which
the Remote is connected.
• Serial Port Mode—Enter the data rate, parity, data bits,
and stop bits to use when connecting to the Remote’s console
(COM1) port.
• Image to Upgrade—Select the image of firmware you
wish to upgrade.
• Image Version Change—Click this button to set the firm-
ware version to upgrade to.
• Upgrade Bootloader—Select
Yes to also upgrade the
Remote’s bootloader.
• Bootloader Version Change—Click this button to
select the bootloader version to upgrade to.
