User Guide

Charging the Battery Pack
DC Plug
AC Plug
CHARGE LED
POWER Switch
POW
ER
POW
ER
POWER LED

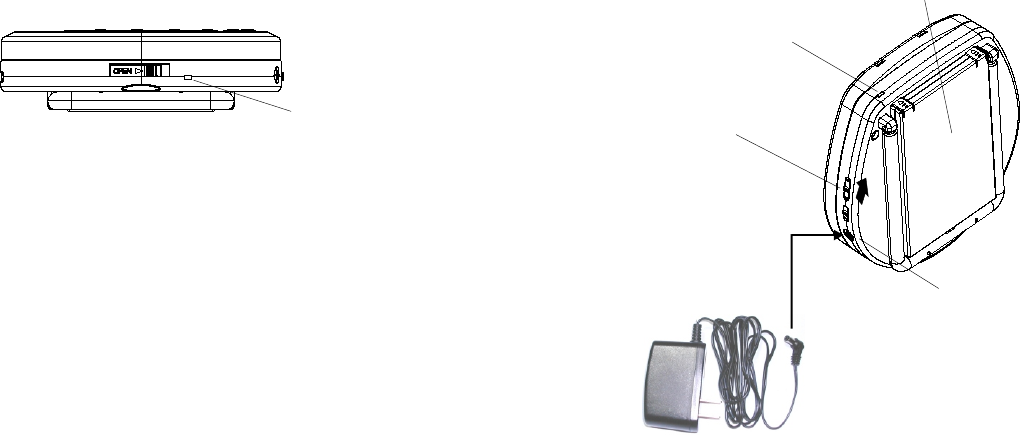

When the "POWER LED" starts to blink in red, the
battery will stop supplying power to the system in
10 minutes. At this time, the user needs to charge
the battery. Please follow the steps below and
refer to the diagram at the right-hand side.
(1) Slide the POWER switch to the "OFF" position in the
direction of arrow as indicated by the diagram on the right.
The "CHARGE LED" will be in GREEN.
(2) Connect the DC plug of the AC/DC adapter to the "DC
INPUT" jack on the right side of the unit.
(3) Connect the AC plug of the AC/DC adapter to the AC outlet.
(4) The "CHARGE LED" will turn to red to indicate that the unit
is charging the attached battery pack.
(5) The "CHARGE LED" will turn green after the battery is full.
DC INPUT
Battery Pack
