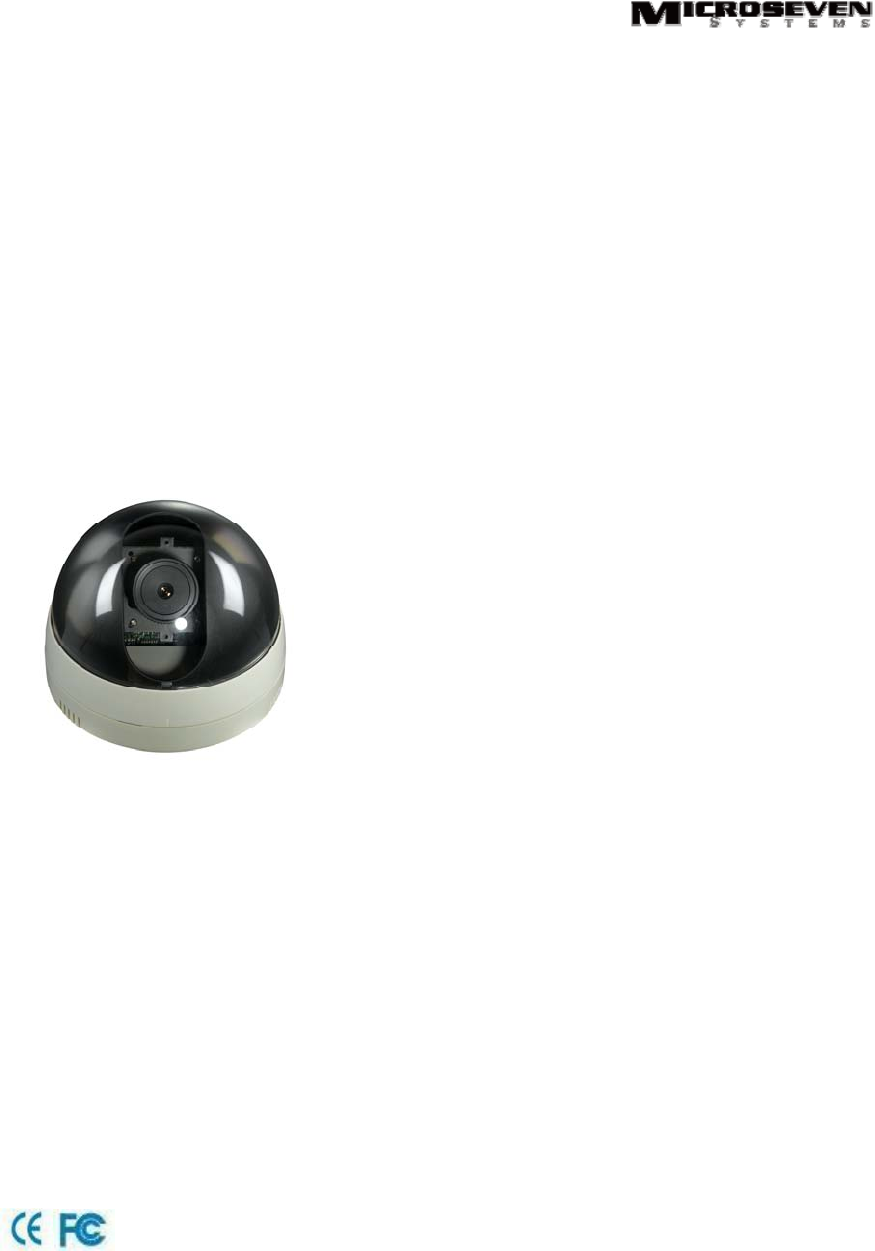

Product Operation Manual MSH-CD080W Wireless Dome Network IP Camera Microseven Systems, Inc.
Microseven® MSH-CD080W Wireless Dome Network IP Camera -2- First Edition (April 2008) Copyright Notice Copyright © 2002-2008 Microseven Systems, Inc. All Rights Reserved. Microseven Systems, Inc. provides this operation manual “as is” without warranty of any kind, either express or implied, including, but not limited to the implied warranties of merchantability and fitness for a particular purchase. Microseven Systems, Inc.
Microseven® MSH-CD080W Wireless Dome Network IP Camera -3- Notes: Please read the following label before connecting or operating the equipment. Notes: Notes： Please Please not move move the the cover cover (or (or back) back)toto reduce reduce the danger of electric part the danger of electric shock. shock. No partNoinside inside can be repaired by users. Refer can be repaired by users. Refer servicing to servicing to qualified personnel.
Microseven® MSH-CD080W Wireless Dome Network IP Camera -4- Contents 1. Preface ………………………………………………………………………………… 5 2. Key Features ………………………………………………………………………………… 5 ………………………………………………………………………………….…..…… 6 ……………………………………………………………… 7 ……………………………………………………………………… 7 3. Notes 4. Instructions of Main Parts 5. Connections 6. Installation of Camera ……………………………………………………………………… 7. Basic System Diagram and Operating Circumstance 8. Specification ………………………………… 10 12 ………………………………………………………………………..
Microseven® MSH-CD080W Wireless Dome Network IP Camera -5- 1. Preface MSH-CD080W Wireless Dome Network IP cameras adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.
Microseven® MSH-CD080W Wireless Dome Network IP Camera -6- Built in multi network protocol: Support TCP/IP protocol, allow data sending and receiving by WAN or LAN. Intercom function, can realize site to remote client-end intercom by audio I/O of network camera. Provide SDK interface to realize multi-system integration, easy for second development for more functions. Supports dual-stream, can select different saving code ration and remote transmit ratio according to demand. 3. Notes A.
Microseven® MSH-CD080W Wireless Dome Network IP Camera -7- 4. Instructions for Main Parts ⑦ ⑥ 21 3 4 OU 1 2 IN T ⑧ ⑤ ⑨ ⑩ ① Network socket/plug ② Power supply terminal ③ Audio input terminal ④ Video output terminal ⑤ USB interface ⑥ Alarm input/output cable ⑦ RS485 interface ⑧ Housing ⑨ Lens 5. Connections 5.1 Power terminal connections © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-CD080W Wireless Dome Network IP Camera 5.2 Video output terminal connection 5.3 Audio input terminal connection 5.4 Audio output terminal connection © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-CD080W Wireless Dome Network IP Camera -9- 5.5 Audio output terminal connection 4 Alarm Lines - alarm input A - alarm input B - alarm output A - alarm output B 5.6 Network socket terminal connection 5.7 USB interface connector 5.8 RS485 communication interface connector © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-CD080W Wireless Dome Network IP Camera - 10 - 5.9 RJ-45 connections - 8PIN standard GM line - Ultra-five - Recommended maximum length: 80m 6. Installation of Camera " The following task should be undertaken by qualified service personnel or system installers. " The following installation method is indoor hoisting. " Ask an expert about the bearing capability and structure of the installation surface, if the surface is not solid enough, the camera may drop down.
Microseven® MSH-CD080W Wireless Dome Network IP Camera - 11 - 6.1 Fix the screws A. Remove the protection PVC from the metal piece, then paste the fixed metal piece onto the installation surface. Fig. 1 fixed metal piece B. Aim the screws into the holes of fixed metal piece (do not aim the screws askew) Fig. 2 fixed screw 5mm C. Do not screw entirely, remaining part of the screw outside (>4.5mm, <5.5mm), to ensure the space for installation. Fig. 3 screw remain outside 6.
Microseven® MSH-CD080W Wireless Dome Network IP Camera - 12 - 7. Basic System Diagram and Operating Circumstance Operate environment After the equipment installed and connected to the network, it should be operated on Server Software Platform of Microseven Digital Video Server. 8. Specifications Model MSH-CD080W Pick-up Device 1/3″ SONY Super HAD CCD Pixels 795(H)×597(V)PAL Horizontal Resolution 480 Lines Minimum Illumination 0.5Lux Scanning Area 4.9 mm (H) x 3.
Microseven® MSH-CD080W Wireless Dome Network IP Camera - 13 - Resolution QCIF: CIF: H-D1: D1: 176 * 144 (PAL), 176*120 (NTSC) 352 * 288 (PAL), 352*240 (NTSC) 720 *288 (PAL), 360*480 (NTSC) 720 * 576 (PAL), 720*480 (NTSC) Frame Rate 25 fps (PAL), 30 fps (NTSC) Character Superimpose Support character and time superimpose Motion Detection 12x16 detecting areas and 9 levels sensitivity Network Interface 1 RJ-45, 10M/100M self-adjustable Network Protocol TCP/IP, UDP/IP, HTTP, FTP, ICMP, Telnet, IGM
