6. Information Functions

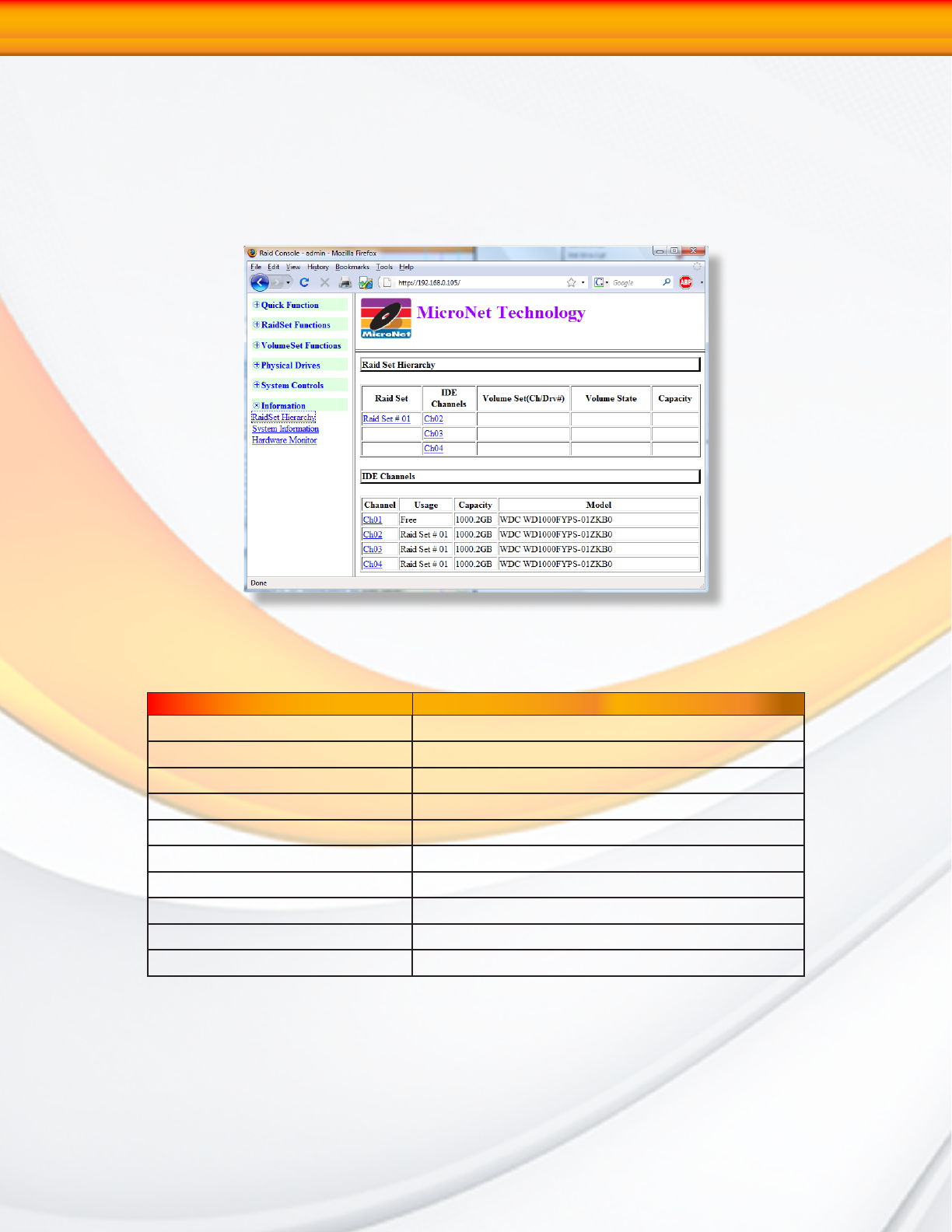

6.1 RAIDSet Hierarchy
This option will display the current physical and logical configuration of the RAIDBank4.
The RAIDset(s), disk channels, and Volume Set(s) are each clickable, and will pull up the
respectiveinformationabouteachobject.
6.2 System Information
Choose this option to display various components of the RAIDBank4, as illustrated in this table:
Component Value
Controller Name RAIDBank4
Firmware Version V1.45 2008-04-29
BOOT ROM Version V1.45 2008-3-14
Serial Number xxx
Unit Serial #
Main Processor 400MHz 88F5182
CPU ICache Size 32KBytes
CPU DCache Size 32KBytes / Write Back
System Memory 128MB / 400MHz
Current IP Address 192.168.1.100
6.3 Hardware Information
To view the RAIDBank4 controller’s hardware monitor information, select the “Hardware
Information” option. All hardware environmental information will be displayed. Scroll to
browse all the hardware information. The Hardware Monitor Information provides the
temperature, fan speed (chassis fan) and voltage of the internal RAIDBank4. The temperature
items list the current states of the controller board, backplane, and disk drives.
