main PCB).The yoke is not located in the default position after the reset.
ti.Er.
(TILT-head movement error) This message will appear after the reset of the fixture if the head’s magnetic-indexing
circuit malfunctions (sensor failed or magnet missing) or the stepping motor is defective. (Or its driving IC on the
main PCB).The head is not located in the default position after the reset.
MA.Er.
(Master error) The message informs you that the fixture was addressed as a master and DMX signal is connected
to its input.Disconnect the DMX controller from fixture's input and address the fixture as the master again.
11.Technical specifications
Power supply:
Voltage: 100/115/208/230/240V AC, 50/60Hz ~
Fuse: T 5,0A @ 115V
Power consumption: 300 VA
Lamp:
CDM-SA/T 150/942 , base G12
Optical System:
- High luminous-efficiency parabolic system and 3 elements- objective
-All lenses are anti-reflection coated
-19° beam angle
Beampath:
Colours:
- 11 dichroic-filters plus white
- Colour-wheel with variable rotation speed
Rotating gobos:
-3 metal gobos, 3 glass gobos and 1 dichroic gobo rotating in both directions at different speeds
- Gobo rotation
- Rotating gobo-wheel cont. rotation
- Metal gobos: outside diameter 27 mm, image diameter 22,5 mm
-Glass and dichroic gobos:outside diameter 26,8 mm, image diameter 22,5 mm
-All gobos are interchangeable
Focus:
- 19°-wide angle objective with the manual focus
Strobe:
- Strobe effect with variable speed (1 - 10 flashes per second)

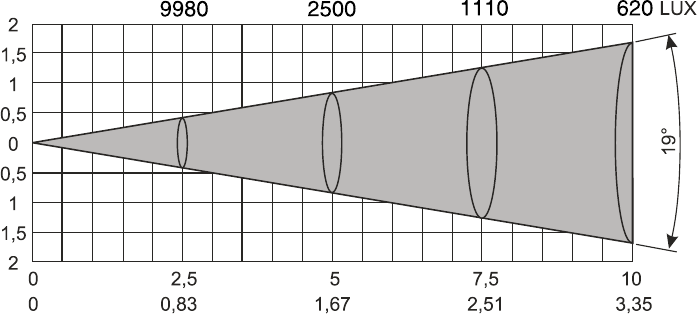

Beam opening (m)
Distance (m)
Diameter (m)
