1. Calibration via the control panel
Press [ ] and the [ ] or [ ] buttons in order to display the following messages: "Colo, rGob," for very smooth
function calibration. Select one of them, press [ ] and use the [ ] and [ ] buttons in order to adjust their right
value from 0 to 255. Then press [ ] to confirm or [ ] to cancel and return to the menu. This can be repeated for
each calibration parameter if it is required. When the calibration is finished, it is necessary to use the "A.rES."
function in order to write the calibration values to the memory (EPROM) and to make a reset in order to check the
newly adjusted positions of the colour and gobo wheels. When the reset of the fixture is finished, the display will
show the "F.CAL." message. Press [ ] to repeat the calibration or [ ] to return to the "AdJ." menu.
2. Calibration via the external controller
Connect the DMX controller, press [ ] and the [ ] or [ ] buttons in order to display the following messages:
"Colo, rGob," - calibration parameters. Select one of them and press [ ].
Now you can calibrate the colour and rotating gobo wheel by your controller. The DMX calibration protocol is
described in the table mentioned below.

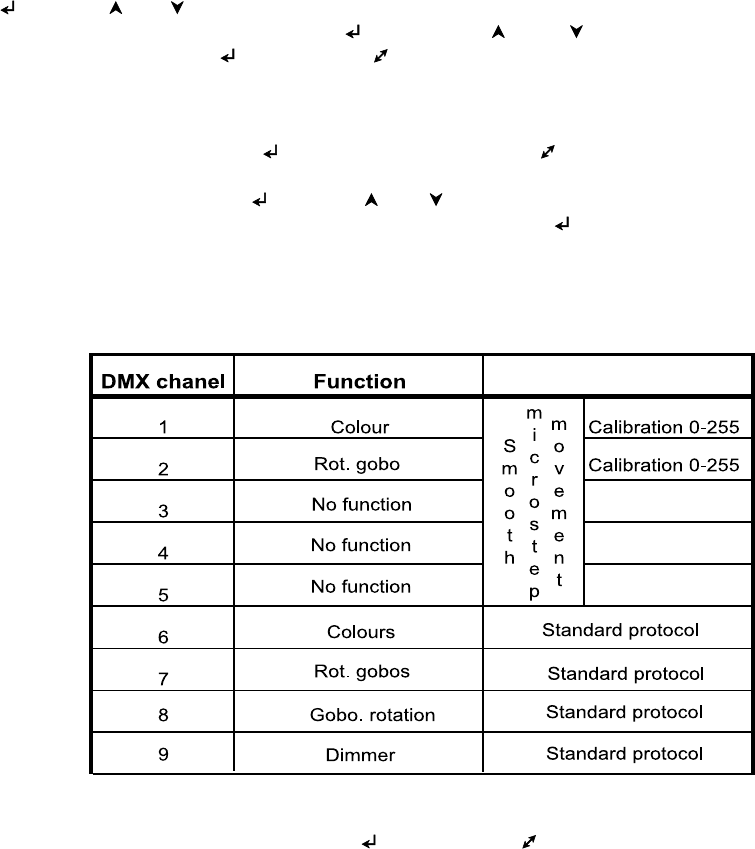

DMX Calibration protocol:
After having calibrated required functions press [ ] to confirm (or [ ] to cancel and return to the menu without
reset by the "A.rES." function) and use the "A.rES." function in order to write the calibration values to the
memory (EEPROM) and to make a reset in order to check the new adjusted positions of the colour and gobo
wheels.
10. Error and information messages
M.b.Er.
This messsage informs you that the main PCB does not communicate correctly with the Control Panel.
Co.Er.
(Colour -wheel error)This messsage will appear after the reset of the fixture if the magnetic-indexing circuit
malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main
PCB).The color-wheel is not located in the default position after the reset.
r.GEr.
(Rotating gobo-wheel error) This message will appear after the reset of the fixture if the magnetic-indexing circuit
malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main
PCB).The rotating gobo-wheel is not located in the default position after the reset.
Po.Er.
This message will appear if the fixture was shortly disconnect from the main.
PA.Er.
(Pan-yoke movement error) This message will appear after the reset of the fixture if the yoke’s magnetic-indexing
circuits malfunction (sensors failed or magnet missing) or the stepping motor is defective. (Or its driving IC on the
