User manual

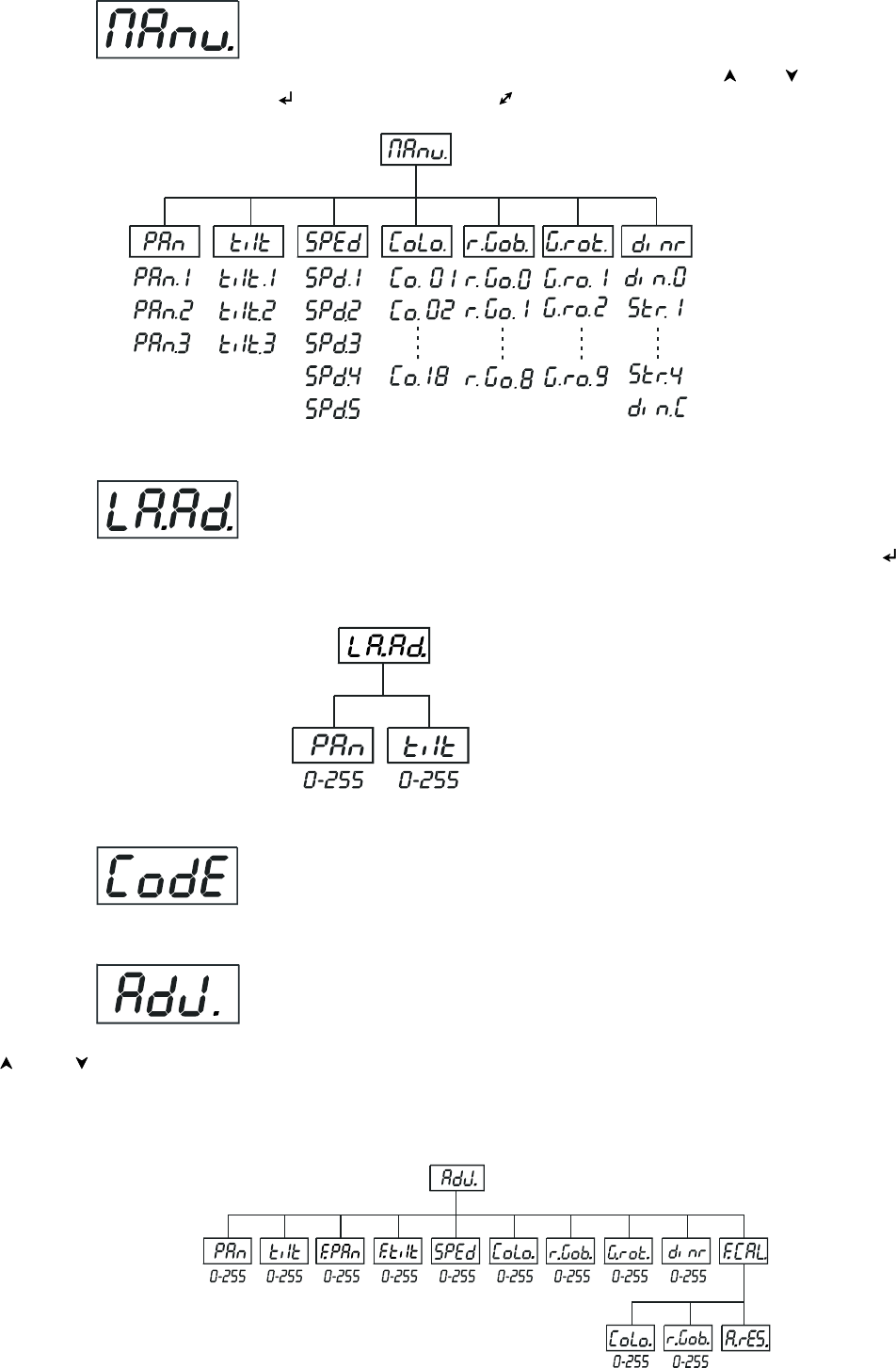

- Manual control of effects

The function allows you to control manually the channel functions of the fixture. Use the [ ] or [ ] buttons to

select desired function and press [ ] to adjust the effect or [ ] to cancel and return to the menu.

- Lamp adjustment

This function can be used when you make the fine adjustment of the lamp.If you select "LAAd" pressing by [

]-button ,all effects will be canceled,shutter will be opened and the dimmer intensity will be set onto 100%.By

using the options "PAn, tilt," you can focus the light on a flat surface (wall) and perform the fine lamp adjustment.

-- Fixture code

The option contains identification code (1-9999) for the fixture, which is used for the master/slave operation.

- Adjusting the default positions of the colour and gobo wheels

By this function you can calibrate and adjust the colour and gobo wheels to their standard/right positions. Use the

[ ] and [ ] buttons to browse through the adjusting menu - the display shows step by step these messages:

"PAn, tilt,FPAn,FTilt,SPEd,Colo,rGob,Grot, dimr, FCAL" by which you can adjust the fixture to the required/

desired position (0-255) before the function calibration. Then when the positioning is finished use the last "F.CAL."

function (Fixture calibration).
