User manual

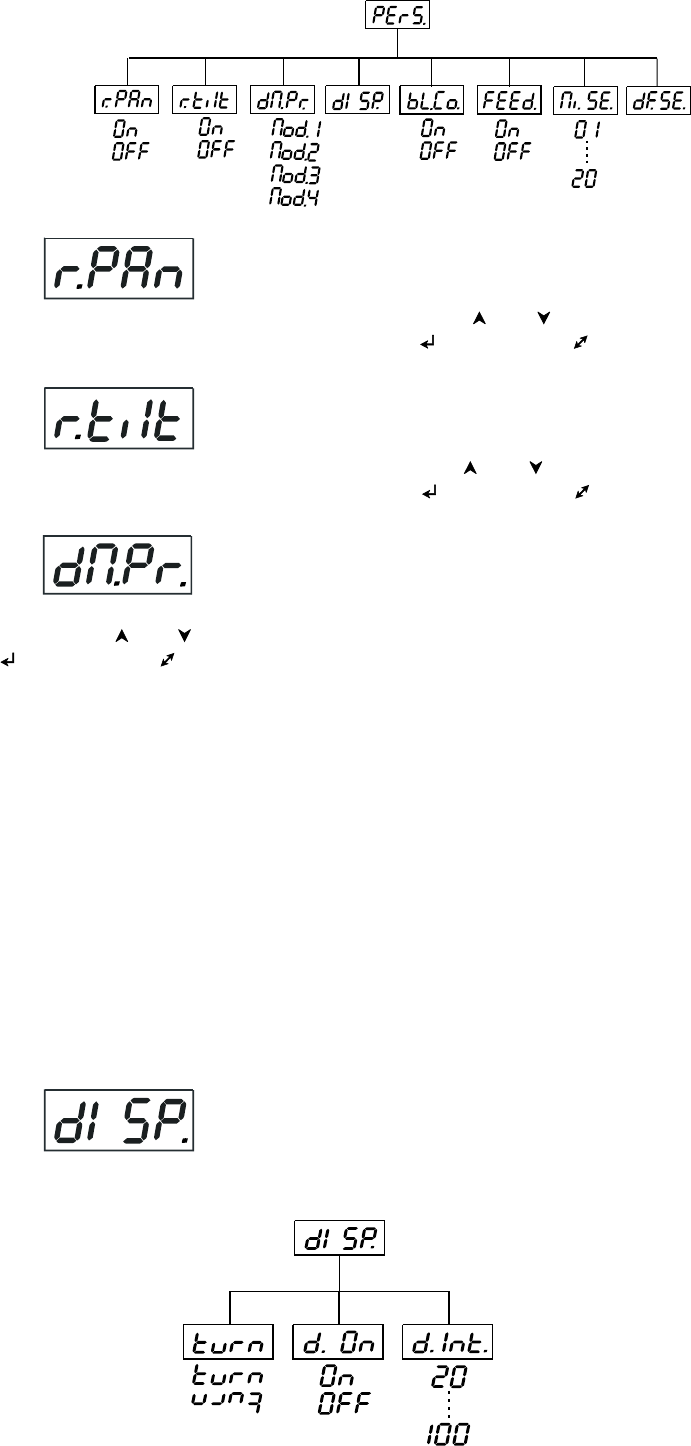

- Pan reverse

This function allows you to invert the pan movement. Use the [ ] or [ ] buttons to select "On" if you wish this

feature or "Off" if you don’t wish this feature and press [ ] to confirm or [ ] to cancel and return to the menu.

- Tilt reverse

This function allows you to invert the tilt movement. Use the [ ] or [ ] buttons to select "On" if you wish this

feature or "Off" if you don’t wish this feature and press [ ] to confirm or [ ] to cancel and return to the menu.

- DMX presetting

The function makes possible to select from the 4 DMX- channels settings (including 8 or 16 bit movement

resolution). Use the [ ] or [ ] buttons to select desired channel settings ("Mod.1,Mod.2,Mod.3,Mod.4") and

press [ ] to confirm or [ ] to cancel and return to the menu.

List of the channels settings:

Channel Mode 1 Mode 2 Mode 3 Mode 4

1 Pan Pan Pan Pan

2 Tilt Fine Pan Tilt Tilt

3 Fine Pan Tilt Speed Colours

4 Fine Tilt Fine Tilt Colours R.gobos

5 Speed Speed R.gobos Gobo rotation

6 Colours Colours Gobo rotation Dimmer

7 R. gobos R.gobos Dimmer

8 Gobo rotation Gobo rotation

9 Dimmer Dimmer

Please refer to the chapter "DMX- protocol" for detail description.

If the Mode 4 is selected,the speed of pan/tilt movement is set onto maximum.

- Display adjusting

This function allows you to adjust the display settings:
