After starting to scan the EPC data, the button “Scan” will become to “Stop”. To stop the scanning,
press “Stop” button, then the reader stops to read EPC. You can press “Scan” to make reader to scan
again, and the showing table will be reset.
4.4 Read All
"Read All" is the same as Read EPC in section 4.3 except masking data. "Read All" reads the data of
all the banks from tag.
Turn on the RF power before read all banks from tag. Press “Scan” button to scan banks, such as User,
TID, EPC, and Reserved bank. You can also adjust antenna and power (see Fig. 19). After reader
has read all the banks from tag, the data of banks will be shown on yellow field (see Fig. 20).

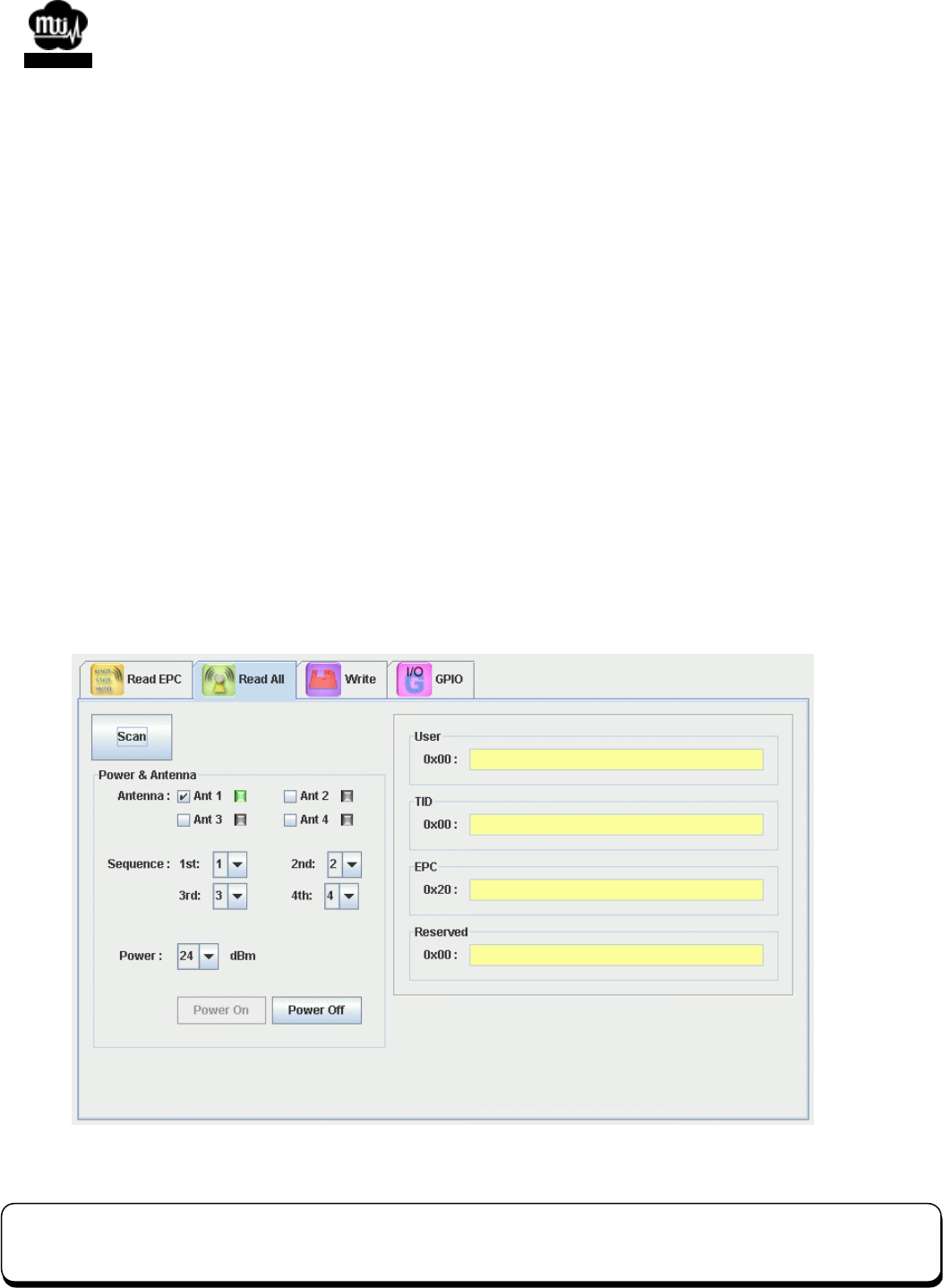

Fig. 19 Read all panel.
