2002 Microchip Technology Inc. Preliminary DS40044A-page 145
PIC16F627A/628A/648A

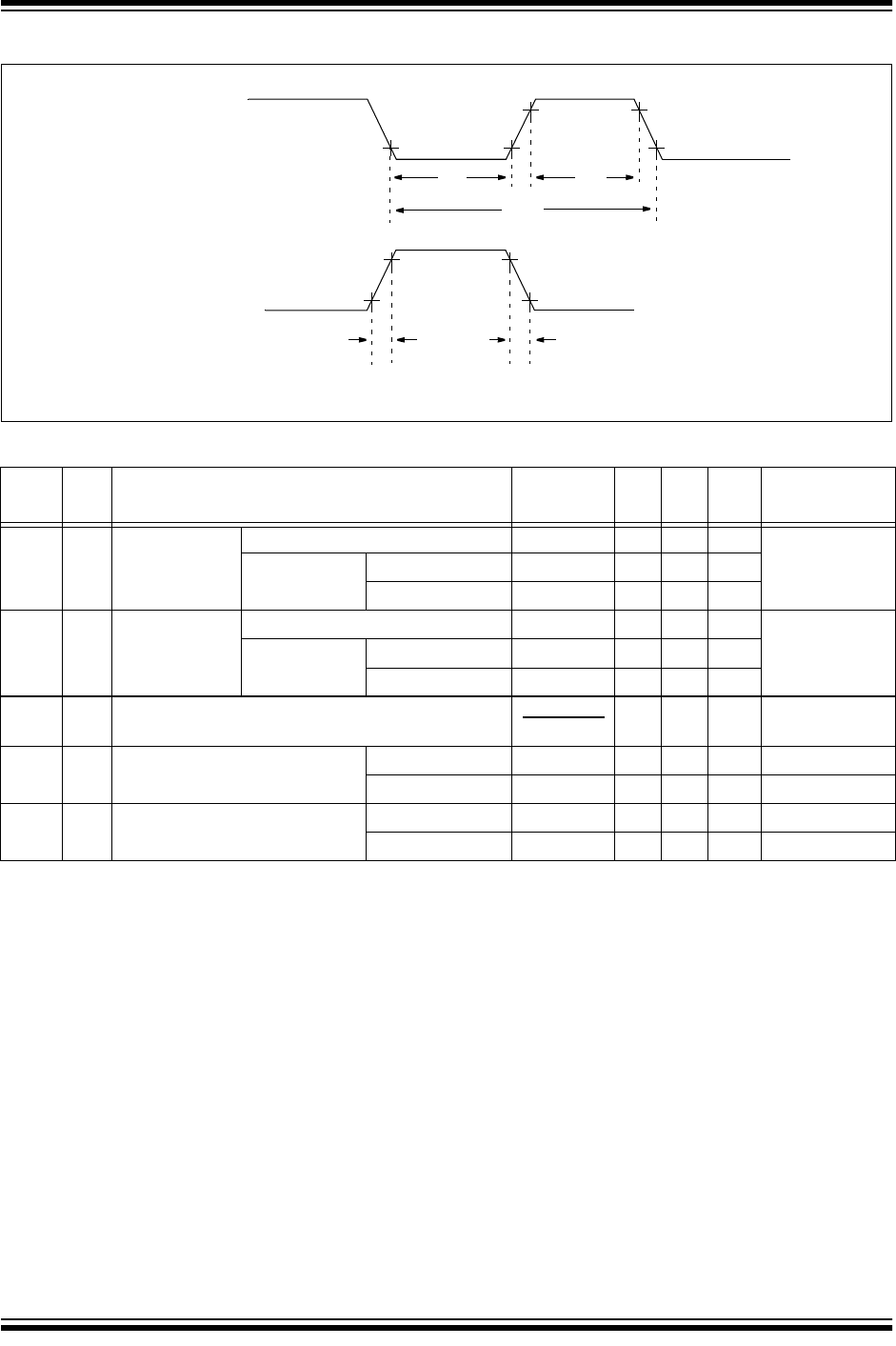

FIGURE 17-10: CAPTURE/COMPARE/PWM TIMINGS
TABLE 17-8: CAPTURE/COMPARE/PWM REQUIREMENTS
Param
No.
Sym Characteristic Min Typ† Max Units Conditions
50 TccL CCP
input low time
No Prescaler 0.5T
CY + 20* — — ns
With Prescaler
PIC16F62X 10* — — ns
PIC16LF62X 20* — — ns
51 TccH CCP
input high time
No Prescaler 0.5T
CY + 20* — — ns
With Prescaler
PIC16F62X 10* — — ns
PIC16LF62X 20* — — ns
52 TccP CCP input period 3T
CY + 40*
N
— — ns N = prescale
value (1,4 or 16)
53 TccR CCP output rise time PIC16F62X 10 25* ns
PIC16LF62X 25 45* ns
54 TccF CCP output fall time PIC16F62X 10 25* ns
PIC16LF62X 25 45* ns
* These parameters are characterized but not tested.
† Data in “Typ” column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only
and are not tested.
(CAPTURE MODE)
50 51
52
53 54
RB3/CCP1
(COMPARE OR PWM MODE)
RB3/CCP1
