2002 Microchip Technology Inc. Preliminary DS40044A-page 143
PIC16F627A/628A/648A

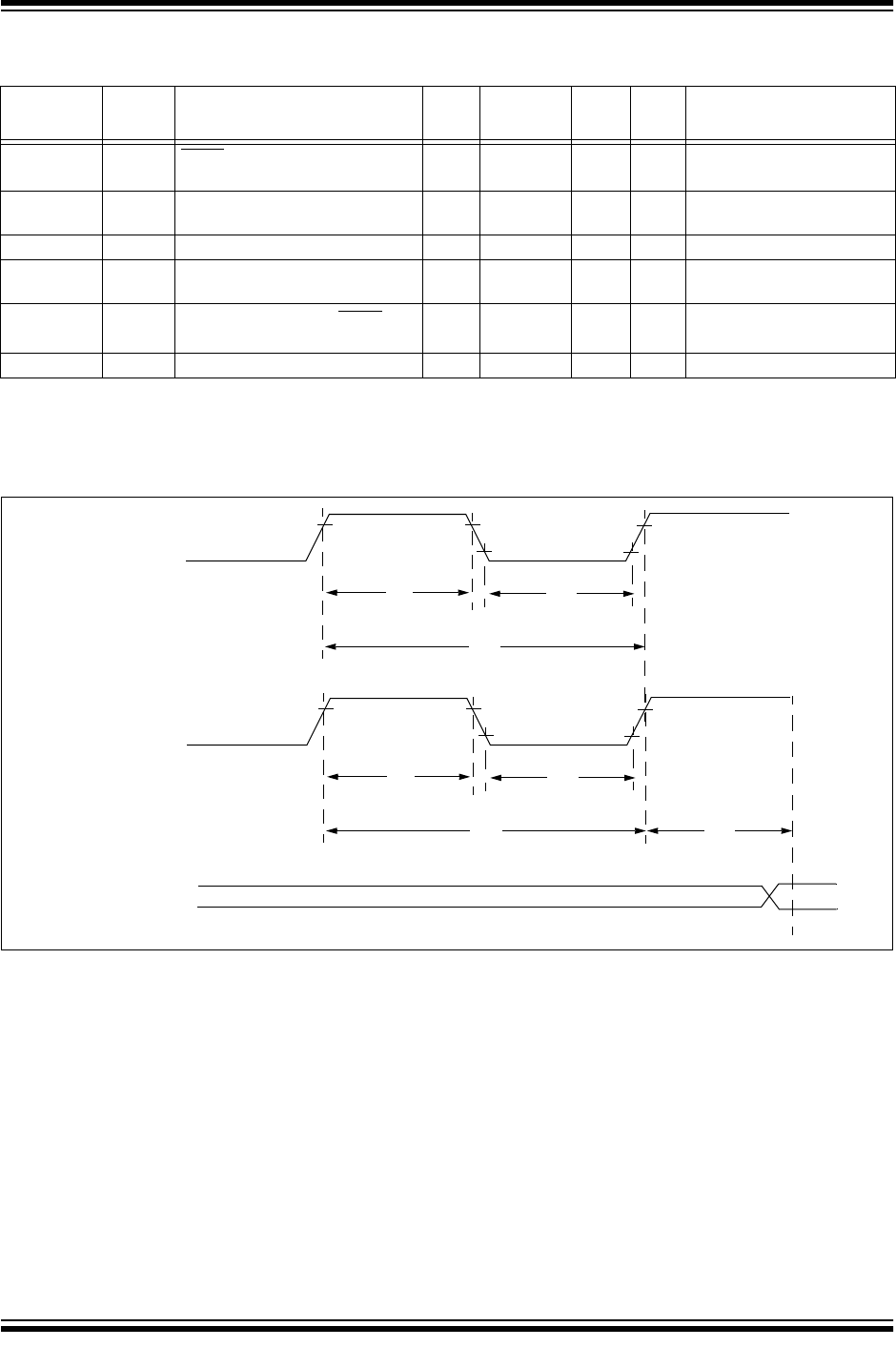

TABLE 17-7: RESET, WATCHDOG TIMER, OSCILLATOR START-UP TIMER AND POWER-UP
TIMER REQUIREMENTS
FIGURE 17-8: TIMER0 AND TIMER1 EXTERNAL CLOCK TIMINGS
Parameter
No.
Sym Characteristic Min Typ† Max Units Conditions
30 TmcL MCLR Pulse Width (low) 2000
TBD
—
TBD
—
TBD
ns
ms
VDD = 5V, -40°C to +85°C
Extended temperature
31 Twdt Watchdog Timer Time out Period
(No Prescaler)
7*
TBD
18
TBD
33*
TBD
ms
ms
V
DD = 5V, -40°C to +85°C
Extended temperature
32 Tost Oscillation Start-up Timer Period — 1024T
OSC ——TOSC = OSC1 period
33 Tpwrt Power-up Timer Period 28*
TBD
72
TBD
132*
TBD
ms
ms
V
DD = 5V, -40°C to +85°C
Extended temperature
34 TIOZ I/O Hi-impedance from MCLR
Low
or Watchdog Timer Reset
— — 2.0* µs
35 T
BOR Brown-out Reset pulse width 100* — — µsVDD ≤ VBOR (D005)
* These parameters are characterized but not tested.
† Data in “Typ” column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance only and are not
tested.
46
47
45
48
41
42
40
RA4/T0CKI
RB6/T1OSO/T1CKI
TMR0 OR
TMR1
