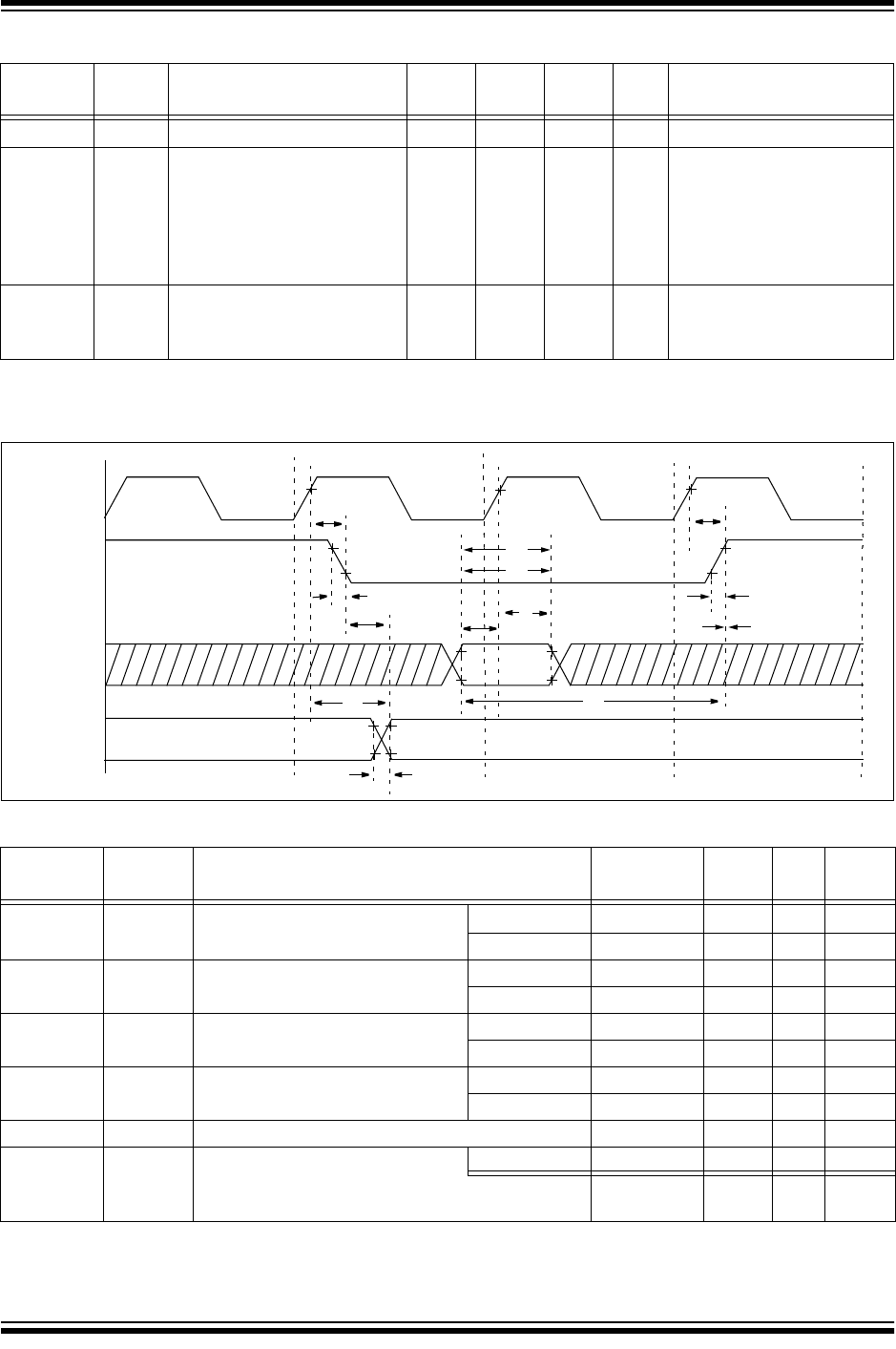

2002 Microchip Technology Inc. Preliminary DS40044A-page 141
PIC16F627A/628A/648A
TABLE 17-5: PRECISION INTERNAL OSCILLATOR PARAMETERS
FIGURE 17-5: CLKOUT AND I/O TIMING
TABLE 17-6: CLKOUT AND I/O TIMING REQUIREMENTS
Parameter
No.
Sym Characteristic Min Typ Max Units Conditions
F10 F
IOSC Oscillator Center frequency
—4—MHz
F13
∆IOSC Oscillator Stability (jitter)
——±1%V
DD = 3.5 V, 25°C
——±2 % 2.0 V ≤ V
DD ≤ 5.5V
0°C ≤ T
A ≤ +85°C
——±5 % 2.0 V ≤ V
DD ≤ 5.5V
-40°C ≤ T
A ≤ +85°C (IND)
-40°C ≤ T
A ≤ +125°C (EXT)
F14
TIOSCST
Oscillator Wake-up from
SLEEP start-up time
—6TBDµsV
DD = 2.0V, -40°C to +85°C
—4TBDµsV
DD = 3.0V, -40°C to +85°C
—3TBDµsV
DD = 5.0V, -40°C to +85°C
Parameter
No.
Sym Characteristic Min Typ† Max Units
10 TosH2ckL OSC1↑ to CLKOUT↓ PIC16F62X — 75 200* ns
10A PIC16LF62X — — 400* ns
11 TosH2ckH OSC1↑ to CLKOUT↑ PIC16F62X — 75 200* ns
11A PIC16LF62X — — 400* ns
12 TckR CLKOUT rise time PIC16F62X — 35 100* ns
12A PIC16LF62X — — 200* ns
13 TckF CLKOUT fall time PIC16F62X — 35 100* ns
13A PIC16LF62X — — 200* ns
14 TckL2ioV CLKOUT ↓ to Port out valid — — 20* ns
15 TioV2ckH Port in valid before PIC16F62X Tosc+200 ns* — — ns
18 TosH2ioI OSC1↑ (Q2 cycle) to Port input invalid
(I/O in hold time)
100*
200*
——ns
* These parameters are characterized but not tested.
† Data in “Typ” column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance
only and are not tested.
OSC1
CLKOUT
I/O PIN
(INPUT)
I/O PIN
(OUTPUT)
Q4
Q1
Q2 Q3
10
13
14
17
20, 21
22
23
19
18
15
11
12
16
OLD VALUE
NEW VALUE
