2002 Microchip Technology Inc. Preliminary DS40044A-page 139
PIC16F627A/628A/648A
17.5 Timing Parameter Symbology
The timing parameter symbols have been created with one of the following formats:

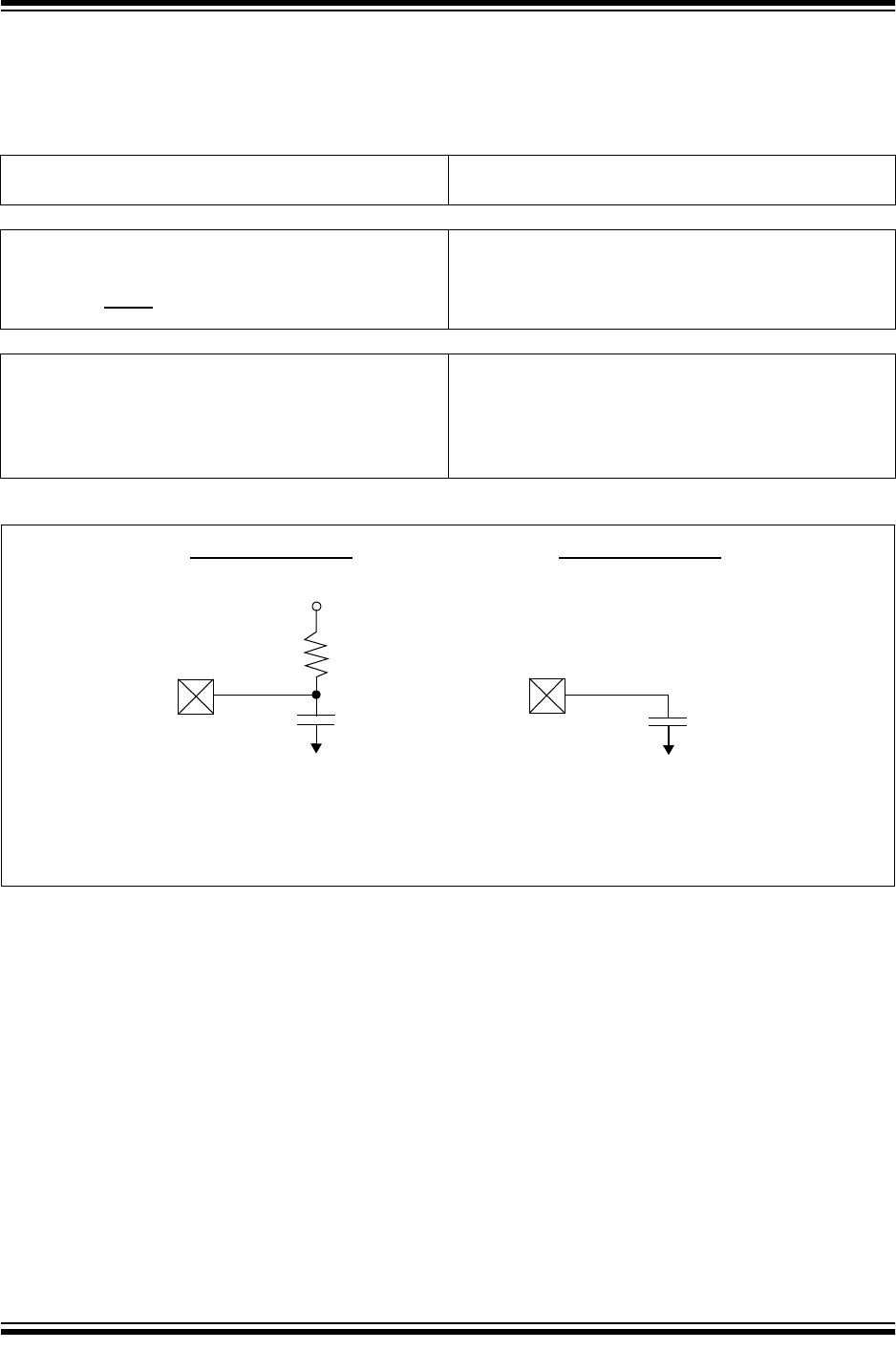

FIGURE 17-3: LOAD CONDITIONS
1. TppS2ppS
2. TppS
T
F Frequency T Time
Lowercase subscripts (pp) and their meanings:
pp
ck CLKOUT osc OSC1
io I/O port t0 T0CKI
mc MCLR
Uppercase letters and their meanings:
S
F Fall P Period
H High R Rise
I Invalid (Hi-impedance) V Valid
L Low Z Hi-Impedance
VDD/2
CL
RL
PIN PIN
V
SS
VSS
CL
R
L =464Ω
C
L = 50 pF for all pins except OSC2
15 pF for OSC2 output
LOAD CONDITION 1
LOAD CONDITION 2
