PIC16F627A/628A/648A
DS40044A-page 102 Preliminary 2002 Microchip Technology Inc.

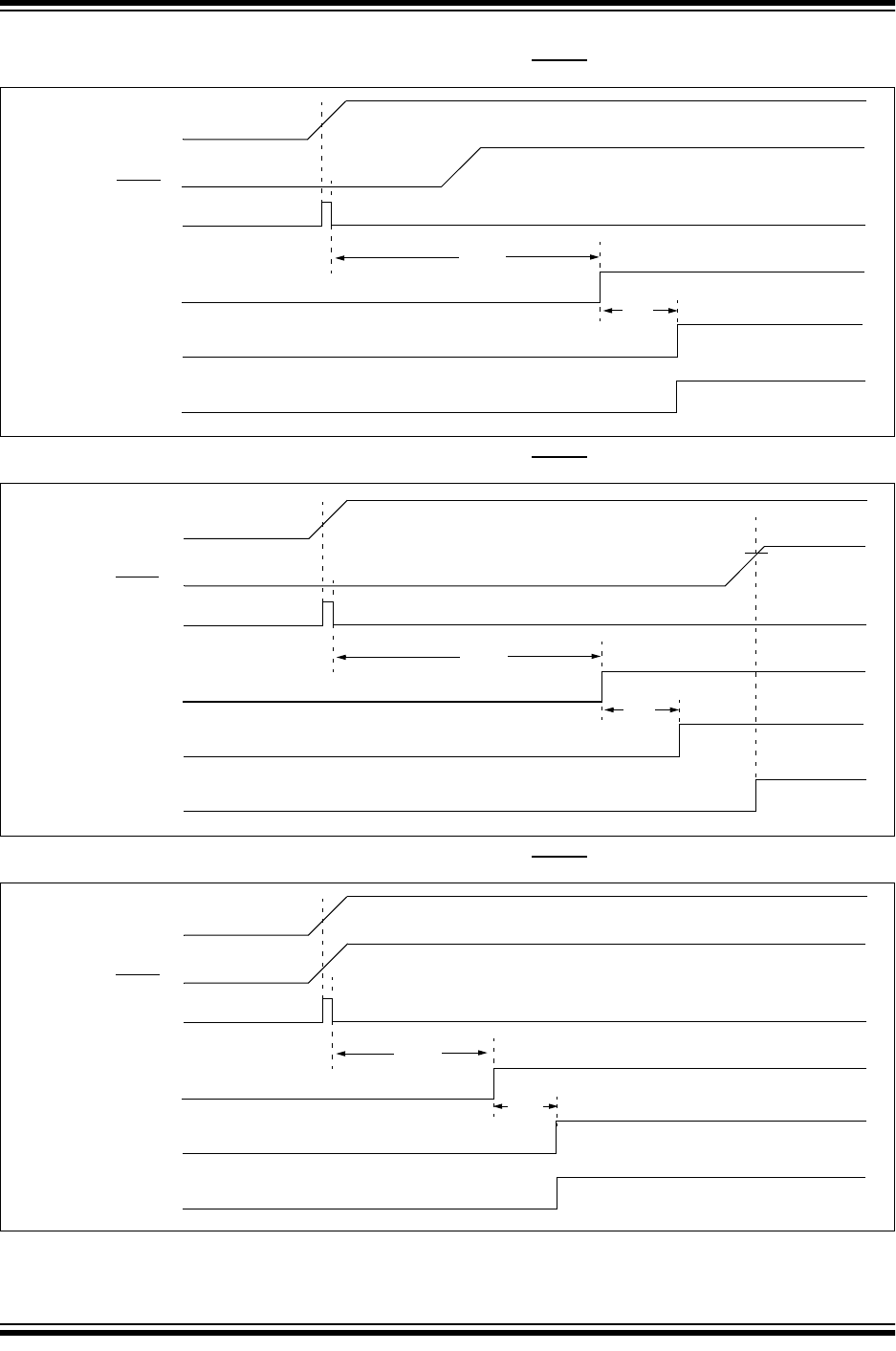

FIGURE 14-8: TIME OUT SEQUENCE ON POWER-UP (MCLR NOT TIED TO VDD): CASE
FIGURE 14-9: TIME OUT SEQUENCE ON POWER-UP (MCLR
NOT TIED TO VDD): CASE 2
FIGURE 14-10: TIME OUT SEQUENCE ON POWER-UP (MCLR
TIED TO VDD)
Tpwrt
Tos t
VDD
MCLR
INTERNAL POR
PWRT TIME OUT
OST TIME OUT
INTERNAL RESET
VDD
MCLR
INTERNAL POR
PWRT TIME OUT
OST TIME OUT
INTERNAL RESET
Tpwrt
Tos t
Tpwrt
Tos t
V
DD
MCLR
INTERNAL POR
PWRT TIME OUT
OST TIME OUT
INTERNAL RESET
