MCP3905A/05L/06A
Note: Unless otherwise specified, DV
DD
, AV
DD
= 5V; A
GND
, D
GND
= 0V; V
REF
= Internal, HPF = 1 (AC mode),
MCLK = 3.58 MHz.

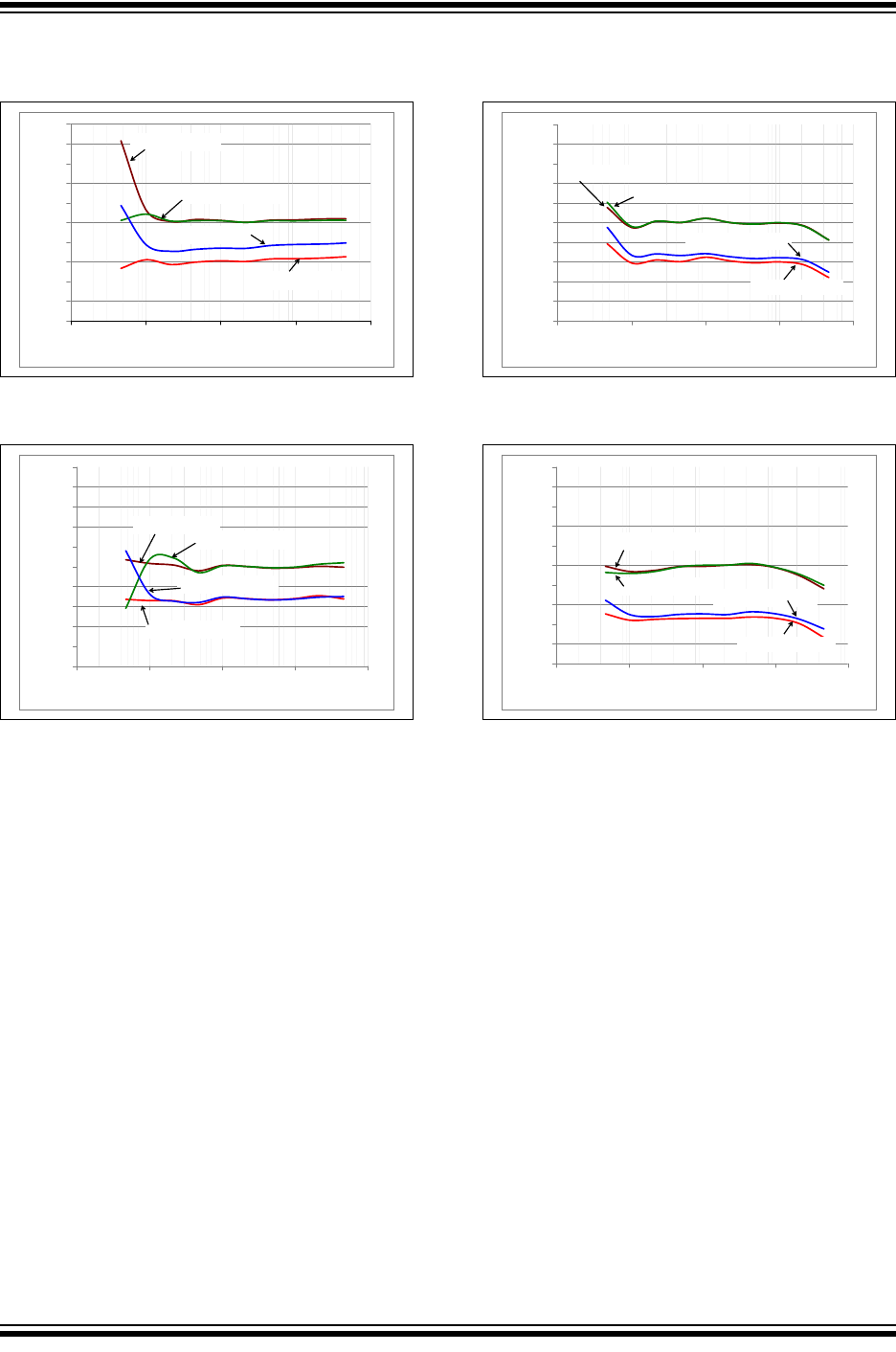

FIGURE 2-11: Measurement Error,
Temperature = +125°C, Gain = 1.
FIGURE 2-12: Measurement Error,
Temperature = +125°C, Gain = 2.
FIGURE 2-13: Measurement Error,
Temperature = +125°C, Gain = 8.
FIGURE 2-14: Measurement Error,
Temperature = +125°C, Gain = 16.
-1
-0.8
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
1
0.0001 0.001 0.01 0.1 1
CH1 Vp-p Amplitude (V)
Measurement Error (%)
+25°C; PF = 1
+25°C; PF = 0.5
+125°C; PF = 0.5
+125°C; PF = 1
-1
-0.8
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
1
0.0001 0.001 0.01 0.1 1
CH1 Vp-p Amplitude (V)
Measurement Error (%)
+25°C; PF = 1
+25°C; PF = 0.5
+125°C; PF = 1
+125°C; PF = 0.5
-1
-0.8
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
1
0.0001 0.001 0.01 0.1 1
CH1 Vp-p Amplitude (V)
Measurement Error (%)
+125°C; PF = 1
+125°C; PF = 0.5
+25°C; PF = 1
+25°C; PF = 0.5
-1
-0.8
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
1
0.0001 0.001 0.01 0.1 1
CH1 Vp-p Amplitude (V)
Measurement Error (%)
+25°C; PF = 1
+25°C; PF = 0.5
+125°C; PF = 1
+125°C; PF = 0.5
