© 2011 Microchip Technology Inc. DS70143E-page 181
dsPIC30F6011A/6012A/6013A/6014A

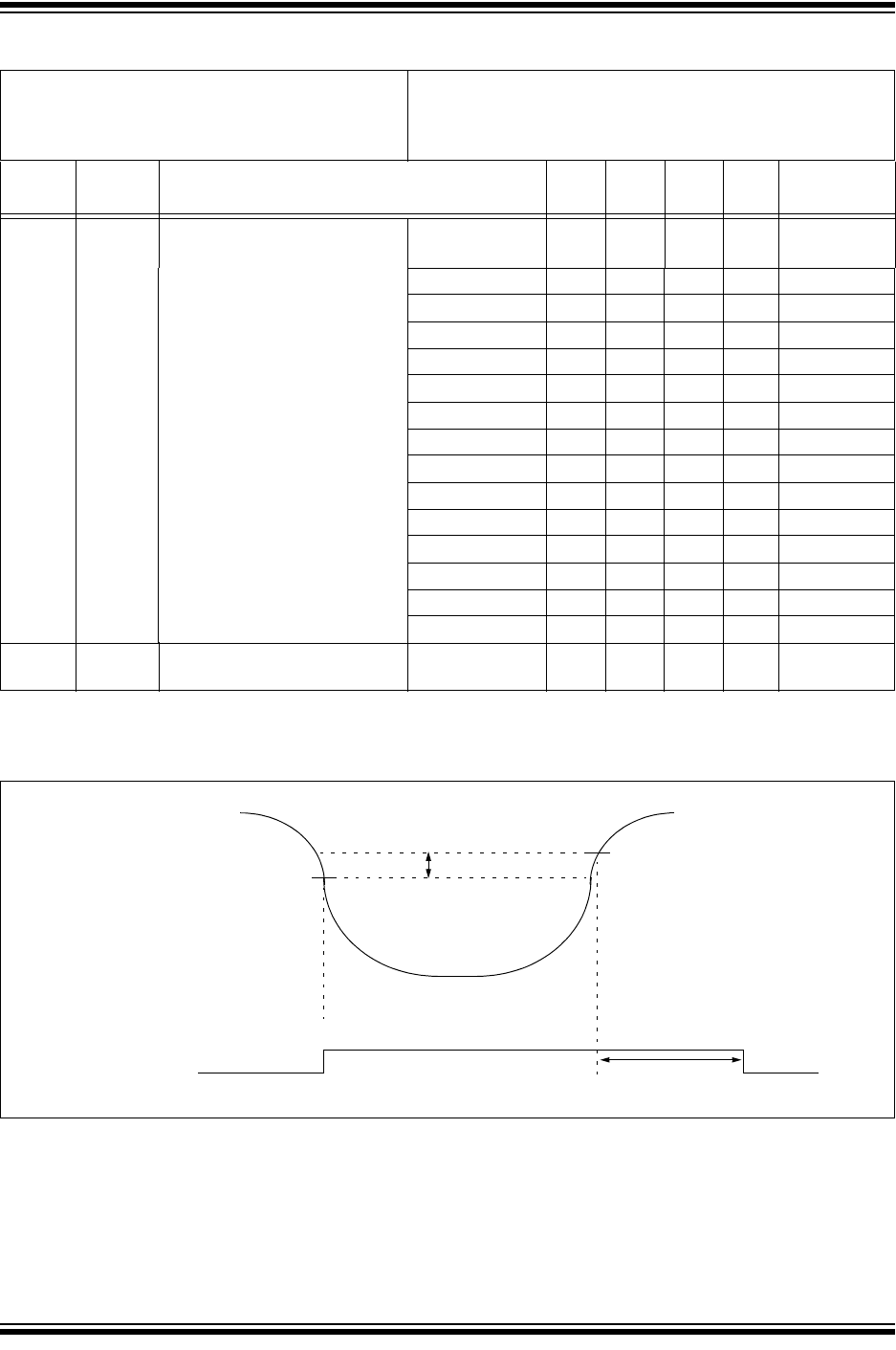

FIGURE 23-2: BROWN-OUT RESET CHARACTERISTICS
TABLE 23-10: ELECTRICAL CHARACTERISTICS: LVDL
DC CHARACTERISTICS
Standard Operating Conditions: 2.5V to 5.5V
(unless otherwise stated)
Operating temperature -40°C ≤ TA ≤ +85°C for Industrial
-40°C ≤ T
A ≤ +125°C for Extended
Param
No.
Symbol Characteristic
(1)
Min Typ Max Units Conditions
LV10 V
PLVD LVDL Voltage on VDD transition
high to low
LVDL = 0000
(2)
———V
LVDL = 0001
(2)
———V
LVDL = 0010
(2)
———V
LVDL = 0011
(2)
———V
LVDL = 0100 2.50 — 2.65 V
LVDL = 0101 2.70 — 2.86 V
LVDL = 0110 2.80 — 2.97 V
LVDL = 0111 3.00 — 3.18 V
LVDL = 1000 3.30 — 3.50 V
LVDL = 1001 3.50 — 3.71 V
LVDL = 1010 3.60 — 3.82 V
LVDL = 1011 3.80 — 4.03 V
LVDL = 1100 4.00 — 4.24 V
LVDL = 1101 4.20 — 4.45 V
LVDL = 1110 4.50 — 4.77 V
LV15 V
LVDIN External LVD input pin
threshold voltage
LVDL = 1111 ———V
Note 1: These parameters are characterized but not tested in manufacturing.
2: These values not in usable operating range.
BO10
Reset (due to BOR)
V
DD
(Device in Brown-out Reset)
(Device not in Brown-out Reset)
Power Up Time-out
BO15
