dsPIC30F6011A/6012A/6013A/6014A
DS70143E-page 180 © 2011 Microchip Technology Inc.

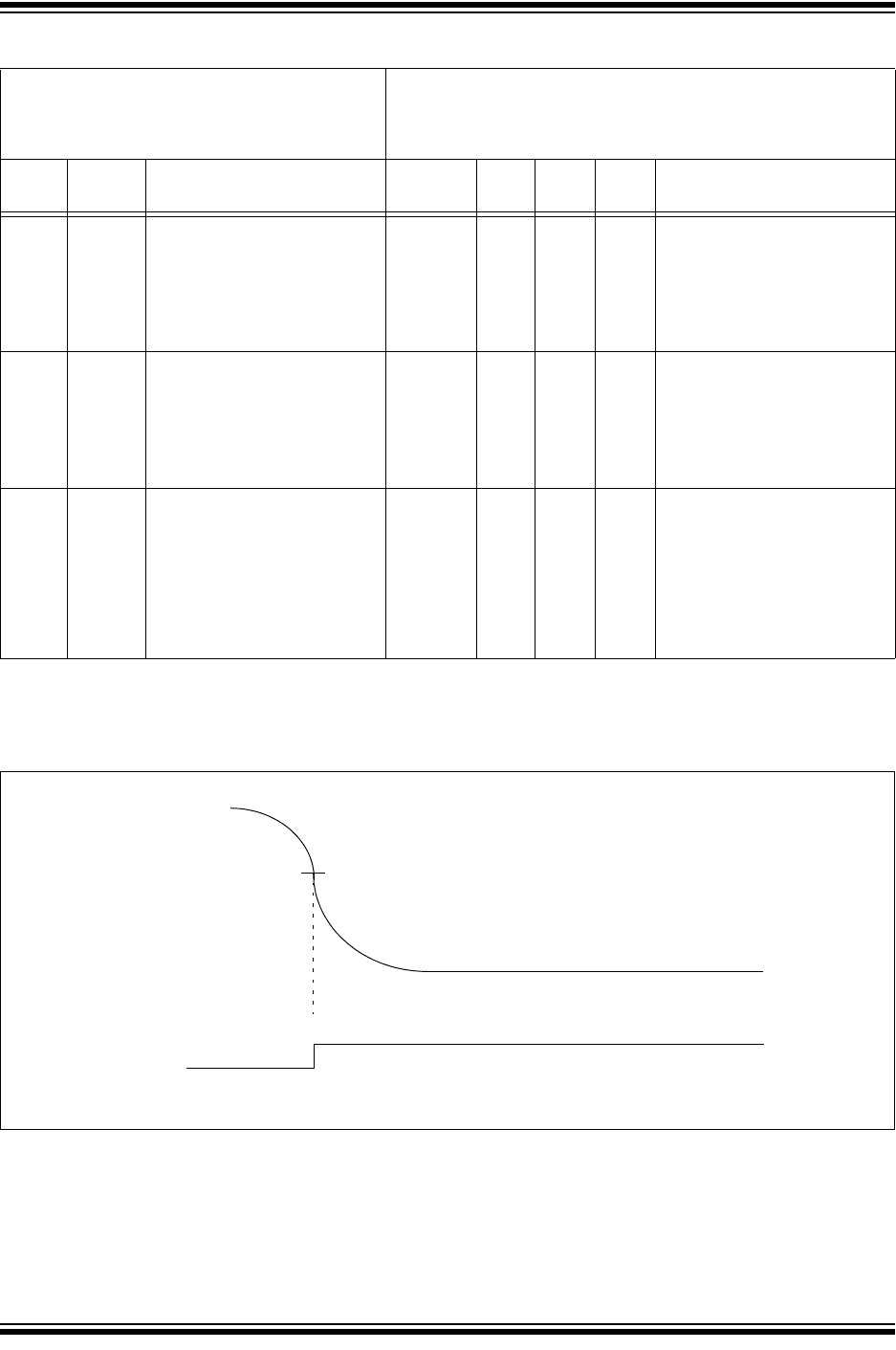

FIGURE 23-1: LOW-VOLTAGE DETECT CHARACTERISTICS
TABLE 23-9: DC CHARACTERISTICS: I/O PIN OUTPUT SPECIFICATIONS
DC CHARACTERISTICS
Standard Operating Conditions: 2.5V to 5.5V
(unless otherwise stated)
Operating temperature -40°C ≤ TA ≤ +85°C for Industrial
-40°C ≤ TA ≤ +125°C for Extended
Param
No.
Symbol Characteristic Min Typ
(1)
Max Units Conditions
V
OL Output Low Voltage
(2)
DO10 I/O ports — — 0.6 V IOL = 8.5 mA, VDD = 5V
— — 0.15 V I
OL = 2.0 mA, VDD = 3V
DO16 OSC2/CLKOUT — — 0.6 V I
OL = 1.6 mA, VDD = 5V
(RC or EC Osc mode) — — 0.72 V IOL = 2.0 mA, VDD = 3V
V
OH Output High Voltage
(2)
DO20 I/O ports VDD – 0.7 — — V IOH = -3.0 mA, VDD = 5V
V
DD – 0.2 — — V IOH = -2.0 mA, VDD = 3V
DO26 OSC2/CLKOUT VDD – 0.7 — — V IOH = -1.3 mA, VDD = 5V
(RC or EC Osc mode) V
DD – 0.1 — — V IOH = -2.0 mA, VDD = 3V
Capacitive Loading Specs
on Output Pins
(2)
DO50 COSC2 OSC2/SOSC2 pin — — 15 pF In XTL, XT, HS and LP modes
when external clock is used to
drive OSC1.
DO56 CIO All I/O pins and OSC2 — — 50 pF RC or EC Osc mode
DO58 C
B SCL, SDA — — 400 pF In I
2
C™ mode
Note 1: Data in “Typ” column is at 5V, 25°C unless otherwise stated. Parameters are for design guidance only and
are not tested.
2: These parameters are characterized but not tested in manufacturing.
LV10
LVDIF
V
DD
(LVDIF set by hardware)
