dsPIC30F6011/6012/6013/6014
DS70117F-page 186 © 2006 Microchip Technology Inc.

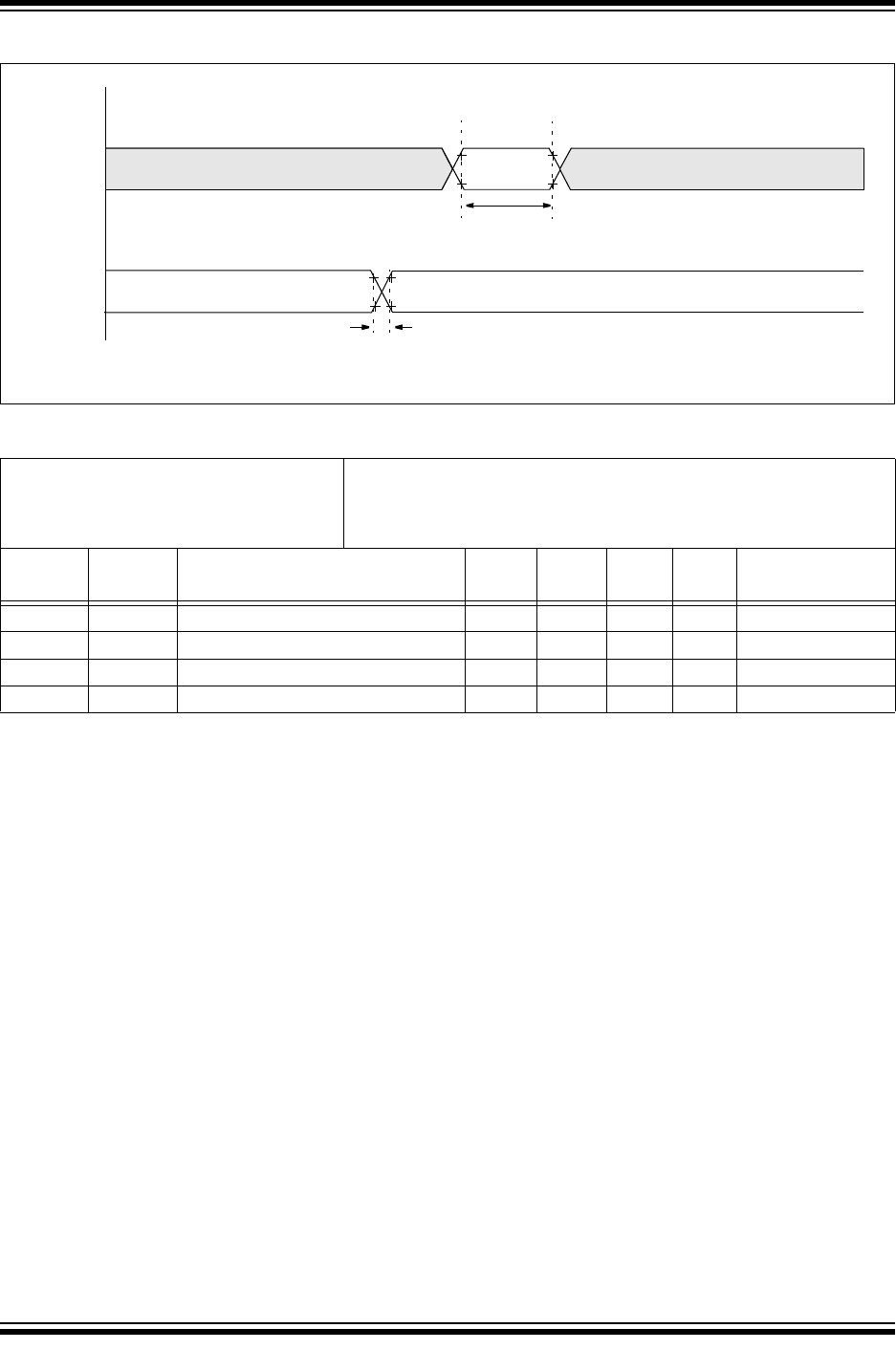

FIGURE 23-5: CLKO AND I/O TIMING CHARACTERISTICS
Note: Refer to Figure 23-3 for load conditions.
I/O Pin
(Input)
I/O Pin
(Output)
DI35
Old Value
New Value
DI40
DO31
DO32
TABLE 23-20: CLKO AND I/O TIMING REQUIREMENTS
AC CHARACTERISTICS
Standard Operating Conditions: 2.5V to 5.5V
(unless otherwise stated)
Operating temperature -40°C ≤ TA ≤ +85°C for Industrial
-40°C ≤ T
A ≤ +125°C for Extended
Param
No.
Symbol Characteristic
(1)(2)(3)
Min Typ
(4)
Max Units Conditions
DO31 T
IOR Port output rise time — 7 20 ns —
DO32 TIOF Port output fall time — 7 20 ns —
DI35 T
INP INTx pin high or low time (output) 20 — — ns —
DI40 TRBP CNx high or low time (input) 2 TCY ——ns —
Note 1: These parameters are asynchronous events not related to any internal clock edges
2: Measurements are taken in RC mode and EC mode where CLKO output is 4 x T
OSC.
3: These parameters are characterized but not tested in manufacturing.
4: Data in “Typ” column is at 5V, 25°C unless otherwise stated.
