© 2011 Microchip Technology Inc. DS70143E-page 197
dsPIC30F6011A/6012A/6013A/6014A

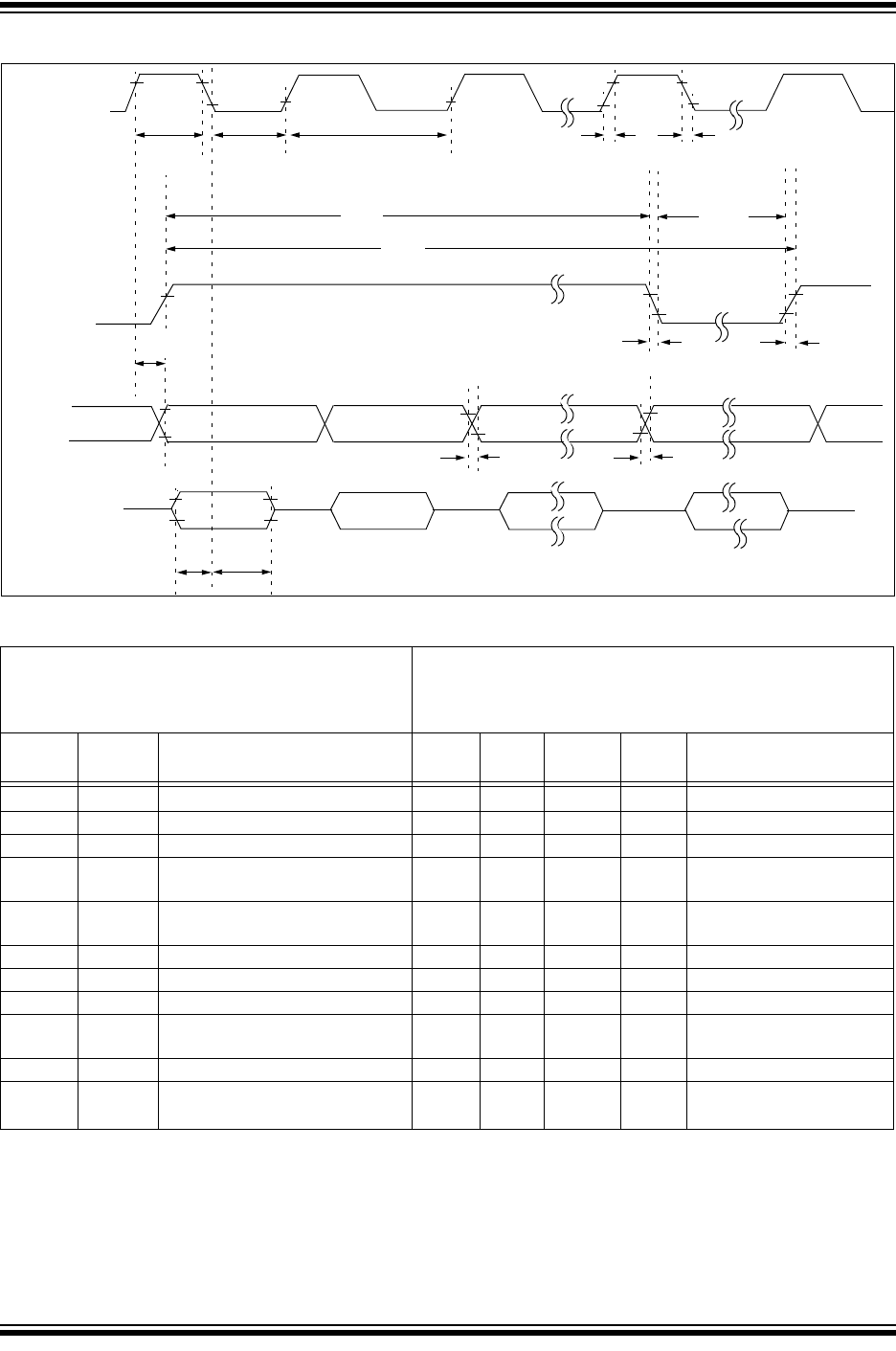

FIGURE 23-13: DCI MODULE (AC-LINK MODE) TIMING CHARACTERISTICS
TABLE 23-30: DCI MODULE (AC-LINK MODE) TIMING REQUIREMENTS
AC CHARACTERISTICS
Standard Operating Conditions: 2.5V to 5.5V
(unless otherwise stated)
Operating temperature -40°C ≤ TA ≤ +85°C for Industrial
-40°C ≤ TA ≤ +125°C for Extended
Param
No.
Symbol Characteristic
(1)(2)
Min Typ
(3)
Max Units Conditions
CS60 T
BCLKL BIT_CLK Low Time 36 40.7 45 ns
CS61 T
BCLKH BIT_CLK High Time 36 40.7 45 ns
CS62 T
BCLK BIT_CLK Period — 81.4 — ns Bit clock is input
CS65 T
SACL Input Setup Time to
Falling Edge of BIT_CLK
—— 10 ns
CS66 T
HACL Input Hold Time from
Falling Edge of BIT_CLK
—— 10 ns
CS70 T
SYNCLO SYNC Data Output Low Time — 19.5 — μs Note 1
CS71 T
SYNCHI SYNC Data Output High Time — 1.3 — μs Note 1
CS72 T
SYNC SYNC Data Output Period — 20.8 — μs Note 1
CS75 T
RACL Rise Time, SYNC,
SDATA_OUT
—10 25 nsCLOAD = 50 pF, VDD = 5V
CS76 T
FACL Fall Time, SYNC, SDATA_OUT — 10 25 ns CLOAD = 50 pF, VDD = 5V
CS80 T
OVDACL Output valid delay from rising
edge of BIT_CLK
—— 15 ns
Note 1: These parameters are characterized but not tested in manufacturing.
2: These values assume BIT_CLK frequency is 12.288 MHz.
3: Data in “Typ” column is at 5V, 25°C unless otherwise stated. Parameters are for design guidance only and
are not tested.
SYNC
BIT_CLK
SDO
SDI
CS61 CS60
CS65 CS66
CS80
CS21
MSb IN
CS75
LSb
CS76
(COFS)
(CSCK)
LSb
MSb
CS72
CS71
CS70
CS76
CS75
(CSDO)
(CSDI)
CS62
CS20
