General Purpose Input/Output Labs
© 2009 Microchip Technology Inc. DS41369A-page 23

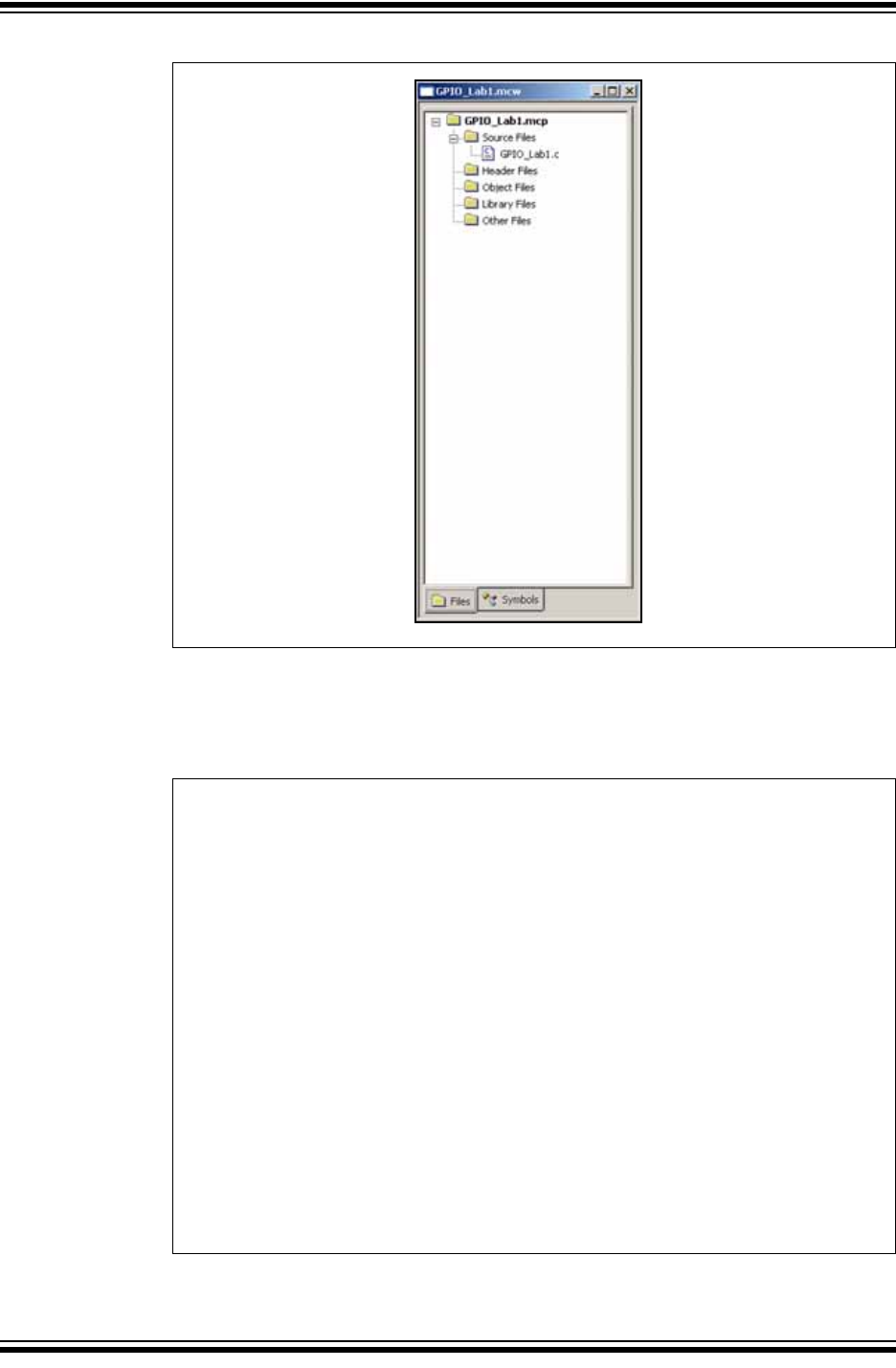

FIGURE 3-8: PROJECT WINDOW
10. Double click on the GPIO_Lab1.c source file in the Project window to open.
11. Copy/paste the code in Example 3-1 into the Initialize() section labeled:
//ADD INITIALIZE CODE HERE
EXAMPLE 3-1: INITIALIZE() CODE FOR LAB 1
//Clear PORTC to a known state
PORTC = 0b00000000;
//Configure PORTC's ANALOG/DIGITAL pins as all Digital
ANS4 = 0;//Associated with RC0
ANS5 = 0;//Associated with RC1
ANS6 = 0;//Associated with RC2
ANS7 = 0;//Associated with RC3
ANS8 = 0;//Associated with RC6
ANS9 = 0;//Associated with RC7
//Configure PORTC pins as all output
//i.e. 1 = Input, 0 = Output
TRISC0 = 0;//Make RC0 (pin 16) output
TRISC1 = 0;//Make RC1 (pin 15) output
TRISC2 = 0;//Make RC2 (pin 14) output
TRISC3 = 0;//Make RC3 (pin 7) output
TRISC4 = 0;//Make RC4 (pin 6) output
TRISC5 = 0;//Make RC5 (pin 5) output
TRISC6 = 0;//Make RC6 (pin 8) output
TRISC7 = 0;//Make RC7 (pin 9) output
