Board Technical Information
2010 Microchip Technology Inc. DS51662C-page 39
TABLE A-14: PIC16F946 LCD CONNECTIONS COMPARISON

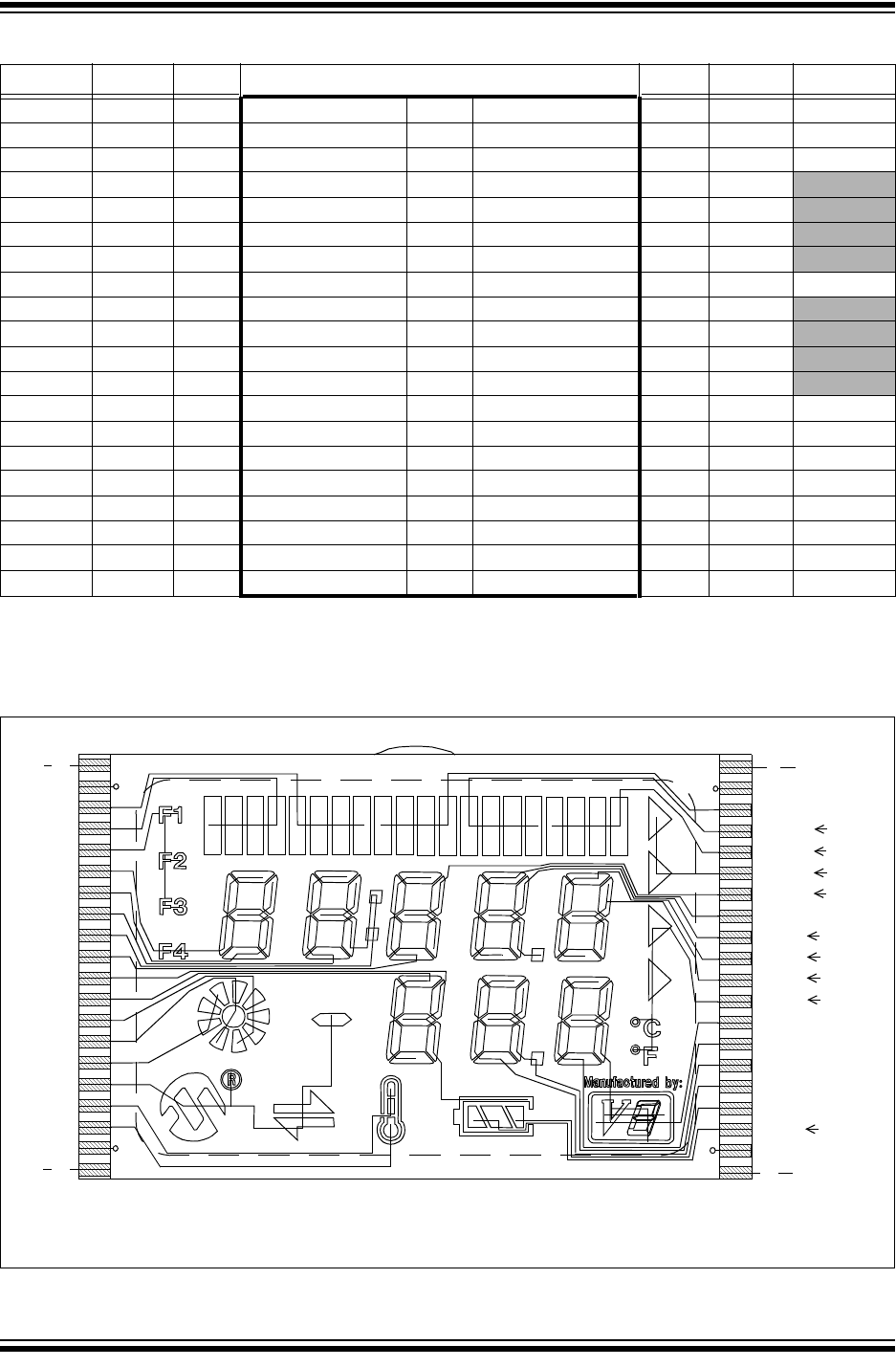

FIGURE A-8: SEGMENT CONFIGURATION FOR PIC16F946 DEVICES
PIC16F946 ICE Pin # Pin # ICE PIC16F946
NC 21 NC NC 20 NC
COM2 COM2 22 COM3 COM2 19 COM1 COM1
SEG16 SEG16 23 X8,X6,X5,X7 X9,X11,X12,X10 18 SEG15 SEG15
SEG17 SEG17 24 X1,X3,X4,X2 X16,X14,X13,X15 17 SEG14
SEG41
SEG18 SEG18 25 -,F2,F1,F3 X17,X19,X20,X18 16 SEG13
SEG40
SEG19 SEG19 26 1A,1E,F4,1F -,X22,X21,- 15 SEG12
SEG39
SEG20 SEG20 27 1B,1C,1D,1G 3B,3C,-,3G 14 SEG11
SEG38
SEG21 SEG21 28 2A,2E,2D,2F 4A,4E,4D,4F 13 SEG10 SEG10
SEG22 SEG22 29 2B,2C,COL,2G 4B,4C,DP1,4G 12 SEG9
SEG37
SEG23 SEG23 30 3A,3E,3D,3F 5A,5E,5D,5F 11 SEG8
SEG36
SEG24 SEG24 31 S9,6G,6B,6C 5B,5C,-,5G 10 SEG7
SEG35
SEG25 SEG25 32 6D,6F,6A,6E X23,X25,X26,X24 9 SEG6
SEG34
SEG26 SEG26 33 X31,X33,X34,X32 S13,8G,8B,8C 8 SEG5 SEG5
SEG27 SEG27 34 -,X27,X35,X30 8D,8F,8A,8E 7 SEG4 SEG4
SEG28 SEG28 35 -,X28,X36,X29 DP2,7G,7B,7C 6 SEG3 SEG3
SEG29 SEG29 36 S1,S3,S4,S2 7D,7F,7A,7E 5 SEG2 SEG2
SEG30 SEG30 37 S6,-,-,S7 S11,-,-,- 4 SEG1 SEG1
SEG31 SEG31 38 S5,-,-S8 S12,-,-,S10 3 SEG0 SEG33
COM3 COM3 39 COM4 COM1 2 COM0 COM0
NC 40 NC NC 1 NC
Legend: Unshaded cells indicate a perfect match between the PIM and the glass.
Shaded cells indicate the pins that are remapped to the corresponding pin on the PIM.
40
N.C.
21
N.C.
20
N.C.
1
N.C.
COM1
SEG15
SEG14
(1)
SEG41
SEG13
(1)
SEG40
SEG12
(1)
SEG39
SEG11
(1)
SEG38
SEG10
SEG9
(1)
SEG37
SEG8
(1)
SEG36
SEG7
(1)
SEG35
SEG6
(1)
SEG34
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
(1)
SEG33
COM0
COM2
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25
SEG26
SEG27
SEG28
SEG29
SEG30
SEG31
COM3
Legend: N.C. = No connection
Note 1: Disable SEG0, SEG6, SEG7, SEG8, SEG9, SEG11, SEG12, SEG13 and SEG14 when the LCD module is enabled.
