CY920 Getting Started Guide

DS50002260B-page 22 Preliminary  2014 Microchip Technology Inc.

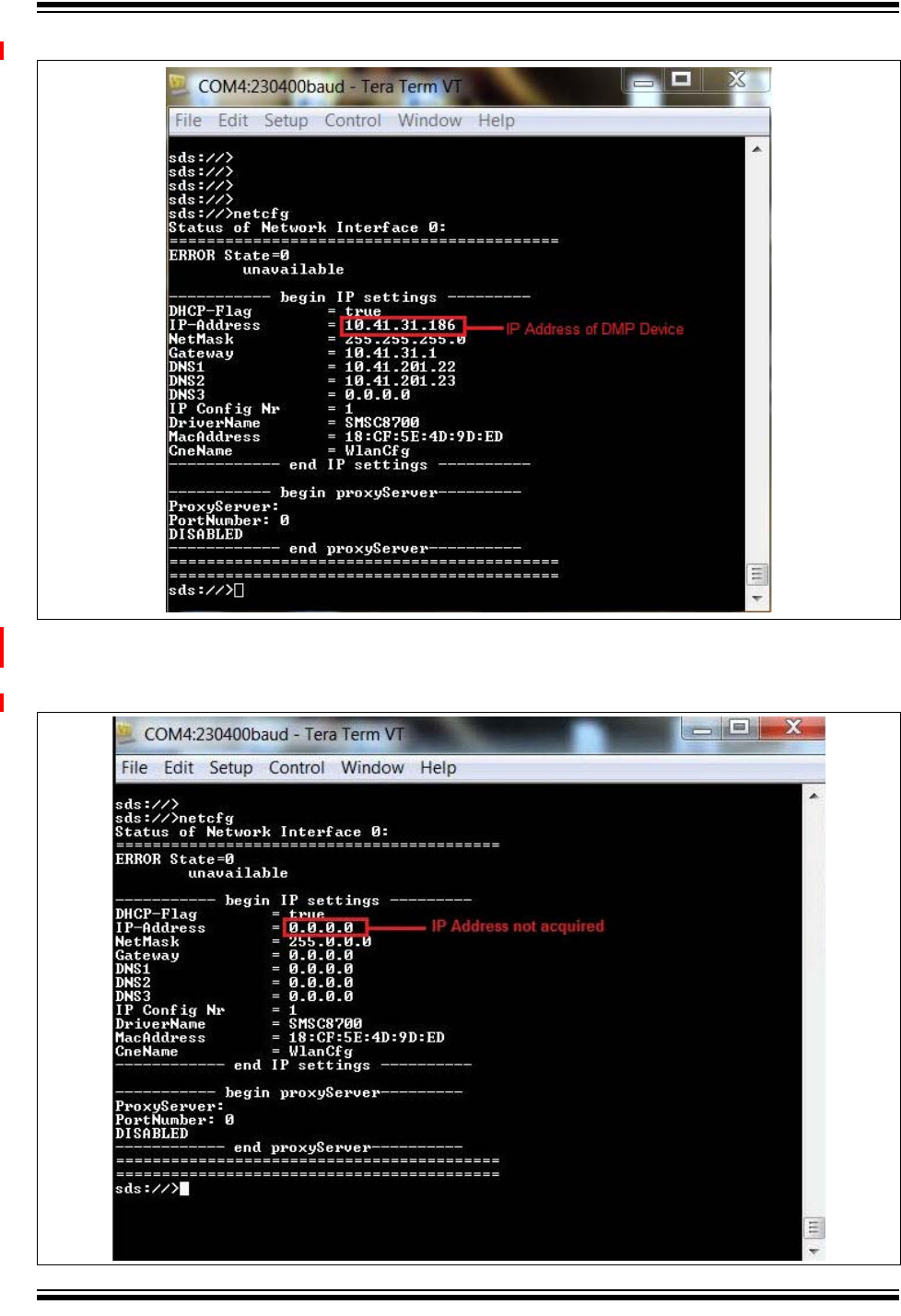

FIGURE 3-1: DISPLAYING ACQUIRED IP ADDRESS

7. If IP address of the DMP device is not acquired, IP address will not be displayed

on the window, see Figure 3-2.

FIGURE 3-2: DISPLAY WHEN IP ADDRESS NOT ACQUIRED
