Chapter 2. Evaluating CY920 Board
This chapter describes evaluating the CY920 module using the CE2 board. The CY920
module is not a stand-alone module and it must be hosted on an interconnect card
before connecting it to the CE2 board. The following sections provide prerequisites for
connecting the CE2 board and various inputs and outputs interfaces:
• EVM CE2 board with two antennas
• Interconnect card
• Authentication co-processor ACP 2.0C (compatible with the CE2 board)
• Power adapter (supplied along with the CE2 board (9V/2.0A))
• USB to serial converter for UART connection between computer and CE2 board
• Speaker or headphone
• Wi-Fi Access Point (AP)
2.1 CONNECTING CY920 MODULE, CE2 BOARD, AND INTERCONNECT CARD
To connect the CY920 module, CE2 board and interconnect card, follow these steps:
1. Connect the CY920 module to the interconnect card as shown in Figure 2-1.

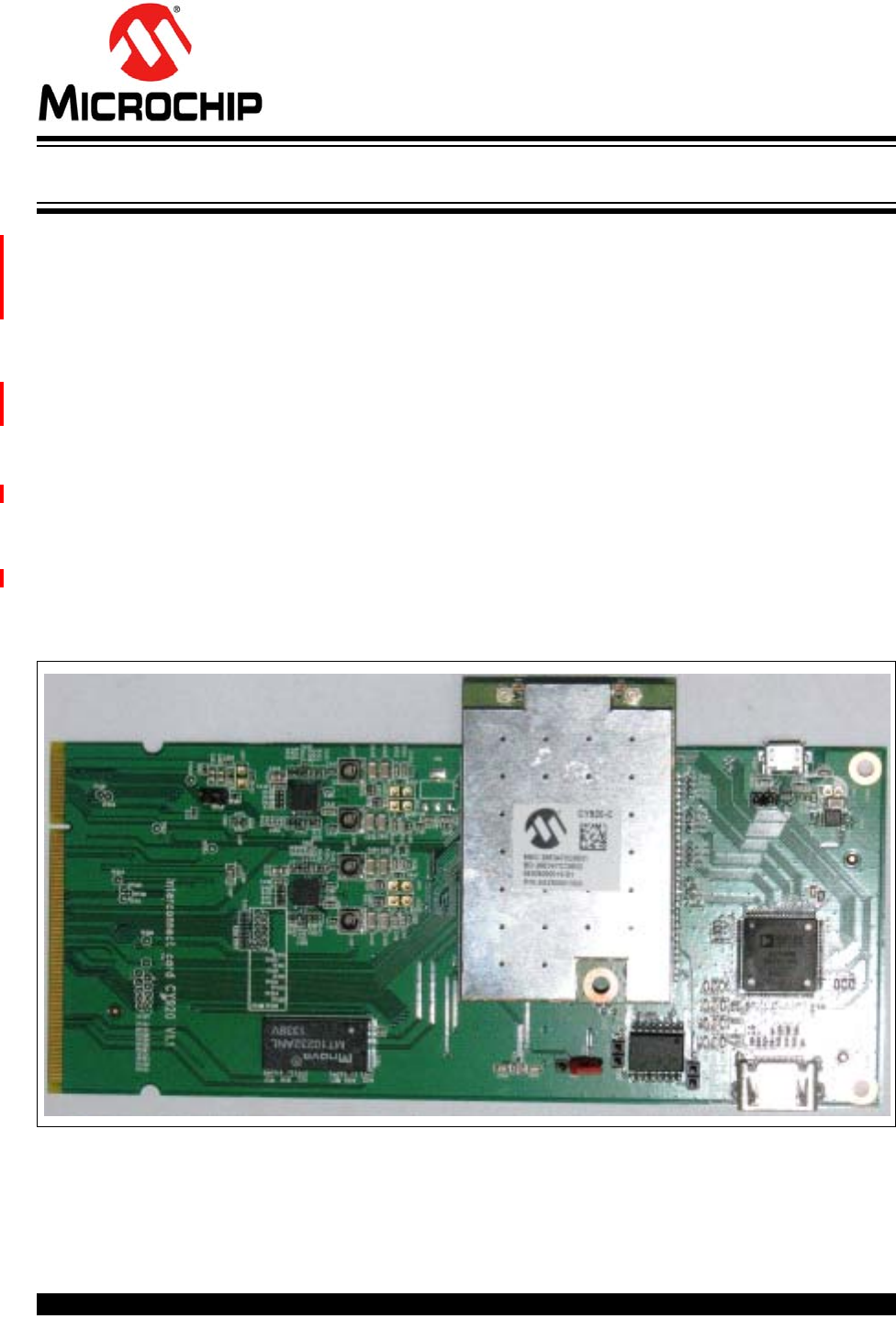

FIGURE 2-1: CY920 MODULE AND INTERCONNECT CARD ASSEMBLY
