1.3 EVALUATION BOARD FUNCTIONALITY AND FEATURES
The Evaluation board (CE2) is a development base board with all the input and output
interfaces to the CY920 module.The CE2 board has the following key features, as
indicated by the corresponding numbers in Figure 1-4.
1. Antenna Upgrade Kit for connecting the external RF antennas to the CE2 board.
The Antenna Upgrade Kit includes two antennas and extended connecting
cables to the module.
2. X2 connector, mounted on the CE2 board for inserting the CY920 interconnect
card.
3. USB to serial adapter or RS232 cable connection to the CE2 board
4. Ethernet cable connection to the CE2 board
5. Ultra Small Surface Mount Coaxial (U.FL) connectors, used for connecting the
external RF antennas
6. Speaker or headphone connection to the CE2 board
7. I/O Expander card connection at the X13 location (tuner module connector) on
the CE2 board.
8. ACP 2.0C connection to the CE2 board

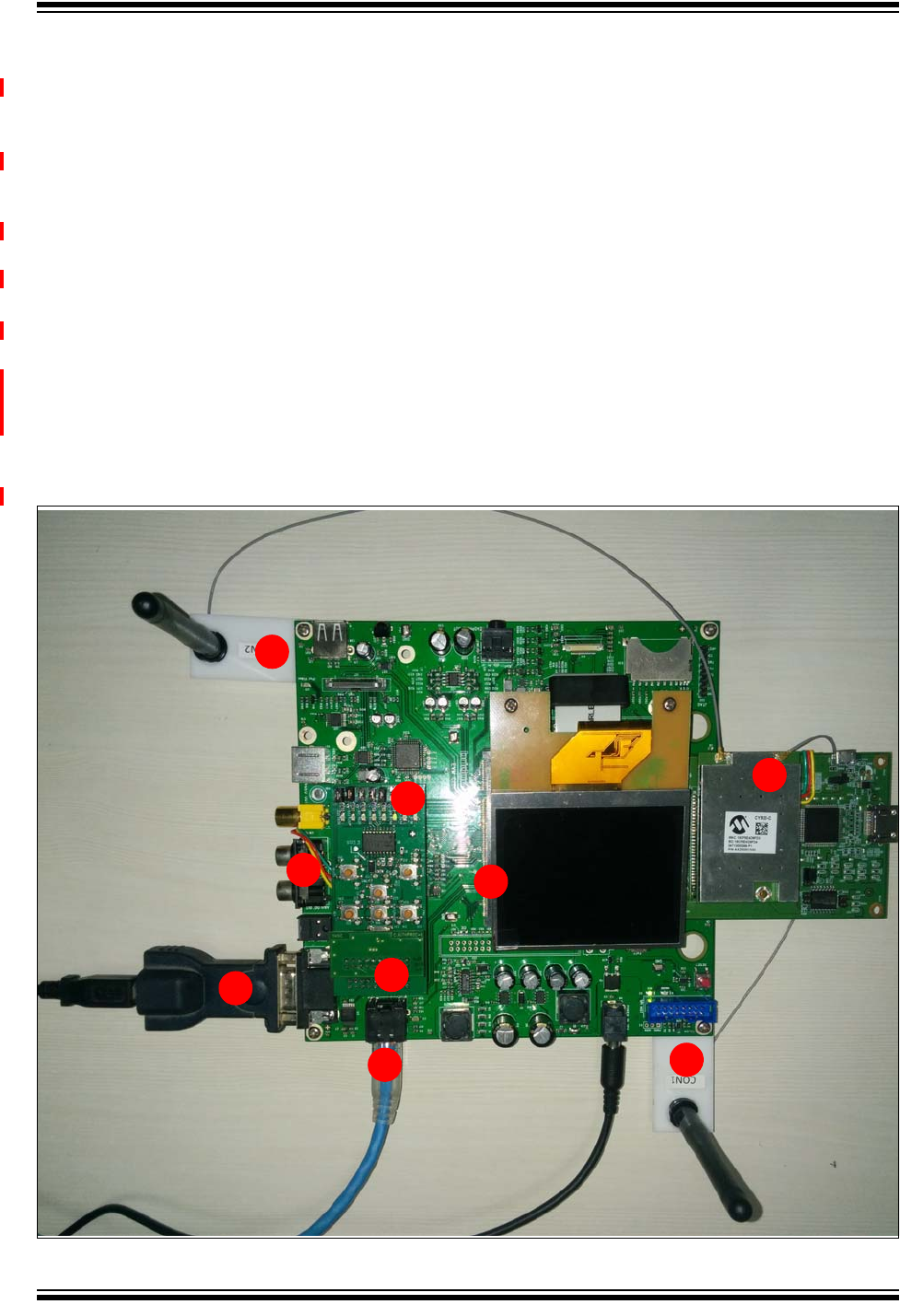

FIGURE 1-4: EVALUATION BOARD WITH VARIOUS CONNECTIONS
1
1
2
3
4
5
6
7
8
