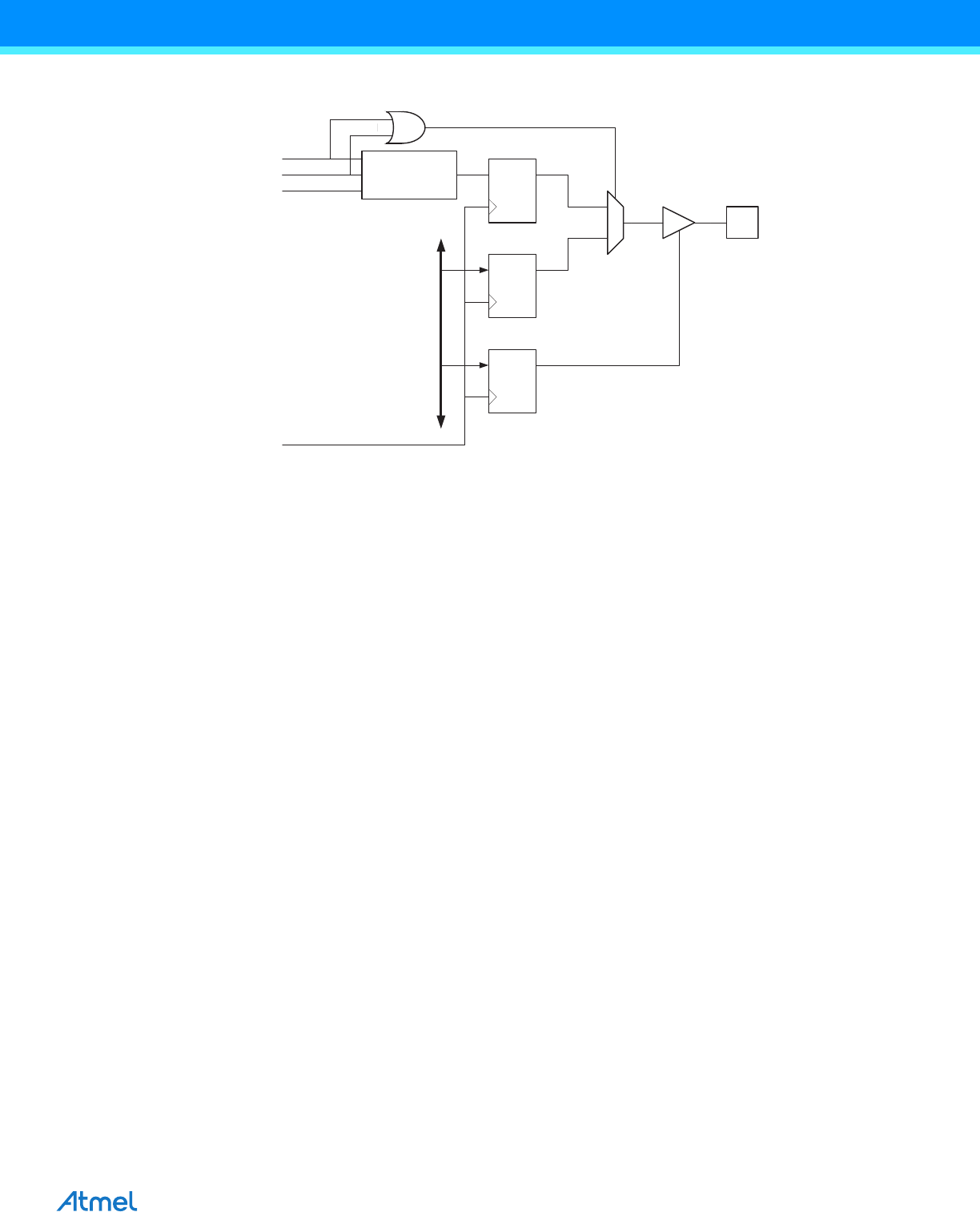

Figure 15-4. Compare Match Output Unit, Schematic
The general I/O port function is overridden by the Output Compare (OC0) from the Waveform Generator if either of
the COM0[1:0] bits are set. However, the OC0 pin direction (input or output) is still controlled by the Data Direction
Register (DDR) for the port pin. The Data Direction Register bit for the OC0 pin (DDR_OC0) must be set as output
before the OC0 value is visible on the pin. The port override function is independent of the Waveform Generation
mode.
The design of the output compare pin logic allows initialization of the OC0 state before the output is enabled. Note
that some COM01:0 bit settings are reserved for certain modes of operation. See “Register Description” on page
84.
15.6.1 Compare Output Mode and Waveform Generation
The Waveform Generator uses the COM0[1:0] bits differently in normal, CTC, and PWM modes. For all modes,
setting the COM0[1:0] = 0 tells the waveform generator that no action on the OC0 Register is to be performed on
the next compare match. For compare output actions in the non-PWM modes refer to Table 14-3 on page 85. For
fast PWM mode, refer to Table 14-4 on page 85, and for phase correct PWM refer to Table 14-5 on page 86.
A change of the COM0[1:0] bits state will have effect at the first compare match after the bits are written. For non-
PWM modes, the action can be forced to have immediate effect by using the FOC0 strobe bits.
15.7 Modes of Operation
The mode of operation, that is, the behavior of the Timer/Counter and the Output Compare pins, is defined by the
combination of the Waveform Generation mode (WGM01:0) and Compare Output mode (COM0[1:0]) bits. The
Compare Output mode bits do not affect the counting sequence, while the Waveform Generation mode bits do.
The COM0[1:0] bits control whether the PWM output generated should be inverted or not (inverted or non-inverted
PWM). For non-PWM modes the COM0[1:0] bits control whether the output should be set, cleared, or toggled at a
compare match (See “Compare Match Output Unit” on page 77.).
For detailed timing information refer to Figure 14-8, Figure 14-9, Figure 14-10 and Figure 14-11 in “Timer/Counter
Timing Diagrams” on page 82.
15.7.1 Normal Mode
The simplest mode of operation is the normal mode (WGM01:0 = 0). In this mode the counting direction is always
up (incrementing), and no counter clear is performed. The counter simply overruns when it passes its maximum 8-
bit value (TOP = 0xFF) and then restarts from the bottom (0x00). In normal operation the Timer/Counter Overflow
PORT
DDR
DQ
DQ
OCn
Pin
OCn
DQ
Waveform
Generator
COMn1
COMn0
0
1
DATA BU S
FOCn
clk
I/O
