ATmega32A [DATASHEET]

Atmel-8155D-AVR-ATmega32A-Datasheet_02/2014

2. Overview

The Atmel

AVR

ATmega32A is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC

architecture. By executing powerful instructions in a single clock cycle, the ATmega32A achieves throughputs

approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing

speed.

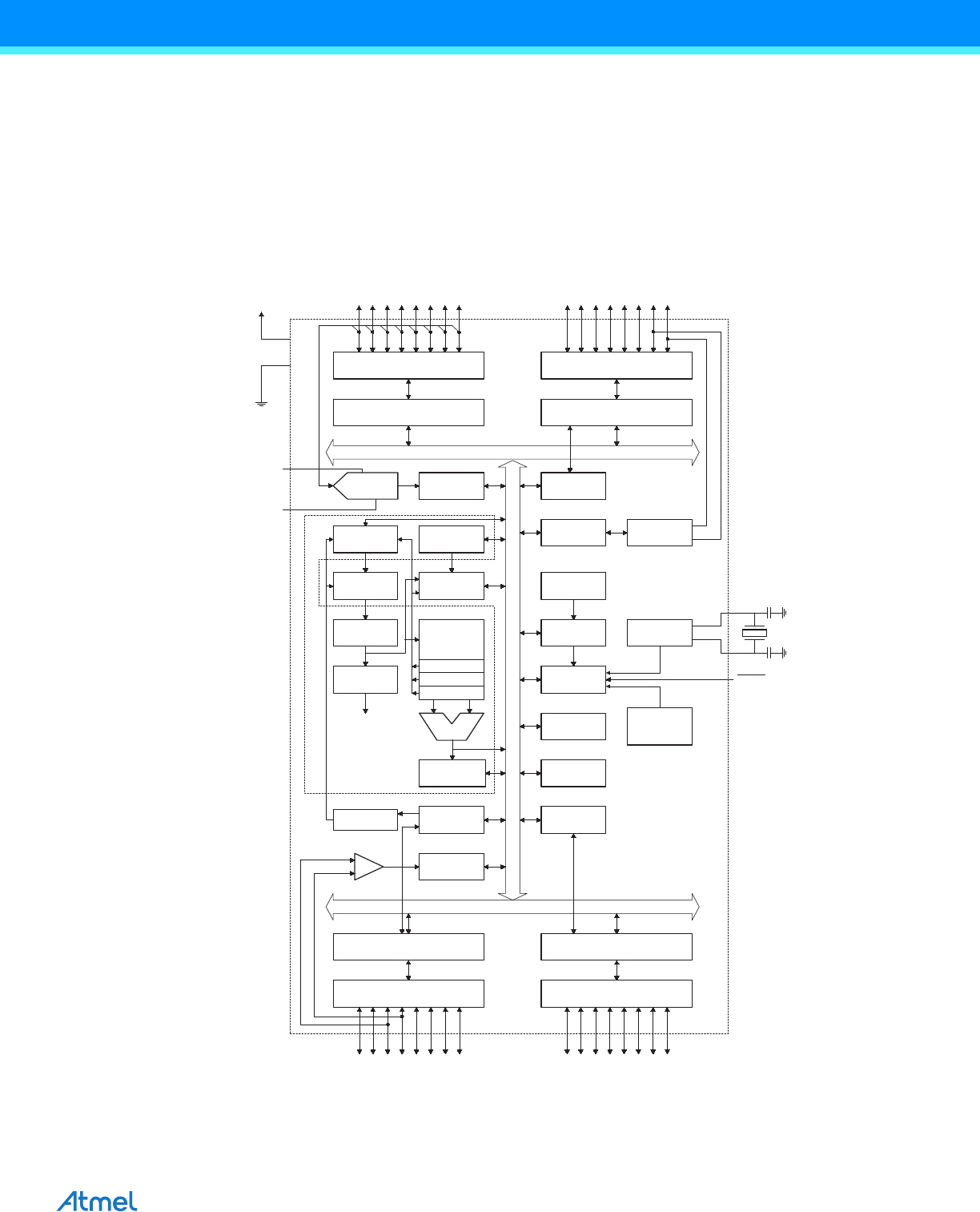

2.1 Block Diagram

Figure 2-1. Block Diagram

The Atmel

AVR

core combines a rich instruction set with 32 general purpose working registers. All the 32 regis-

ters are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CTRL.

& TIMING

OSCILLATOR

TIMERS/

COUNTERS

INTERRUPT

UNIT

STACK

POINTER

EEPROM

SRAM

STATUS

USART

PROGRAM

COUNTER

PROGRAM

FLASH

INSTRUCTION

DECODER

PROGRAMMING

LOGIC

SPI

ADC

INTERFACE

COMP.

INTERFACE

PORTA DRIVERS/BUFFERS

PORTA DIGITAL INTERFACE

GENERAL

PURPOSE

REGISTERS

ALU

PORTC DRIVERS/BUFFERS

PORTC DIGITAL INTERFACE

PORTB DIGITAL INTERFACE

PORTB DRIVERS/BUFFERS

PORTD DIGITAL INTERFACE

PORTD DRIVERS/BUFFERS

XTAL1

XTAL2

RESET

CONTROL

LINES

VCC

GND

MUX &

ADC

AREF

PA0 - PA7 PC0 - PC7

PD0 - PD7PB0 - PB7

AVR CPU

TWI

AVCC

INTERNAL

CALIBRATED

OSCILLATOR
