27.5 Page Size

27.6 Parallel Programming Parameters, Pin Mapping, and Commands

This section describes how to parallel program and verify Flash Program memory, EEPROM Data memory, Mem-

ory Lock bits, and Fuse bits in the ATmega32A. Pulses are assumed to be at least 250 ns unless otherwise noted.

27.6.1 Signal Names

In this section, some pins of the ATmega32A are referenced by signal names describing their functionality during

parallel programming, see Figure 26-1 and Table 26-7. Pins not described in the following table are referenced by

pin names.

The XA1/XA0 pins determine the action executed when the XTAL1 pin is given a positive pulse. The bit coding is

shown in Table 26-9.

When pulsing WR

or OE, the command loaded determines the action executed. The different Commands are

shown in Table 26-10.

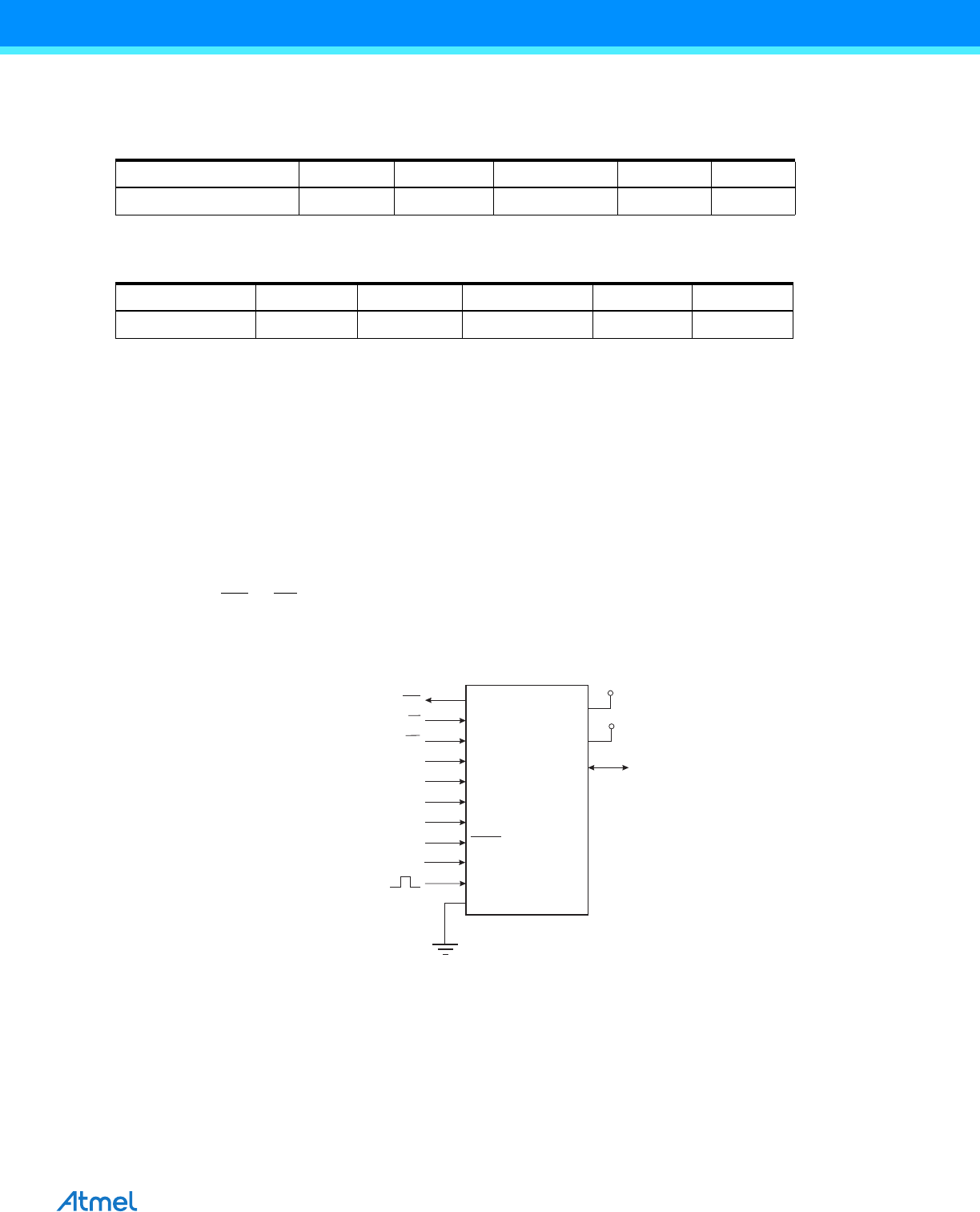

Figure 27-1. Parallel Programming

Table 27-5. No. of Words in a Page and no. of Pages in the Flash

Flash Size Page Size PCWORD No. of Pages PCPAGE PCMSB

16K words (32Kbytes) 64 words PC[5:0] 256 PC[13:6] 13

Table 27-6. No. of Words in a Page and no. of Pages in the EEPROM

EEPROM Size Page Size PCWORD No. of Pages PCPAGE EEAMSB

1024bytes 4bytes EEA[1:0] 256 EEA[9:2] 9

VCC

+5V

GND

XTAL1

PD1

PD2

PD3

PD4

PD5

PD6

PB7 - PB0

RESET

PD7

+12 V

BS1

XA0

XA1

RDY/BSY

PAGEL

PA0

BS2

AVCC

+5V
