22. Analog Comparator

22.1 Overview

The Analog Comparator compares the input values on the positive pin AIN0 and negative pin AIN1. When the volt-

age on the positive pin AIN0 is higher than the voltage on the negative pin AIN1, the Analog Comparator Output,

ACO, is set. The comparator’s output can be set to trigger the Timer/Counter1 Input Capture function. In addition,

the comparator can trigger a separate interrupt, exclusive to the Analog Comparator. The user can select Interrupt

triggering on comparator output rise, fall or toggle. A block diagram of the comparator and its surrounding logic is

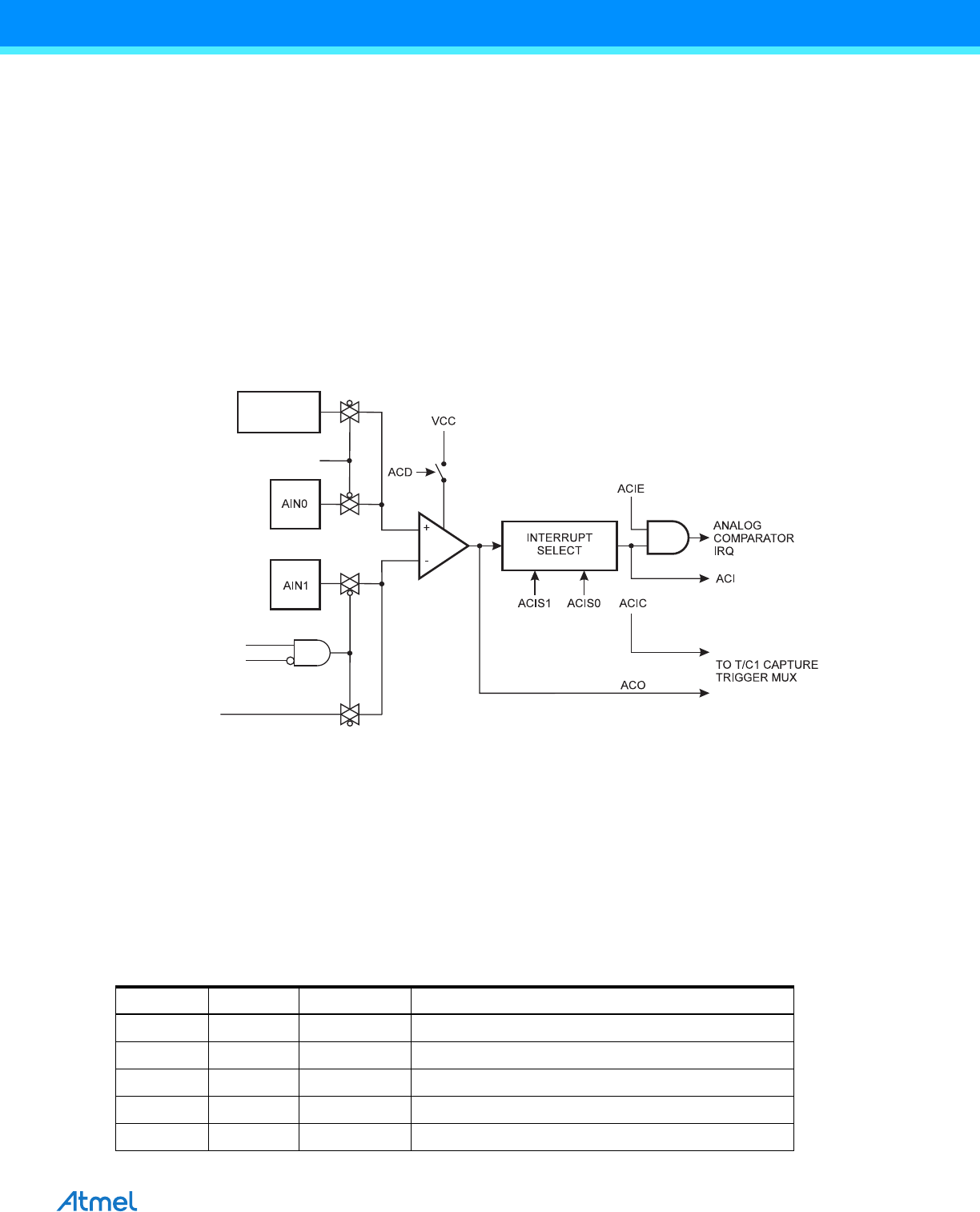

shown in Figure 21-1.

Figure 22-1. Analog Comparator Block Diagram

(2)

Notes: 1. See Table 21-1 on page 206.

2. Refer to Figure 1-1 on page 2 and Table 12-6 on page 59 for Analog Comparator pin placement.

22.2 Analog Comparator Multiplexed Input

It is possible to select any of the ADC7:0 pins to replace the negative input to the Analog Comparator. The ADC

multiplexer is used to select this input, and consequently, the ADC must be switched off to utilize this feature. If the

Analog Comparator Multiplexer Enable bit (ACME in SFIOR) is set and the ADC is switched off (ADEN in ADCSRA

is zero), MUX2:0 in ADMUX select the input pin to replace the negative input to the Analog Comparator, as shown

in Table 21-1. If ACME is cleared or ADEN is set, AIN1 is applied to the negative input to the Analog Comparator.

ACBG

BANDGAP

REFERENCE

ADC MULTIPLEXER

OUTPUT

ACME

ADEN

(1)

Table 22-1. Analog Comparator Multiplexed Input

ACME ADEN MUX2:0 Analog Comparator Negative Input

0 x xxx AIN1

1 1 xxx AIN1

1 0 000 ADC0

1 0 001 ADC1

1 0 010 ADC2
