ATmega32A [DATASHEET]

Atmel-8155D-AVR-ATmega32A-Datasheet_02/2014

21. Two-wire Serial Interface

21.1 Features

• Simple Yet Powerful and Flexible Communication Interface, Only Two Bus Lines Needed

• Both Master and Slave Operation Supported

• Device Can Operate as Transmitter or Receiver

• 7-bit Address Space allows up to 128 Different Slave Addresses

• Multi-master Arbitration Support

• Up to 400kHz Data Transfer Speed

• Slew-rate Limited Output Drivers

• Noise Suppression Circuitry Rejects Spikes on Bus Lines

• Fully Programmable Slave Address with General Call Support

• Address Recognition causes Wake-up when AVR is in Sleep Mode

21.2 Two-wire Serial Interface Bus Definition

The Two-wire Serial Interface (TWI) is ideally suited for typical microcontroller applications. The TWI protocol

allows the systems designer to interconnect up to 128 different devices using only two bi-directional bus lines, one

for clock (SCL) and one for data (SDA). The only external hardware needed to implement the bus is a single pull-

up resistor for each of the TWI bus lines. All devices connected to the bus have individual addresses, and mecha-

nisms for resolving bus contention are inherent in the TWI protocol.

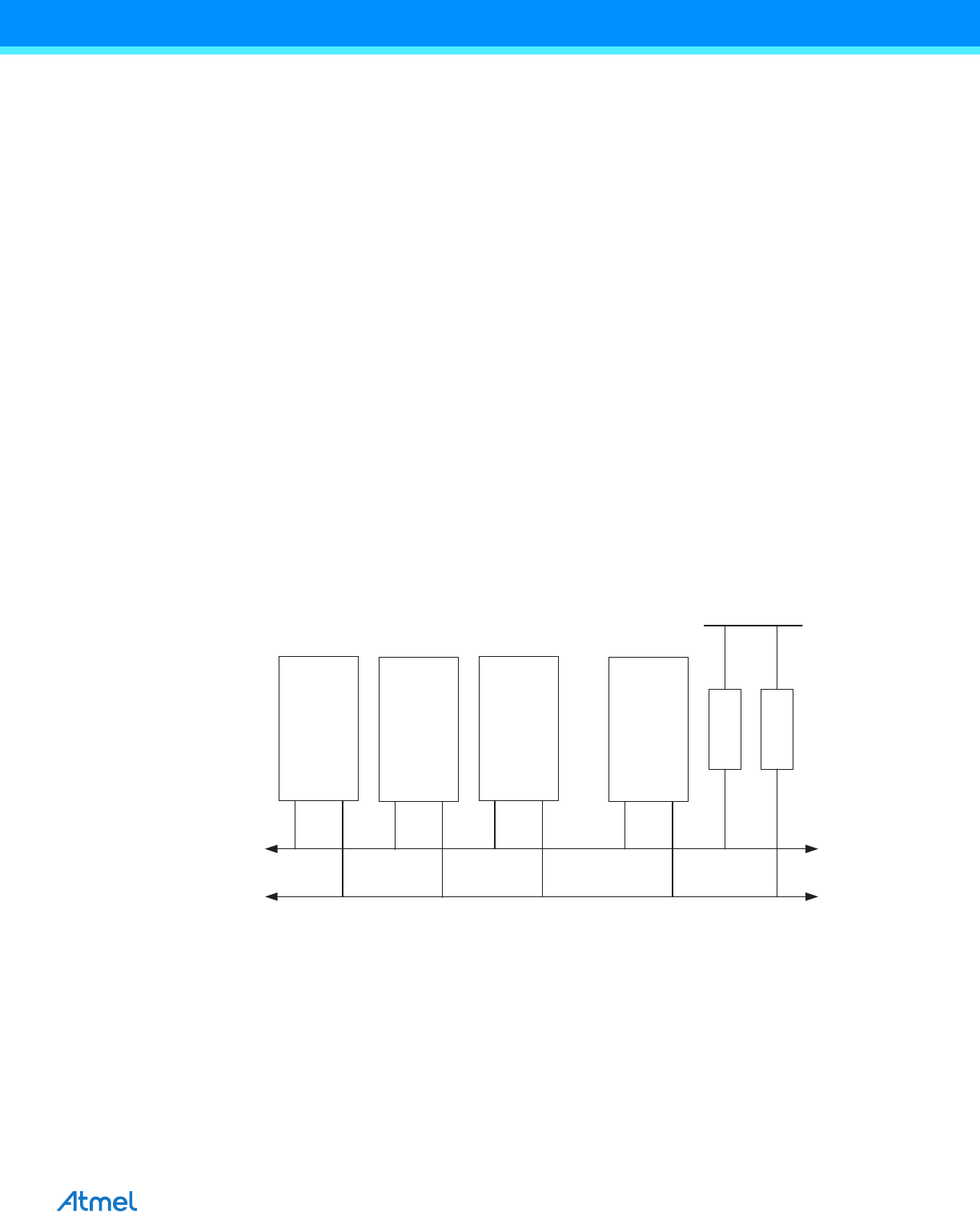

Figure 21-1. TWI Bus Interconnection

Device 1

Device 2

Device 3

Device n

SDA

SCL

........

R1 R2
