ATmega32A [DATASHEET]

Atmel-8155D-AVR-ATmega32A-Datasheet_02/2014

18.10 Timer/Counter Prescaler

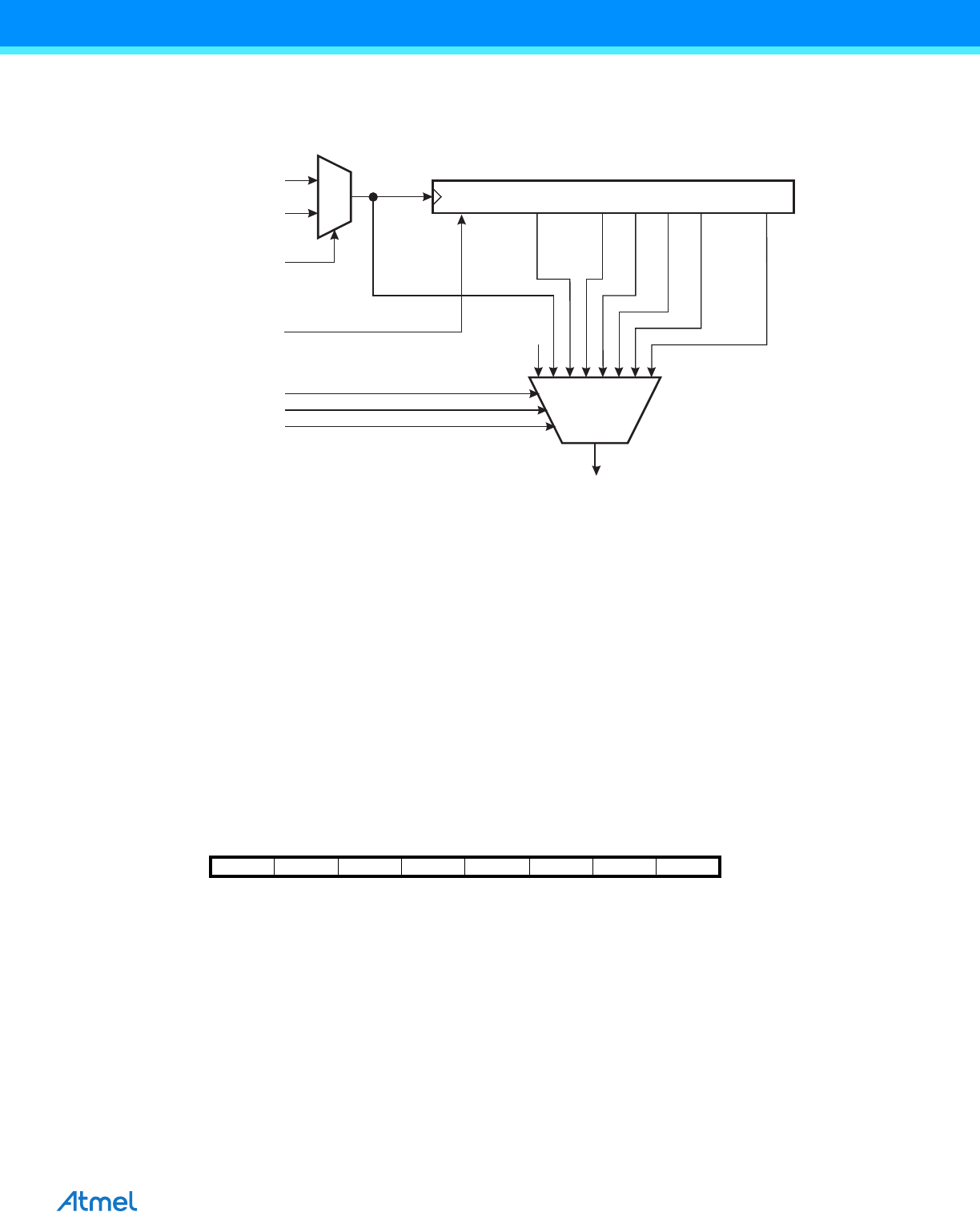

Figure 18-12. Prescaler for Timer/Counter2

The clock source for Timer/Counter2 is named clk

T2S

. clk

T2S

is by default connected to the main system I/O clock

clk

. By setting the AS2 bit in ASSR, Timer/Counter2 is asynchronously clocked from the TOSC1 pin. This

enables use of Timer/Counter2 as a Real Time Counter (RTC). When AS2 is set, pins TOSC1 and TOSC2 are dis-

connected from Port C. A crystal can then be connected between the TOSC1 and TOSC2 pins to serve as an

independent clock source for Timer/Counter2. The Oscillator is optimized for use with a 32.768kHz crystal. Apply-

ing an external clock source to TOSC1 is not recommended.

For Timer/Counter2, the possible prescaled selections are: clk

T2S

/8, clk

T2S

/32, clk

T2S

/64, clk

T2S

/128, clk

T2S

/256, and

clk

T2S

/1024. Additionally, clk

T2S

as well as 0 (stop) may be selected. Setting the PSR2 bit in SFIOR resets the pres-

caler. This allows the user to operate with a predictable prescaler.

18.11 Register Description

18.11.1 TCCR2 – Timer/Counter Control Register

• Bit 7 – FOC2: Force Output Compare

The FOC2 bit is only active when the WGM bits specify a non-PWM mode. However, for ensuring compatibility with

future devices, this bit must be set to zero when TCCR2 is written when operating in PWM mode. When writing a

logical one to the FOC2 bit, an immediate compare match is forced on the waveform generation unit. The OC2 out-

put is changed according to its COM21:0 bits setting. Note that the FOC2 bit is implemented as a strobe. Therefore

it is the value present in the COM21:0 bits that determines the effect of the forced compare.

A FOC2 strobe will not generate any interrupt, nor will it clear the timer in CTC mode using OCR2 as TOP.

The FOC2 bit is always read as zero.

10-BIT T/C PRESCALER

TIMER/COUNTER2 CLOCK SOURCE

clk

I/O

clk

T2S

TOSC1

AS2

CS20

CS21

CS22

clk

T2S

clk

T2S

/64

clk

T2S

/128

clk

T2S

/1024

clk

T2S

/256

clk

T2S

/32

PSR2

Clear

clk

Bit 76543210

FOC2 WGM20 COM21 COM20 WGM21 CS22 CS21 CS20 TCCR2

Read/Write W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0
