18. 8-bit Timer/Counter2 with PWM and Asynchronous Operation

18.1 Features

• Single Compare unit Counter

• Clear Timer on Compare Match (Auto Reload)

• Glitch-free, Phase Correct Pulse Width Modulator (PWM)

• Frequency Generator

• 10-bit Clock Prescaler

• Overflow and Compare Match Interrupt Sources (TOV2 and OCF2)

• Allows clocking from External 32kHz Watch Crystal Independent of the I/O Clock

18.2 Overview

Timer/Counter2 is a general purpose, single compare unit, 8-bit Timer/Counter module. A simplified block diagram

of the 8-bit Timer/Counter is shown in Figure 17-1. For the actual placement of I/O pins, refer to “Pinout

ATmega32A” on page 2. CPU accessible I/O Registers, including I/O bits and I/O pins, are shown in bold. The

device-specific I/O Register and bit locations are listed in the “Register Description” on page 132.

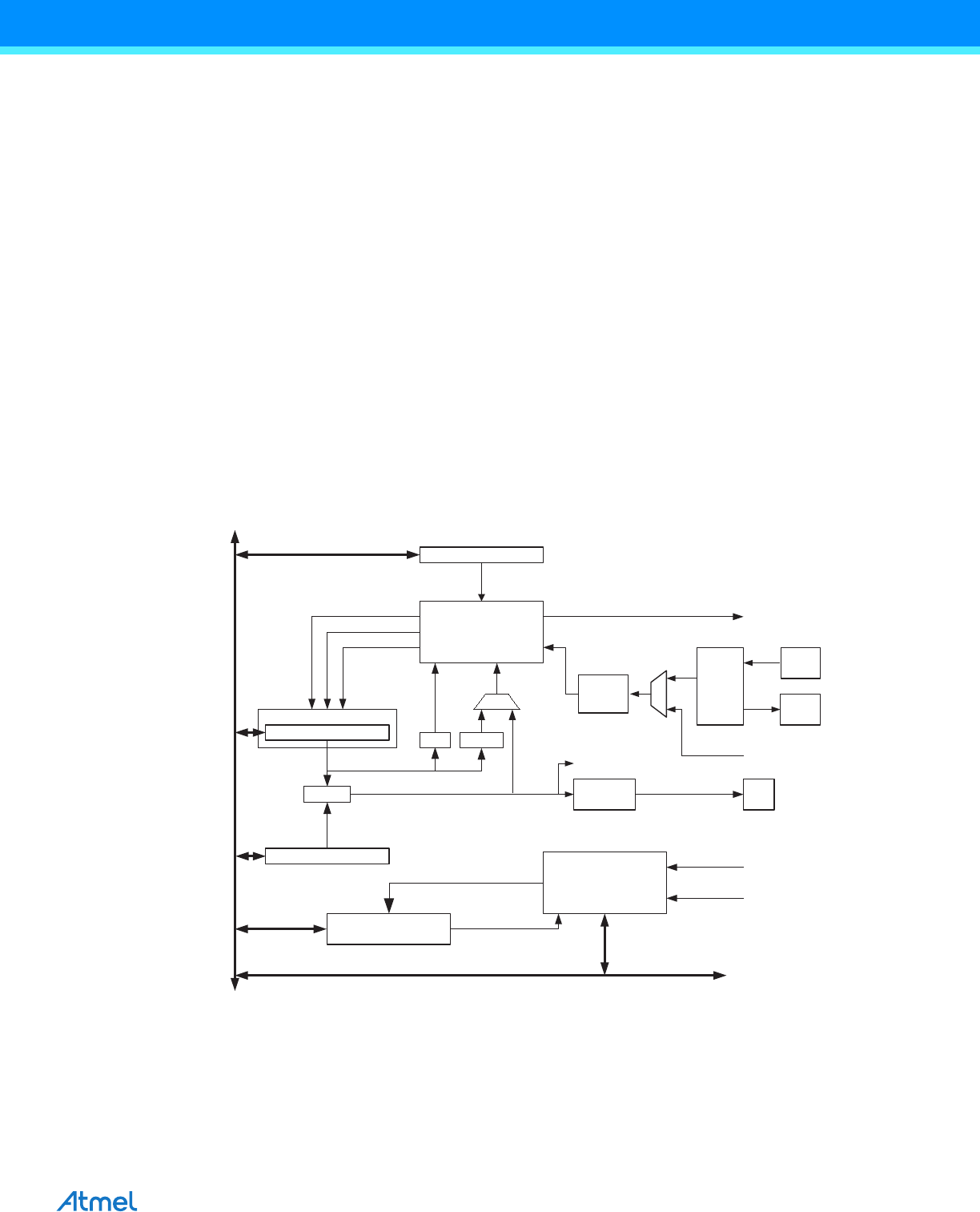

Figure 18-1. 8-bit Timer/Counter Block Diagram

18.2.1 Registers

The Timer/Counter (TCNT2) and Output Compare Register (OCR2) are 8-bit registers. Interrupt request (shorten

as Int.Req.) signals are all visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked

Timer/Counter

DATA BU S

TCNTn

Waveform

Generation

OCn

= 0

Control Logic

0xFF

TOPBOTTOM

count

clear

direction

TOVn

(Int.Req.)

OCn

(Int.Req.)

Synchronization Unit

OCRn

TCCRn

ASSRn

Status flags

clk

I/O

clk

ASY

Synchronized Status flags

asynchronous mode

select (ASn)

TOSC1

T/C

Oscillator

TOSC2

Prescaler

clk

I/O
