Table Of Contents

Features
1. Pin Configurations
2. Overview
- 2.1 Block Diagram
- 2.2 Pin Descriptions
3. Resources
4. Data Retention
5. About Code Examples
6. Capacitive touch sensing
7. AVR CPU Core
- 7.1 Overview
- 7.2 ALU – Arithmetic Logic Unit
- 7.3 Status Register
  - 7.3.1 SREG – AVR Status Register
- 7.4 General Purpose Register File
  - 7.4.1 The X-register, Y-register and Z-register
- 7.5 Stack Pointer
  - 7.5.1 SPH and SPL – Stack Pointer High and Low Register
- 7.6 Instruction Execution Timing
- 7.7 Reset and Interrupt Handling
  - 7.7.1 Interrupt Response Time
8. AVR Memories
- 8.1 Overview
- 8.2 In-System Reprogrammable Flash Program Memory
- 8.3 SRAM Data Memory
  - 8.3.1 Data Memory Access Times
- 8.4 EEPROM Data Memory
- 8.5 I/O Memory
- 8.6 Register Description
9. System Clock and Clock Options
- 9.1 Clock Systems and their Distribution
- 9.2 Clock Sources
- 9.3 Default Clock Source
- 9.4 Crystal Oscillator
- 9.5 Low-frequency Crystal Oscillator
- 9.6 External RC Oscillator
- 9.7 Calibrated Internal RC Oscillator
- 9.8 External Clock
- 9.9 Timer/Counter Oscillator
- 9.10 Register Description
  - 9.10.1 OSCCAL – Oscillator Calibration Register
10. Power Management and Sleep Modes
- 10.1 Sleep Modes
- 10.2 Idle Mode
- 10.3 ADC Noise Reduction Mode
- 10.4 Power-down Mode
- 10.5 Power-save Mode
- 10.6 Standby Mode
- 10.7 Extended Standby Mode
- 10.8 Minimizing Power Consumption
- 10.9 Register Description
  - 10.9.1 MCUCR – MCU Control Register
11. System Control and Reset
- 11.1 Resetting the AVR
- 11.2 Reset Sources
- 11.3 Internal Voltage Reference
  - 11.3.1 Voltage Reference Enable Signals and Start-up Time
- 11.4 Watchdog Timer
- 11.5 Register Description
  - 11.5.1 MCUCSR – MCU Control and Status Register
  - 11.5.2 WDTCR – Watchdog Timer Control Register
12. Interrupts
- 12.1 Interrupt Vectors in ATmega32A
  - 12.1.1 Moving Interrupts Between Application and Boot Space
- 12.2 Register Description
  - 12.2.1 GICR – General Interrupt Control Register
13. I/O Ports
- 13.1 Overview
- 13.2 Ports as General Digital I/O
- 13.3 Alternate Port Functions
- 13.4 Register Description
14. External Interrupts
- 14.1 Register Description
15. 8-bit Timer/Counter0 with PWM
- 15.1 Features
- 15.2 Overview
  - 15.2.1 Registers
  - 15.2.2 Definitions
- 15.3 Timer/Counter Clock Sources
- 15.4 Counter Unit
- 15.5 Output Compare Unit
- 15.6 Compare Match Output Unit
  - 15.6.1 Compare Output Mode and Waveform Generation
- 15.7 Modes of Operation
- 15.8 Timer/Counter Timing Diagrams
- 15.9 Register Description
16. Timer/Counter0 and Timer/Counter1 Prescalers
- 16.1 Overview
- 16.2 Internal Clock Source
- 16.3 Prescaler Reset
- 16.4 External Clock Source
- 16.5 Register Description
  - 16.5.1 SFIOR – Special Function IO Register
17. 16-bit Timer/Counter1
- 17.1 Features
- 17.2 Overview
- 17.3 Accessing 16-bit Registers
  - 17.3.1 Reusing the Temporary High Byte Register
- 17.4 Timer/Counter Clock Sources
- 17.5 Counter Unit
- 17.6 Input Capture Unit
- 17.7 Compare Match Output Unit
  - 17.7.1 Compare Output Mode and Waveform Generation
- 17.8 Modes of Operation
- 17.9 Timer/Counter Timing Diagrams
- 17.10 Register Description
18. 8-bit Timer/Counter2 with PWM and Asynchronous Operation
- 18.1 Features
- 18.2 Overview
  - 18.2.1 Registers
  - 18.2.2 Definitions
- 18.3 Timer/Counter Clock Sources
- 18.4 Counter Unit
- 18.5 Output Compare Unit
- 18.6 Compare Match Output Unit
  - 18.6.1 Compare Output Mode and Waveform Generation
- 18.7 Modes of Operation
- 18.8 Timer/Counter Timing Diagrams
- 18.9 Asynchronous Operation of the Timer/Counter
- 18.10 Timer/Counter Prescaler
- 18.11 Register Description
19. SPI – Serial Peripheral Interface
- 19.1 Features
- 19.2 Overview
- 19.3 SS Pin Functionality
- 19.4 Data Modes
20. USART
- 20.1 Features
- 20.2 Overview
  - 20.2.1 AVR USART vs. AVR UART – Compatibility
- 20.3 Clock Generation
- 20.4 Frame Formats
  - 20.4.1 Parity Bit Calculation
- 20.5 USART Initialization
- 20.6 Data Transmission – The USART Transmitter
- 20.7 Data Reception – The USART Receiver
- 20.8 Asynchronous Data Reception
- 20.9 Multi-processor Communication Mode
  - 20.9.1 Using MPCM
- 20.10 Accessing UBRRH/ UCSRC Registers
  - 20.10.1 Write Access
  - 20.10.2 Read Access
- 20.11 Register Description
- 20.12 Examples of Baud Rate Setting
21. Two-wire Serial Interface
- 21.1 Features
- 21.2 Two-wire Serial Interface Bus Definition
  - 21.2.1 TWI Terminology
  - 21.2.2 Electrical Interconnection
- 21.3 Data Transfer and Frame Format
- 21.4 Multi-master Bus Systems, Arbitration and Synchronization
- 21.5 Overview of the TWI Module
- 21.6 Using the TWI
- 21.7 Transmission Modes
- 21.8 Multi-master Systems and Arbitration
- 21.9 Register Description
22. Analog Comparator
- 22.1 Overview
- 22.2 Analog Comparator Multiplexed Input
- 22.3 Register Description
  - 22.3.1 SFIOR – Special Function IO Register
  - 22.3.2 ACSR – Analog Comparator Control and Status Register
23. Analog to Digital Converter
- 23.1 Features
- 23.2 Overview
- 23.3 Operation
- 23.4 Starting a Conversion
- 23.5 Prescaling and Conversion Timing
  - 23.5.1 Differential Gain Channels
- 23.6 Changing Channel or Reference Selection
  - 23.6.1 ADC Input Channels
  - 23.6.2 ADC Voltage Reference
- 23.7 ADC Noise Canceler
- 23.8 ADC Conversion Result
- 23.9 Register Description
24. JTAG Interface and On-chip Debug System
- 24.1 Features
- 24.2 Overview
- 24.3 TAP – Test Access Port
- 24.4 TAP Controller
- 24.5 Using the Boundary-scan Chain
- 24.6 Using the On-chip Debug System
- 24.7 On-chip Debug Specific JTAG Instructions
- 24.8 Using the JTAG Programming Capabilities
- 24.9 Register Description
  - 24.9.1 OCDR – On-chip Debug Register
- 24.10 Bibliography
25. IEEE 1149.1 (JTAG) Boundary-scan
- 25.1 Features
- 25.2 Overview
- 25.3 Data Registers
- 25.4 Boundary-scan Specific JTAG Instructions
- 25.5 Boundary-scan Chain
- 25.6 ATmega32A Boundary-scan Order
- 25.7 Boundary-scan Description Language Files
- 25.8 Register Description
  - 25.8.1 MCU Control and Status Register – MCUCSR
26. Boot Loader Support – Read-While-Write Self-Programming
- 26.1 Features
- 26.2 Overview
- 26.3 Application and Boot Loader Flash Sections
  - 26.3.1 Application Section
  - 26.3.2 BLS – Boot Loader Section
- 26.4 Read-While-Write and no Read-While-Write Flash Sections
  - 26.4.1 RWW – Read-While-Write Section
  - 26.4.2 NRWW – No Read-While-Write Section
- 26.5 Boot Loader Lock Bits
- 26.6 Entering the Boot Loader Program
- 26.7 Addressing the Flash during Self-Programming
- 26.8 Self-Programming the Flash
- 26.9 Register Description
  - 26.9.1 SPMCR – Store Program Memory Control Register
27. Memory Programming
- 27.1 Program And Data Memory Lock Bits
- 27.2 Fuse Bits
  - 27.2.1 Latching of Fuses
- 27.3 Signature Bytes
- 27.4 Calibration Byte
- 27.5 Page Size
- 27.6 Parallel Programming Parameters, Pin Mapping, and Commands
  - 27.6.1 Signal Names
- 27.7 Parallel Programming
- 27.8 SPI Serial Downloading
- 27.9 SPI Serial Programming Pin Mapping
- 27.10 Programming via the JTAG Interface
28. Electrical Characteristics
- 28.1 Absolute Maximum Ratings*
- 28.2 DC Characteristics
- 28.3 Speed Grades
- 28.4 Clock Characteristics
  - 28.4.1 External Clock Drive Waveforms
  - 28.4.2 External Clock Drive
- 28.5 System and Reset Characteristics
- 28.6 Two-wire Serial Interface Characteristics
- 28.7 SPI Timing Characteristics
- 28.8 ADC Characteristics
29. Typical Characteristics
- 29.1 Active Supply Current
- 29.2 Idle Supply Current
- 29.3 Power-down Supply Current
- 29.4 Power-save Supply Current
- 29.5 Standby Supply Current
- 29.6 Pin Pull-up
- 29.7 Pin Driver Strength
- 29.8 Pin Thresholds and Hysteresis
- 29.9 BOD Thresholds and Analog Comparator Offset
- 29.10 Internal Oscillator Speed
- 29.11 Current Consumption of Peripheral Units
- 29.12 Current Consumption in Reset and Reset Pulsewidth
30. Register Summary
31. Instruction Set Summary
32. Ordering Information
33. Packaging Information
- 33.1 44A
- 33.2 40P6
- 33.3 44M1
34. Errata
- 34.1 ATmega32A, rev. J to rev. K
- 34.2 ATmega32A, rev. G to rev. I
35. Datasheet Revision History
- 35.1 Rev. 8155E – 02/2014
- 35.2 Rev. 8155D – 10/2013
- 35.3 Rev. 8155C – 02/2011
- 35.4 Rev. 8155B – 07/2009
- 35.5 Rev. 8155A – 06/2008
Table of Contents

104

ATmega32A [DATASHEET]

Atmel-8155D-AVR-ATmega32A-Datasheet_02/2014

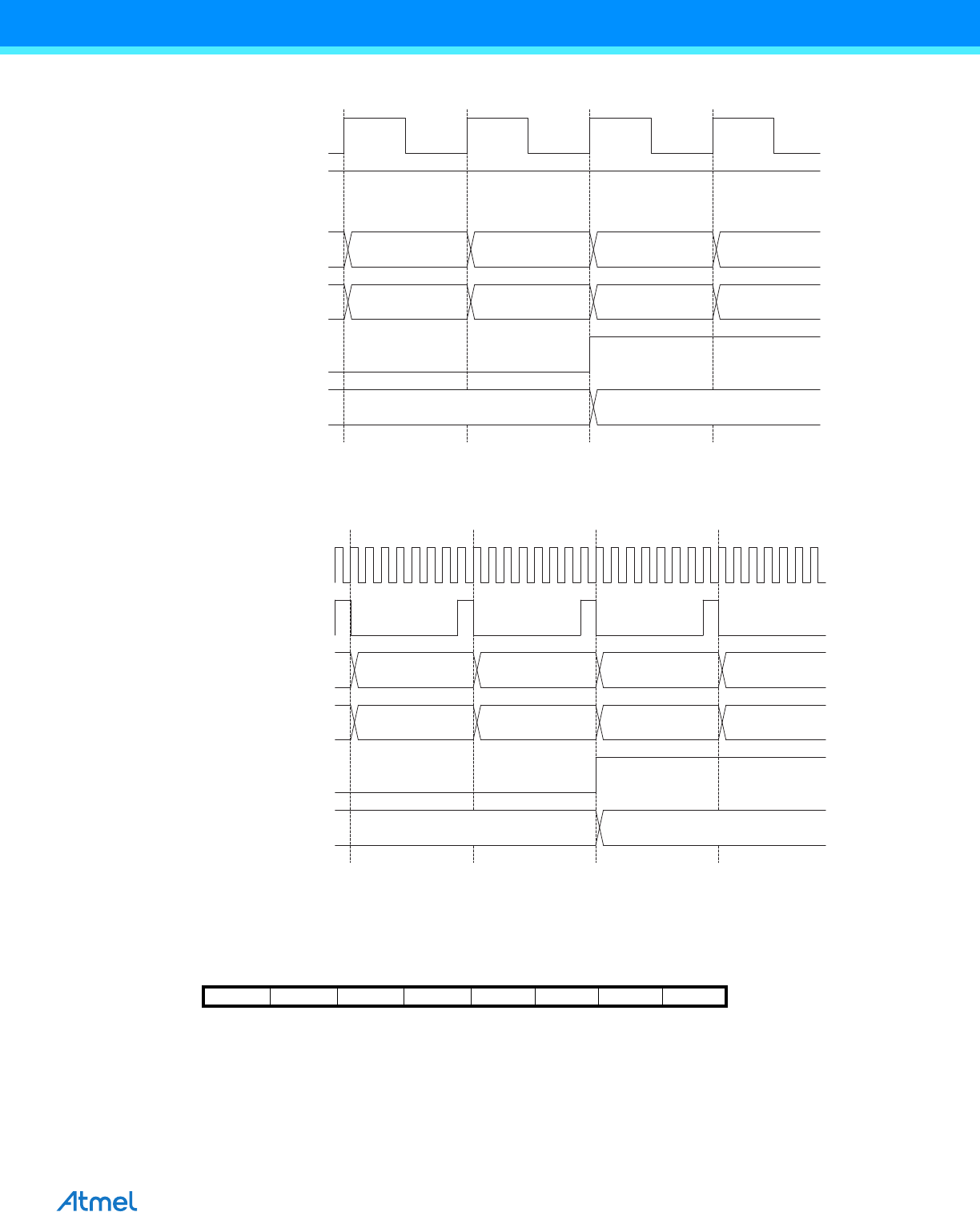

Figure 17-12. Timer/Counter Timing Diagram, no Prescaling

Figure 16-13 shows the same timing data, but with the prescaler enabled.

Figure 17-13. Timer/Counter Timing Diagram, with Prescaler (f

clk_I/O

/8)

17.10 Register Description

17.10.1 TCCR1A – Timer/Counter1 Control Register A

• Bit 7:6 – COM1A1:0: Compare Output Mode for Compare unit A

• Bit 5:4 – COM1B1:0: Compare Output Mode for Compare unit B

TOVn

(FPWM)

and ICFn

(if used

as TOP)

OCRnx

(Update at TOP)

TCNTn

(CTC and FPWM)

TCNTn

(PC and PFC PWM)

TOP - 1 TOP TOP - 1 TOP - 2

Old OCRnx Value New OCRnx Value

TOP - 1 TOP BOTTOM BOTTOM + 1

clk

(clk

I/O

/1)

clk

I/O

TOVn (FPWM)

and ICFn (if used

as TOP)

OCRnx

(Update at TOP)

TCNTn

(CTC and FPWM)

TCNTn

(PC and PFC PWM)

TOP - 1 TOP TOP - 1 TOP - 2

Old OCRnx Value New OCRnx Value

TOP - 1 TOP BOTTOM BOTTOM + 1

clk

I/O

clk

(clk

I/O

/8)

Bit 7 6 5 4 3210

COM1A1 COM1A0 COM1B1 COM1B0 FOC1A FOC1B WGM11 WGM10 TCCR1A

Read/Write R/W R/W R/W R/W W W R/W R/W

Initial Value 0 0 0 0 0 0 0 0
