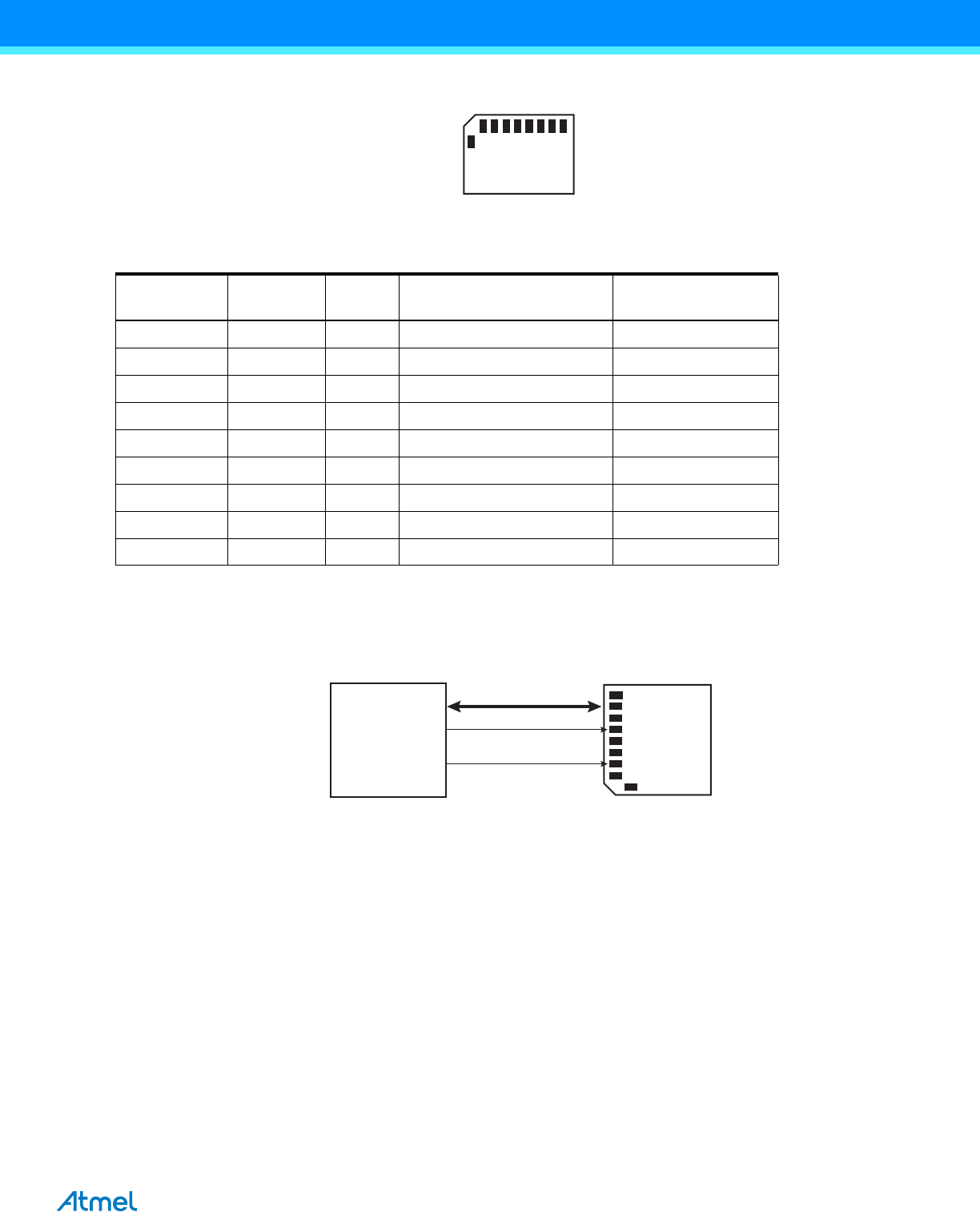

Figure 35-5. SD Memory Card Bus Topology
The SD Memory Card bus includes the signals listed in Table 35-5.
Notes: 1. I: input, O: output, PP: Push Pull, OD: Open Drain.
2. When several HSMCI (x HSMCI) are embedded in a product, MCCK refers to HSMCIx_CK, MCCDA to
HSMCIx_CDA, MCDAy to HSMCIx_DAy.
Figure 35-6. SD Card Bus Connections with One Slot
Note: When several HSMCI (x HSMCI) are embedded in a product, MCCK refers to HSMCIx_CK, MCCDA to
HSMCIx_CDA MCDAy to HSMCIx_DAy.
When the HSMCI is configured to operate with SD memory cards, the width of the data bus can be selected in the
HSMCI_SDCR. Clearing the SDCBUS bit in this register means that the width is one bit; setting it means that the width is
four bits. In the case of High Speed MultiMedia cards, only the data line 0 is used. The other data lines can be used as
independent PIOs.
Table 35-5. SD Memory Card Bus Signals
Pin Number Name Type
(1)
Description HSMCI Pin Name
(2)
(Slot z)
1 CD/DAT[3] I/O/PP Card detect/ Data line Bit 3 MCDz3
2 CMD PP Command/response MCCDz
3 VSS1 S Supply voltage ground VSS
4 VDD S Supply voltage VDD
5 CLK I/O Clock MCCK
6 VSS2 S Supply voltage ground VSS
7 DAT[0] I/O/PP Data line Bit 0 MCDz0
8 DAT[1] I/O/PP Data line Bit 1 or Interrupt MCDz1
9 DAT[2] I/O/PP Data line Bit 2 MCDz2
23456178
SD CARD
9
2345617
MCDA0 - MCDA3
MCCDA
MCCK
8
SD CARD
9
