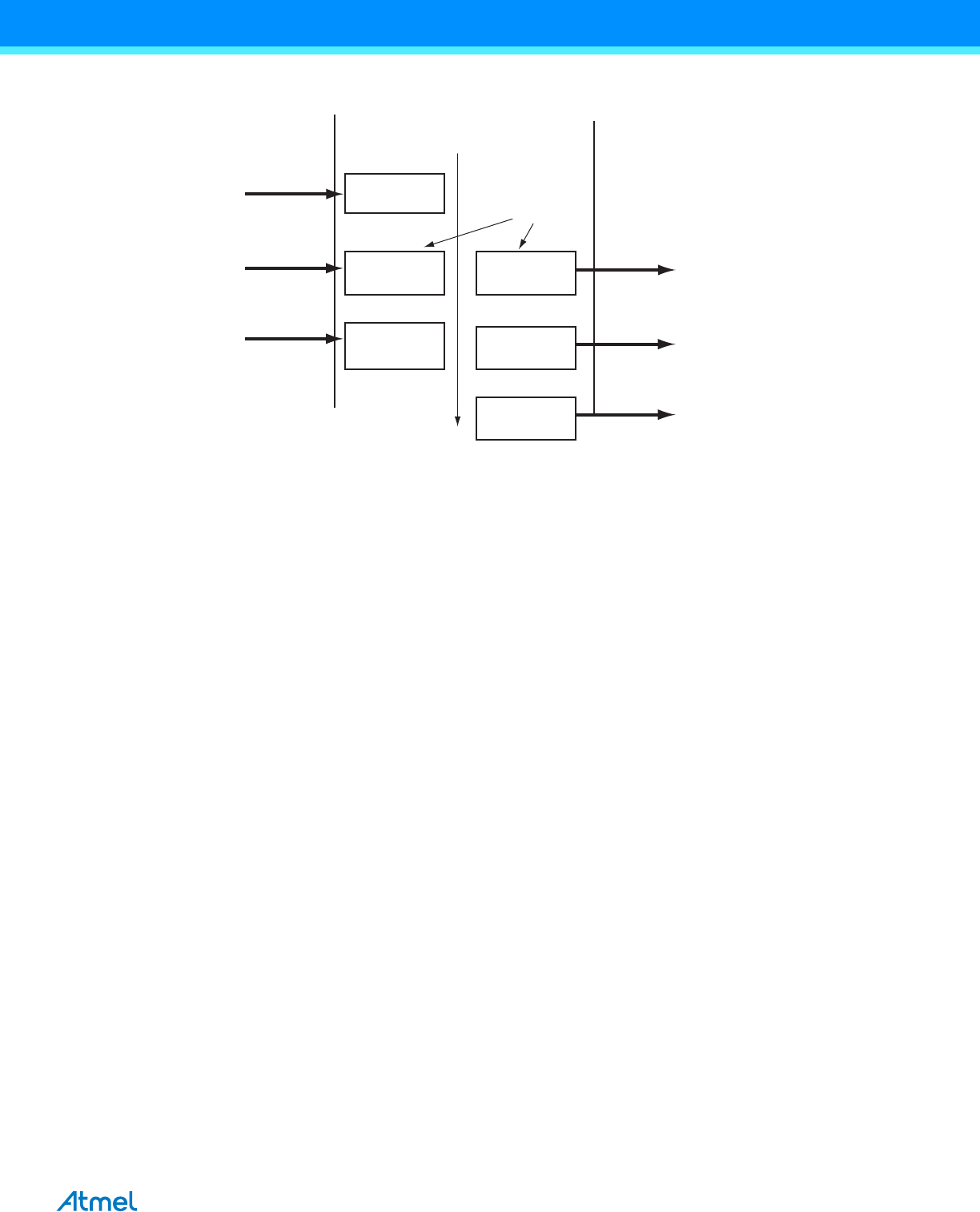

Figure 33-7. Bank Swapping Data IN Transfer for Ping-pong Endpoints
When using a ping-pong endpoint, the following procedures are required to perform Data IN transactions:
1. The microcontroller checks if it is possible to write in the FIFO by polling TXPKTRDY to be cleared in the end-
point’s UDP_CSRx register.
2. The microcontroller writes the first data payload to be sent in the FIFO (Bank 0), writing zero or more byte values
in the endpoint’s UDP_FDRx register.
3. The microcontroller notifies the USB peripheral it has finished writing in Bank 0 of the FIFO by setting the TXPK-
TRDY in the endpoint’s UDP_CSRx register.
4. Without waiting for TXPKTRDY to be cleared, the microcontroller writes the second data payload to be sent in the
FIFO (Bank 1), writing zero or more byte values in the endpoint’s UDP_FDRx register.
5. The microcontroller is notified that the first Bank has been released by the USB device when TXCOMP in the end-
point’s UDP_CSRx register is set. An interrupt is pending while TXCOMP is being set.
6. Once the microcontroller has received TXCOMP for the first Bank, it notifies the USB device that it has prepared
the second Bank to be sent, raising TXPKTRDY in the endpoint’s UDP_CSRx register.
7. At this step, Bank 0 is available and the microcontroller can prepare a third data payload to be sent
.
