SAM9N12/SAM9CN11/SAM9CN12 [DATASHEET]
11063K–ATARM–05-Nov-13
4. The application is notified that the endpoint’s FIFO has been released by the USB device when TXCOMP in the
endpoint’s UDP_CSRx register has been set. Then an interrupt for the corresponding endpoint is pending while
TXCOMP is set.
5. The microcontroller writes the second packet of data to be sent in the endpoint’s FIFO, writing zero or more byte
values in the endpoint’s UDP_FDRx register,
6. The microcontroller notifies the USB peripheral it has finished by setting the TXPKTRDY in the endpoint’s
UDP_CSRx register.
7. The application clears the TXCOMP in the endpoint’s UDP_CSRx.
After the last packet has been sent, the application must clear TXCOMP once this has been set.
TXCOMP is set by the USB device when it has received an ACK PID signal for the Data IN packet. An interrupt is
pending while TXCOMP is set.
Warning: TX_COMP must be cleared after TX_PKTRDY has been set.
Note: Refer to Chapter 8 of the Universal Serial Bus Specification, Rev 2.0, for more information on the Data IN proto-
col layer.

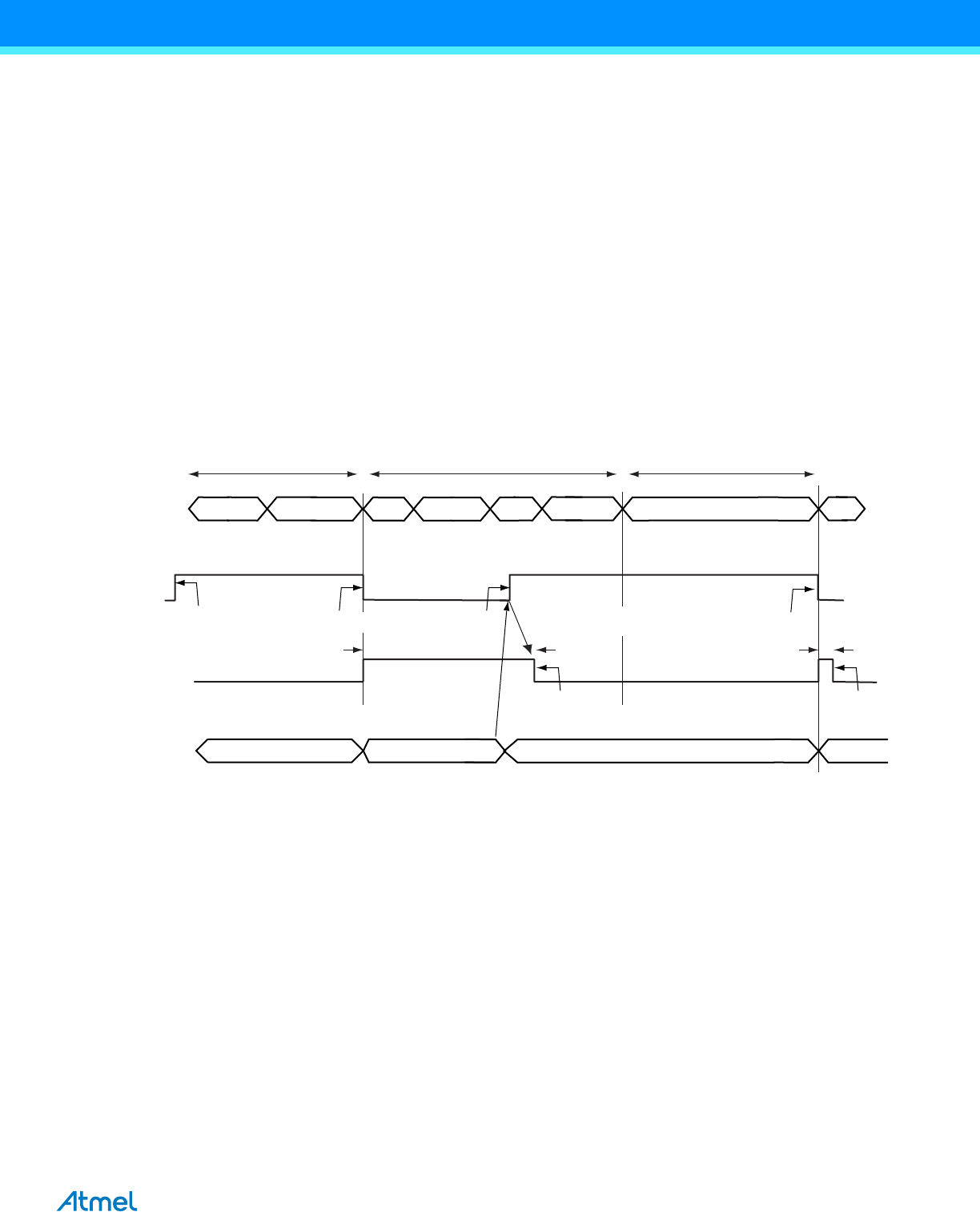

Figure 33-6. Data IN Transfer for Non Ping-pong Endpoint
Using Endpoints With Ping-pong Attribute
The use of an endpoint with ping-pong attributes is necessary during isochronous transfer. This also allows handling the
maximum bandwidth defined in the USB specification during bulk transfer. To be able to guarantee a constant or the
maximum bandwidth, the microcontroller must prepare the next data payload to be sent while the current one is being
sent by the USB device. Thus two banks of memory are used. While one is available for the microcontroller, the other
one is locked by the USB device.
USB Bus Packets
Data IN 2
Data IN NAK
ACK
Data IN 1
FIFO (DPR)
Content
Data IN 2Load In ProgressData IN 1
Cleared by Firmware
DPR access by the firmware
Payload in FIFO
TXCOMP Flag
(UDP_CSRx)
TXPKTRDY Flag
(UDP_CSRx)
PID
Data IN Data IN
PIDPID PIDPID
ACK
PID
Prevous Data IN TX Microcontroller Load Data in FIFO Data is Sent on USB Bus
Interrupt
Pending
Interrupt Pending
Set by the firmware
Set by the firmware
Cleared by
Firmware
Cleared by Hw
Cleared by Hw
DPR access by the hardware
