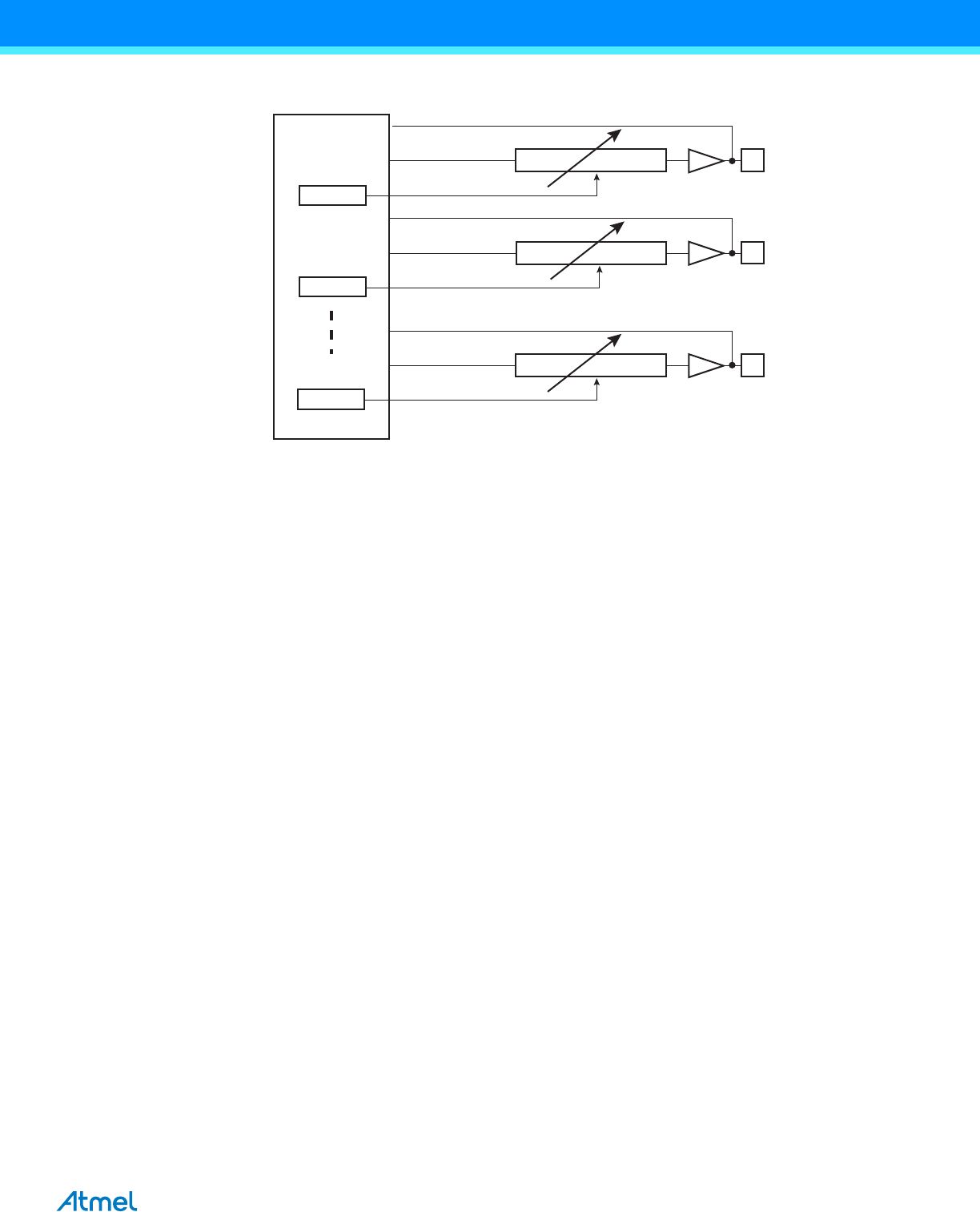

Figure 23-9. Programmable I/O Delays
23.5.12 Programmable I/O Drive
It is possible to configure the I/O drive for pads PA[31:0], PB[18:0], PC[31:0]. For any details, refer to the product
electrical characteristics.
23.5.13 Programmable Schmitt Trigger
It is possible to configure each input for the Schmitt trigger. By default the Schmitt trigger is active. Disabling the Schmitt
trigger is requested when using the QTouch
™
Library.
23.5.14 Register Write Protection
To prevent any single software error from corrupting PIO behavior, certain registers in the address space can be write-
protected by setting the WPEN bit in the “PIO Write Protection Mode Register” (PIO_WPMR).
If a write access to a write-protected register is detected, the WPVS flag in the “PIO Write Protection Status Register”
(PIO_WPSR) is set and the field WPVSRC indicates the register in which the write access has been attempted.
The WPVS bit is automatically cleared after reading the PIO_WPSR.
The following registers can be write-protected:
 “PIO Enable Register”
 “PIO Disable Register”
 “PIO Output Enable Register”
 “PIO Output Disable Register”
 “PIO Input Filter Enable Register”
 “PIO Input Filter Disable Register”
 “PIO Multi-driver Enable Register”
 “PIO Multi-driver Disable Register”
 “PIO Pull-Up Disable Register”
 “PIO Pull-Up Enable Register”
 “PIO Peripheral ABCD Select Register 1”
 “PIO Peripheral ABCD Select Register 2”
 “PIO Output Write Enable Register”
 “PIO Output Write Disable Register”
 “PIO Pad Pull-Down Disable Register”
 “PIO Pad Pull-Down Status Register”
Programmable Delay Line
PIO
PAout[0]
PAin[0]
Programmable Delay Line
Programmable Delay Line
PAout[1]
PAin[1]
PAout[2]
PAin[2]
DELAY2
DELAY1
DELAYx
