48.15.1.2 Timing Conditions
Timings are given assuming a capacitance load on
MISO, SPCK and MOSI:
48.15.1.3 Timing Extraction

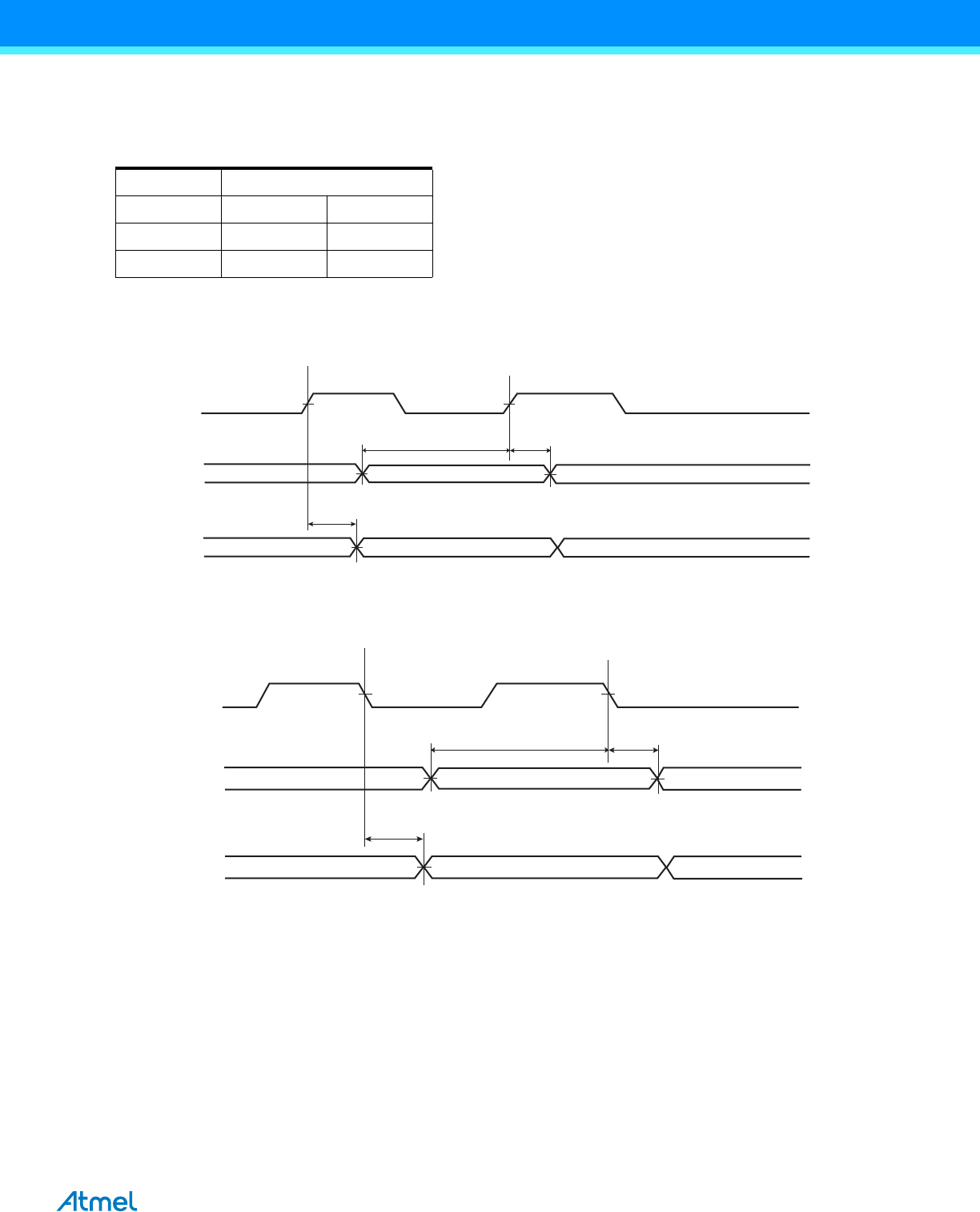

Figure 48-7. SPI Master mode 1 and 2
Figure 48-8. SPI Master mode 0 and 3
Table 48-30. Capacitance Load for MISO, SPCK and MOSI (product dependent)
Corner
Supply MAX MIN
3.3V 40 pF 5 pF
1.8V 20 pF 5 pF
SPCK
MISO
MOSI
SPI
2
SPI
0
SPI
1
SPCK
MISO
MOSI
SPI
5
SPI
3
SPI
4
