48.12 Core Power Supply POR Characteristics
48.12.1 Power Sequence Requirements
The AT91 board design must comply with the power-up guidelines below to guarantee reliable operation of the device.
Any deviation from these sequences may prevent the device from booting.
48.12.2 Power-Up Sequence

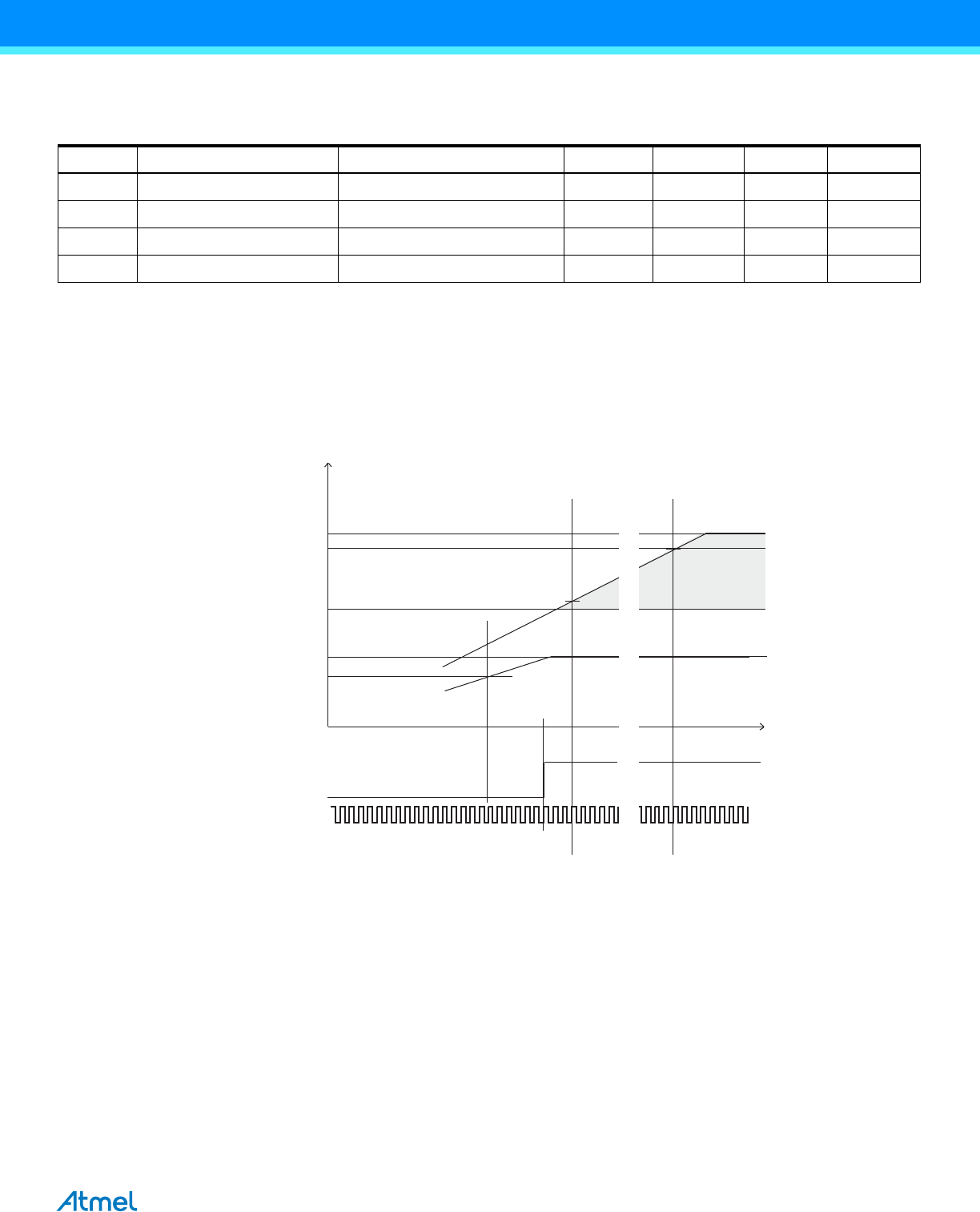

Figure 48-4. VDDCORE and VDDIO Constraints at Startup
VDDCORE and VDDBU are controlled by internal POR (Power-On-Reset) to guarantee that these power sources reach
their target values prior to the release of POR.
VDDIOP must be Vih (refer to DC characteristics, Table 48-2, for more details), (Tres + T1) at the latest, after
VDDCORE has reached
V
th+
.
VDDIOM must reach Voh (refer to DC characteristics, Table 48-2, for more details), (Tres +T1 +T2) at the latest,
after VDDCORE has reached
V
th+
T
RES
is a POR characteristic
T1 = 3 x T
SLCK
T2 = 16 x T
SLCK
Table 48-23. Power-On-Reset Characteristics
Symbol Parameter Conditions Min Typ Max Units
V
th+
Threshold Voltage Rising Minimum Slope of +2.0V/30ms 0.5 0.7 0.89 V
V
th-
Threshold Voltage Falling 0.4 0.6 0.85 V
T
RES
Reset Time 30 70 130 µs
Idd Current consumption After T
RES
37µA
VDD (V)
Core Supply POR Output
VDDIOtyp
Vih
Vt h+
t
SLCK
<--- Tres --->
VDDIO > Vih
VDDCORE
VDDIO
< T1 >
VDDCOREtyp
Voh
VDDIO > Voh
<------------ T2----------->
