32
AT89C51ID2
4289C–8051–11/05
Reset Output
As detailed in Section “Hardware Watchdog Timer”, page 107, the WDT generates a 96-
clock period pulse on the RST pin. In order to properly propagate this pulse to the rest of
the application in case of external capacitor or power-supply supervisor circuit, a 1 kΩ
resistor must be added as shown Figure 9.

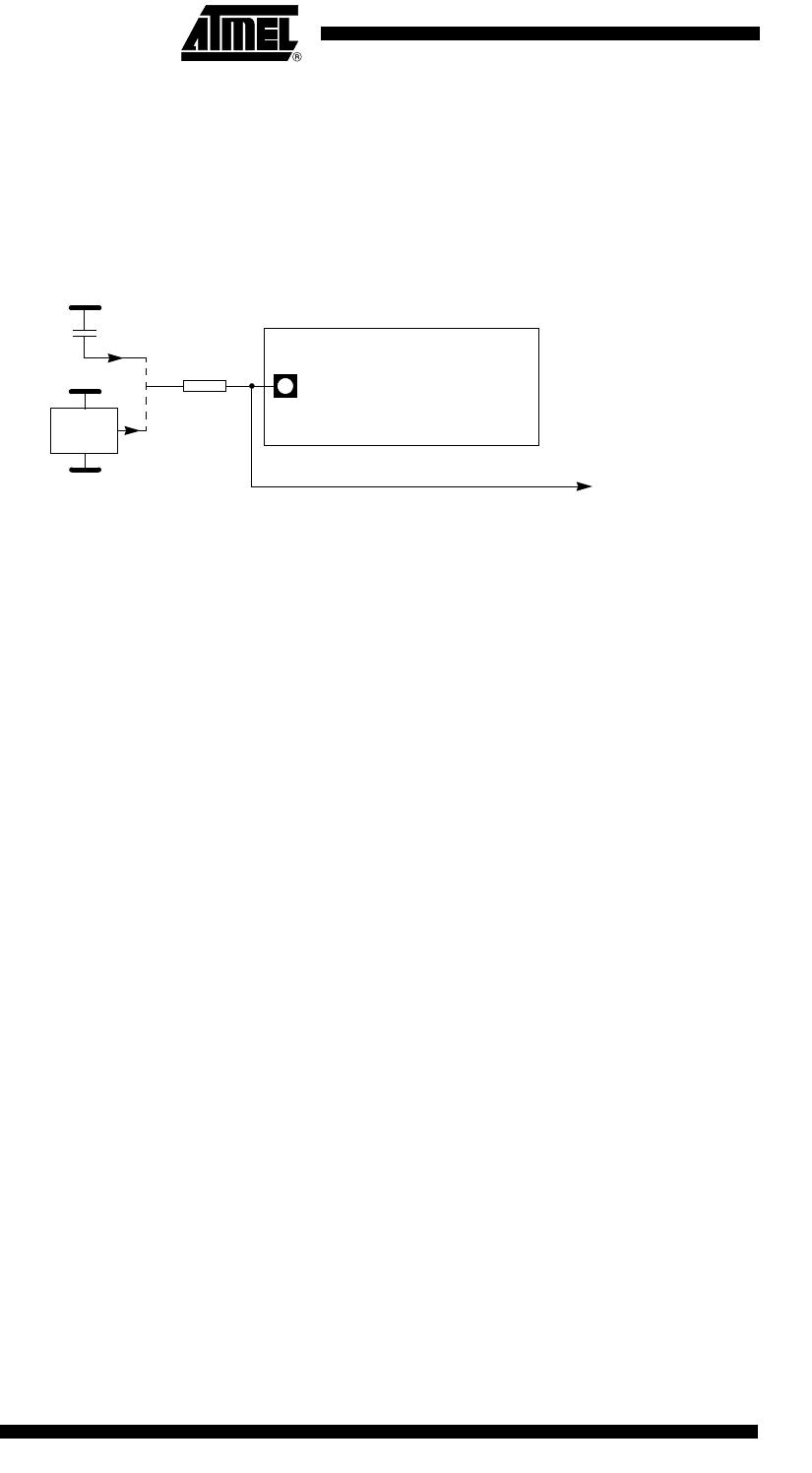

Figure 9. Recommended Reset Output Schematic
RST
VDD
+
VSS
VDD
RST
1K
To other
on-board
circuitry
AT89C51ID2
